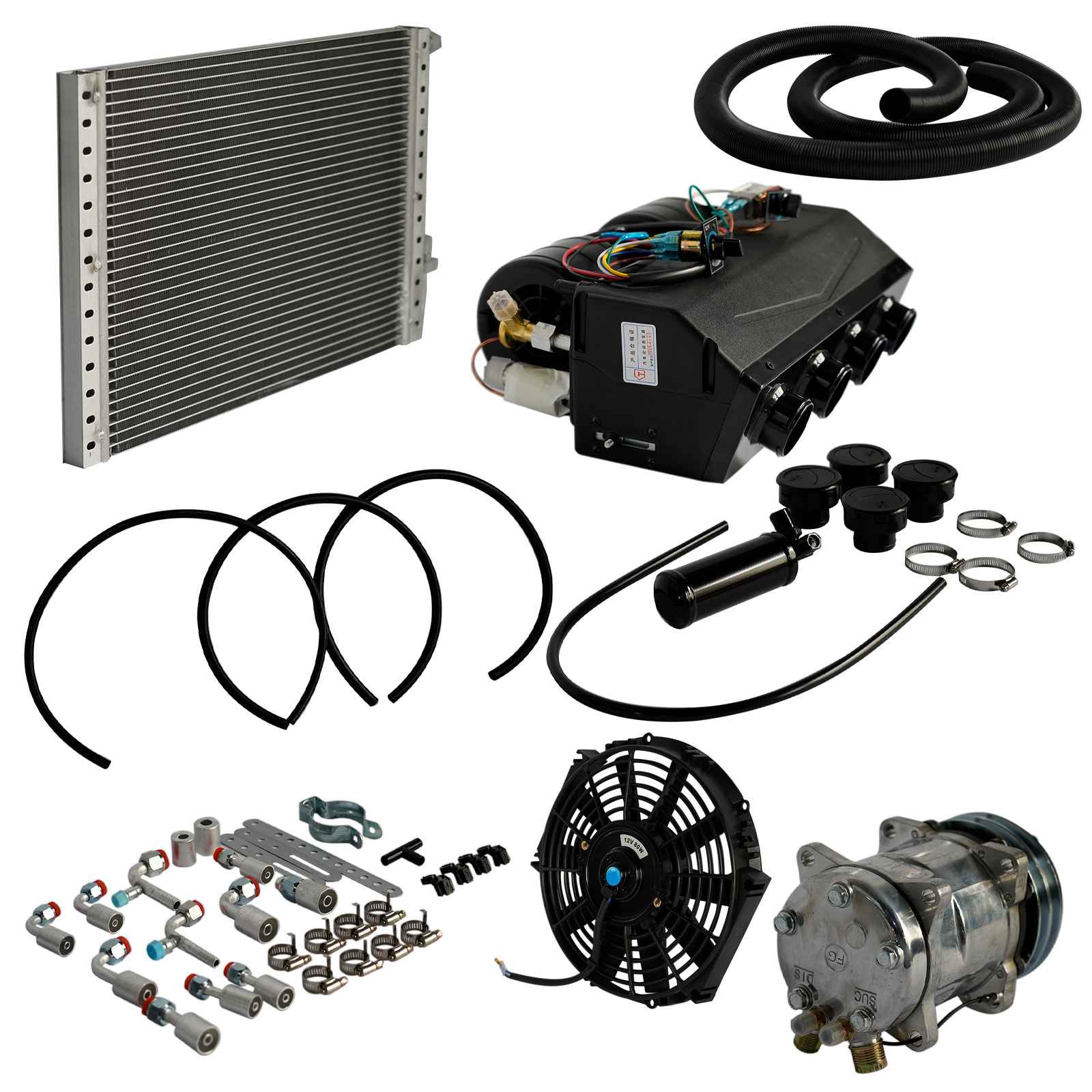

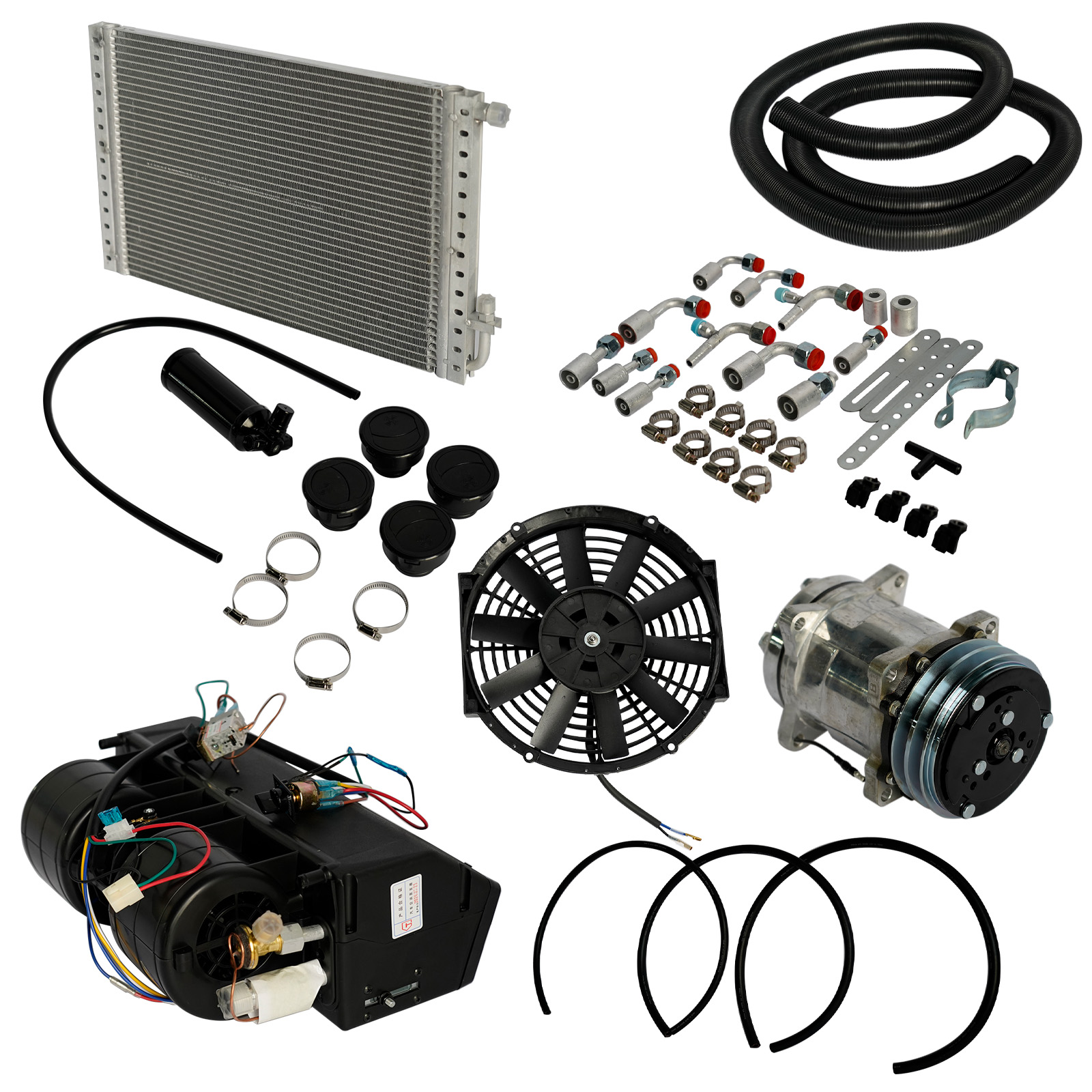

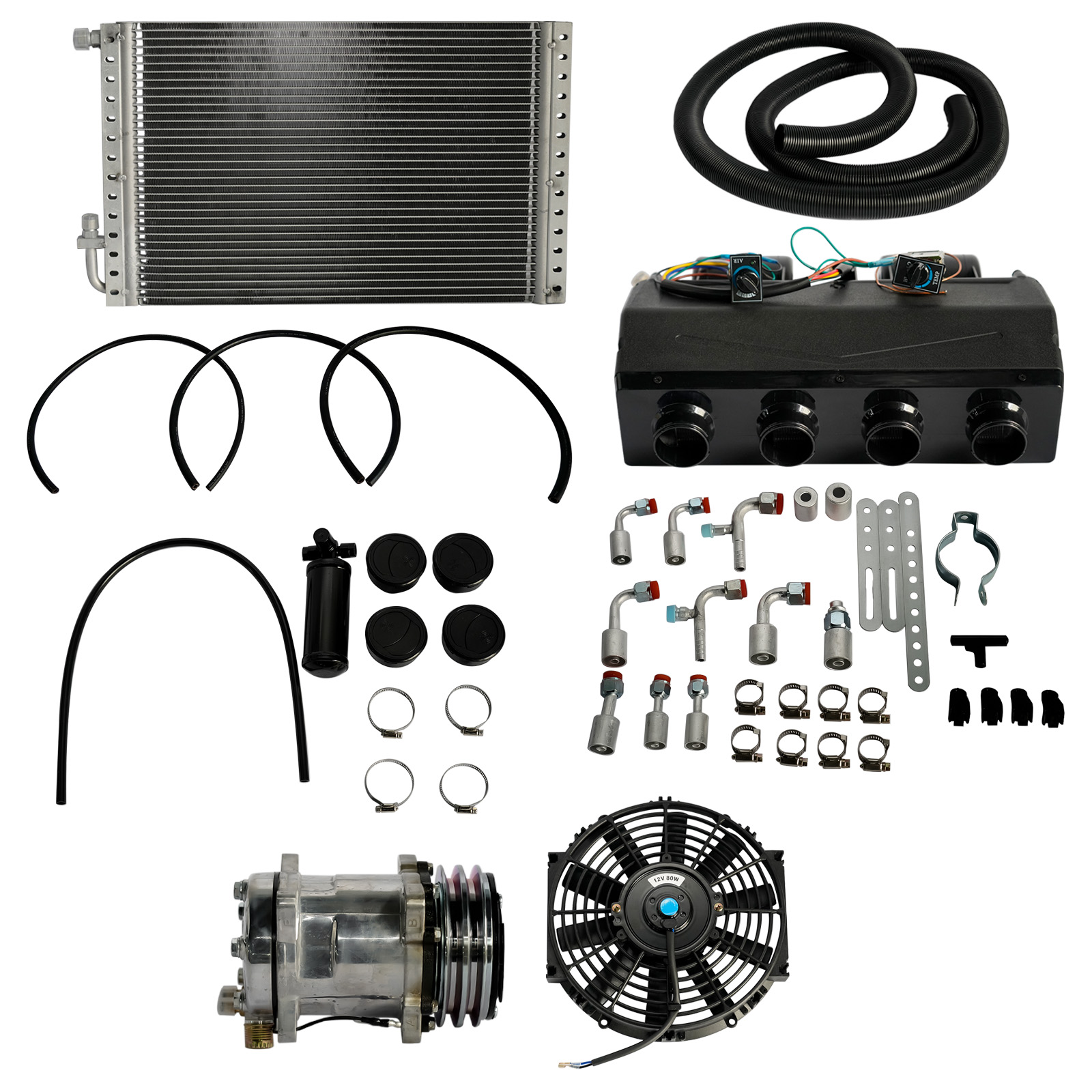

Universal Air Conditioning Kit Under Dash E-404-000 A/C 12V with Quick Fit System Cool Only

SpecificationModel: E-404-000

Cool Only

32 pass 4way all aluminum coil

Expansion valve 1.5 Ton

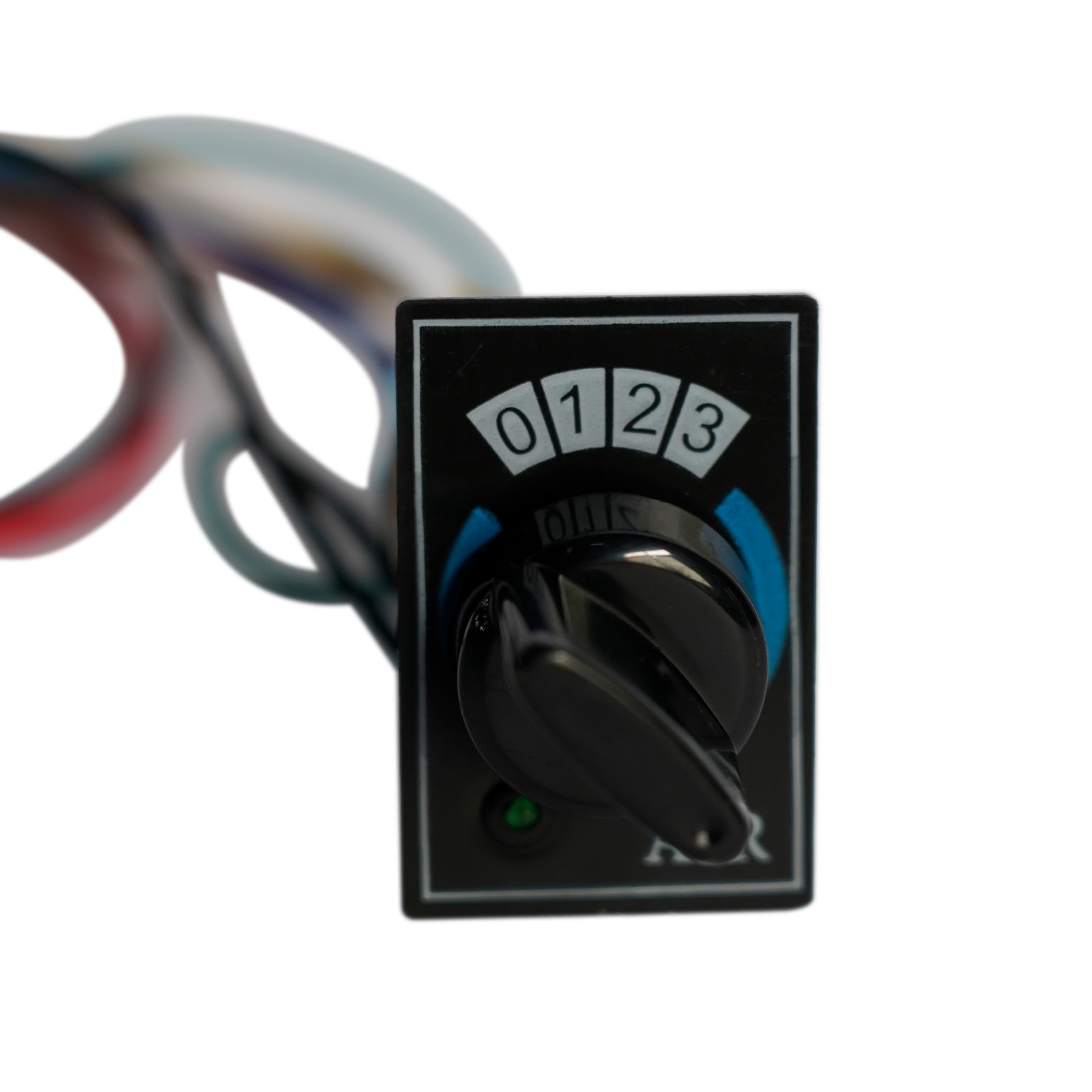

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHALF BLOWER MOTOR

13700BTU capacity 359 CFM

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style 2A Groove Pulley 12v coil

Also available 8PK Pulley

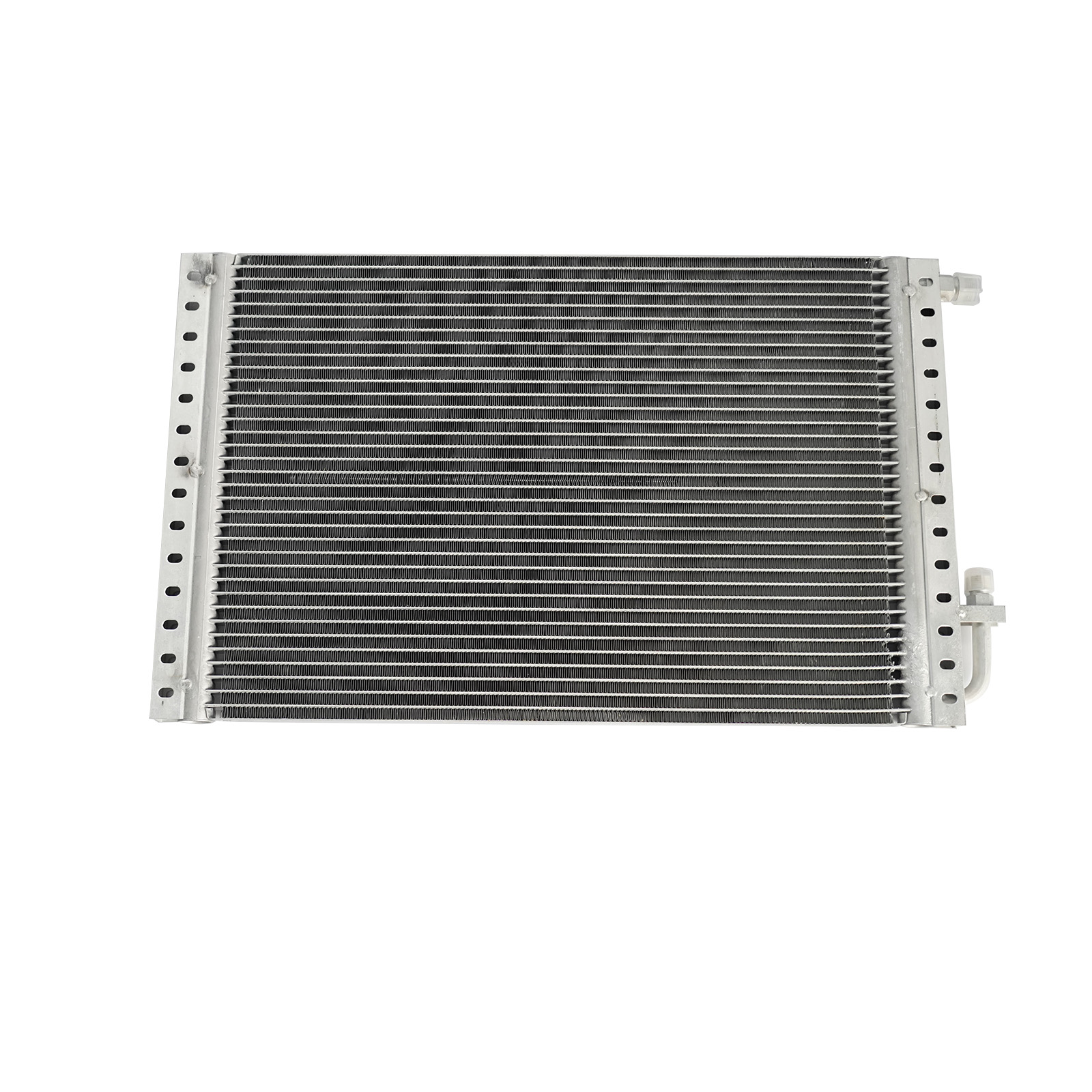

Condenser

Model: CPF142018

PARALLEL FLOW (micro-tube technology)

14"H X 20"L .70"(18mm)W

4 Rails Aluminum

#8 O-ring IN #6 O-ring OUT

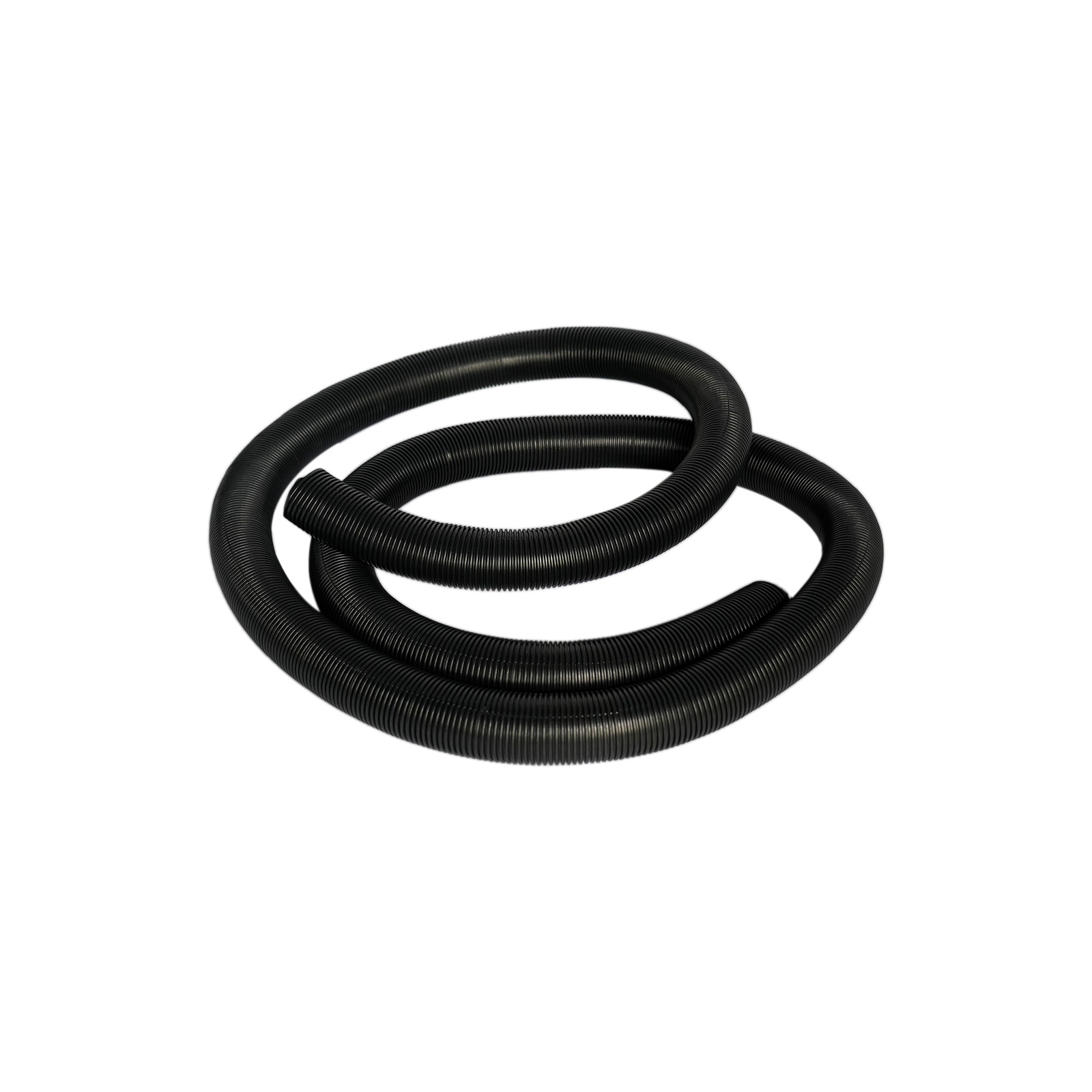

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

#6 5/16 = 6'feet

#8 13/32 = 4'feet

#10 1/2 = 5' feet

Fitting Set

Model: FTSET404

1-N° 10 90° O-ring Fitting w/R134a Serv Port

1- N° 8 90° O-ring Fitting w/R134a Serv Port

1- N° 10 Straight O-ring Fitting

1- N° 10 90° O-ring Fitting

2- N° 6 90° O-ring Fitting

1- N° 8 90° O-ring Fitting

2- N° 6 Straight O-ring Fitting

Set include metal FERRULES and CLAMPS

Filter Drier

Model: FD100A ALUMINUM

Model: FD100B BLACK

2½"Diameter 7½"Hight Sight Glass

#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)

Condenser Fan

Model: CF1212

12" Diameter

12 Volts 80W 6 AMP

Reversible Puller or Pusher

4 Mounting Brackets included

Package Includes

1x A/C KIT
