TBI to LSx Swap Fuel Pump + 58PSI Regulator For all LS Series Motors 1982-1995

OE Number

EP381,360700,58PSI

Will fit Following Models

Undertaking an LS series engine swap on a GM TBI truck, van or SUV? This pump will not overload factory wiring nor will it overpower OE pressure regulators. Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381.

SPECIFICATIONS:
Noise Output: QUIET
Condition: 100% BRAND NEW

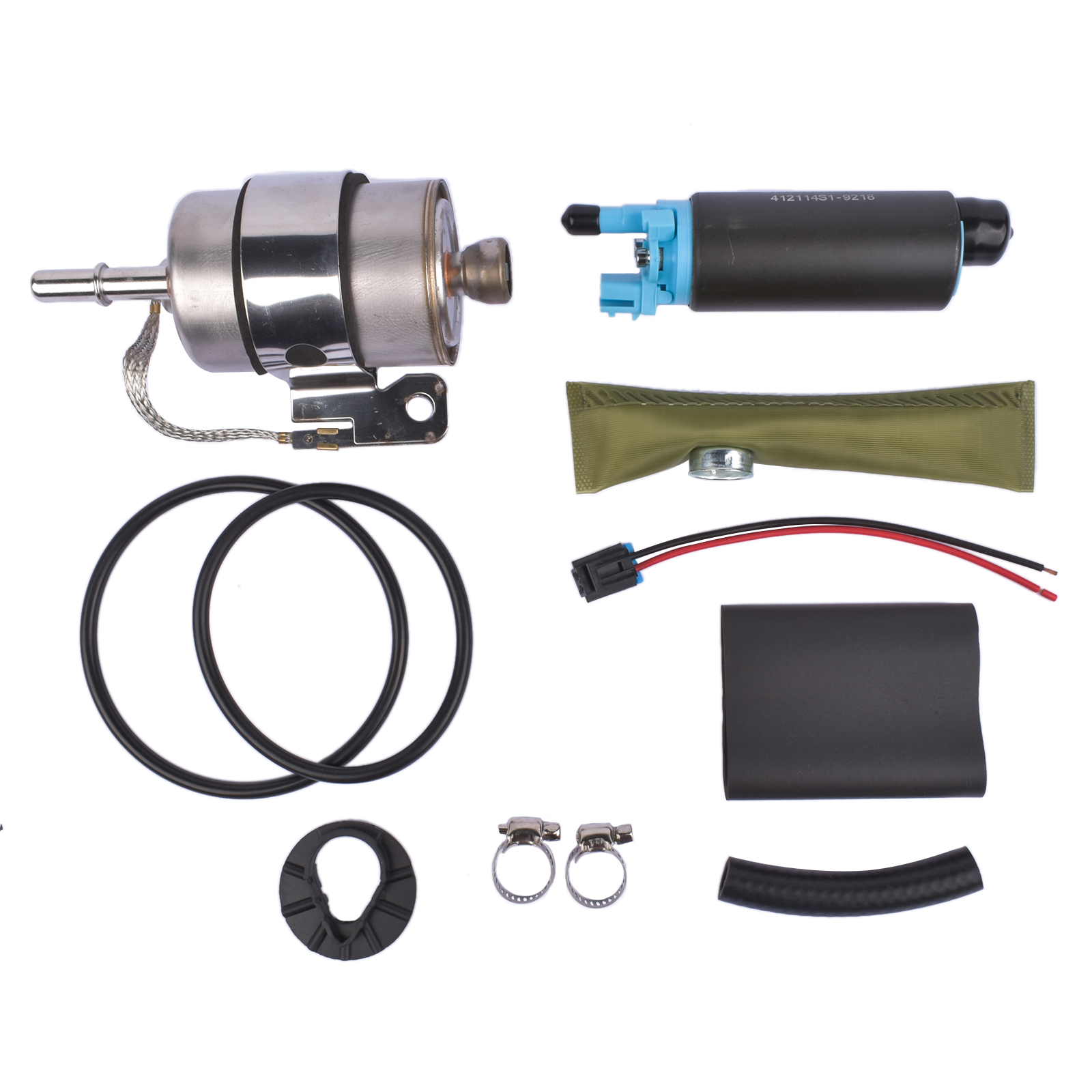

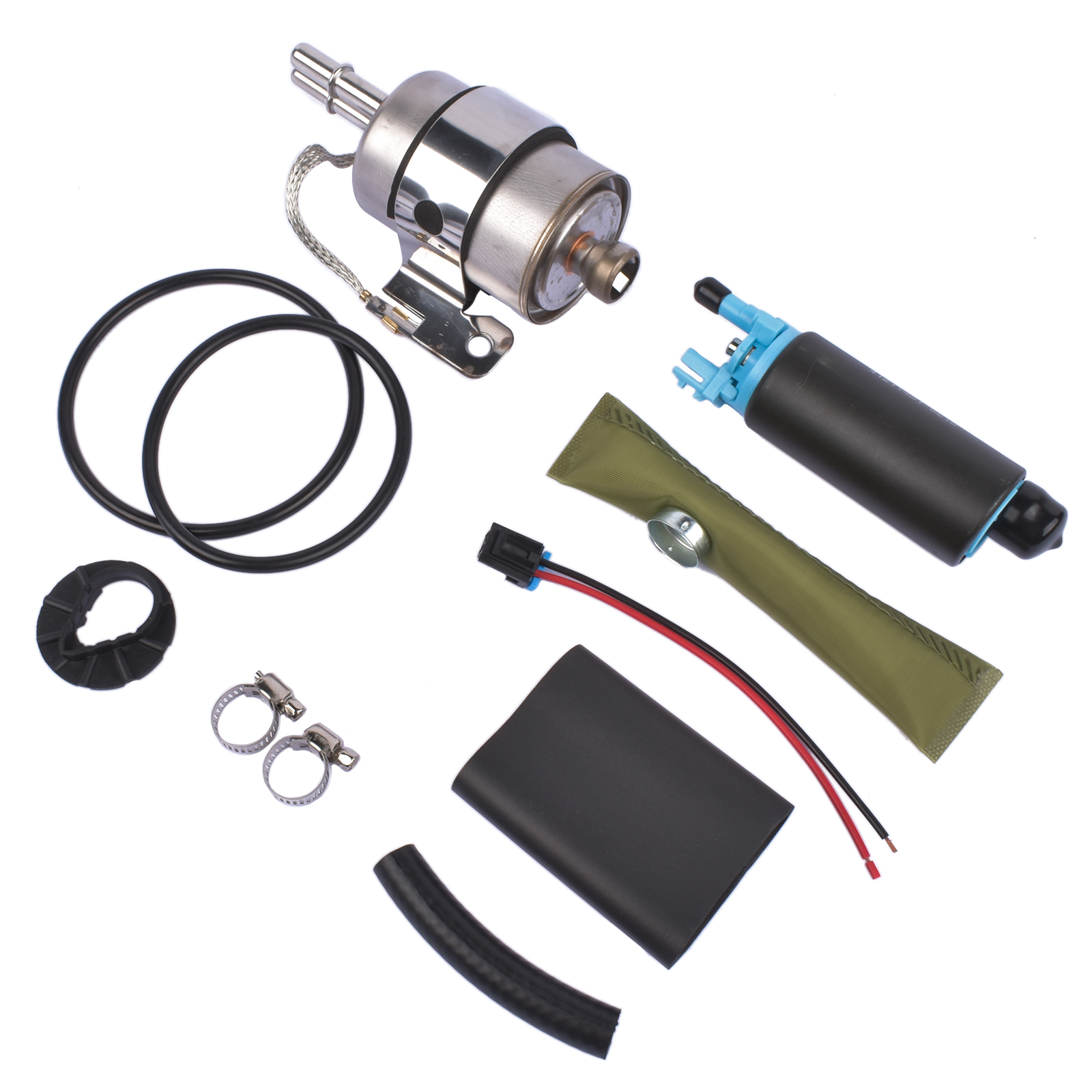

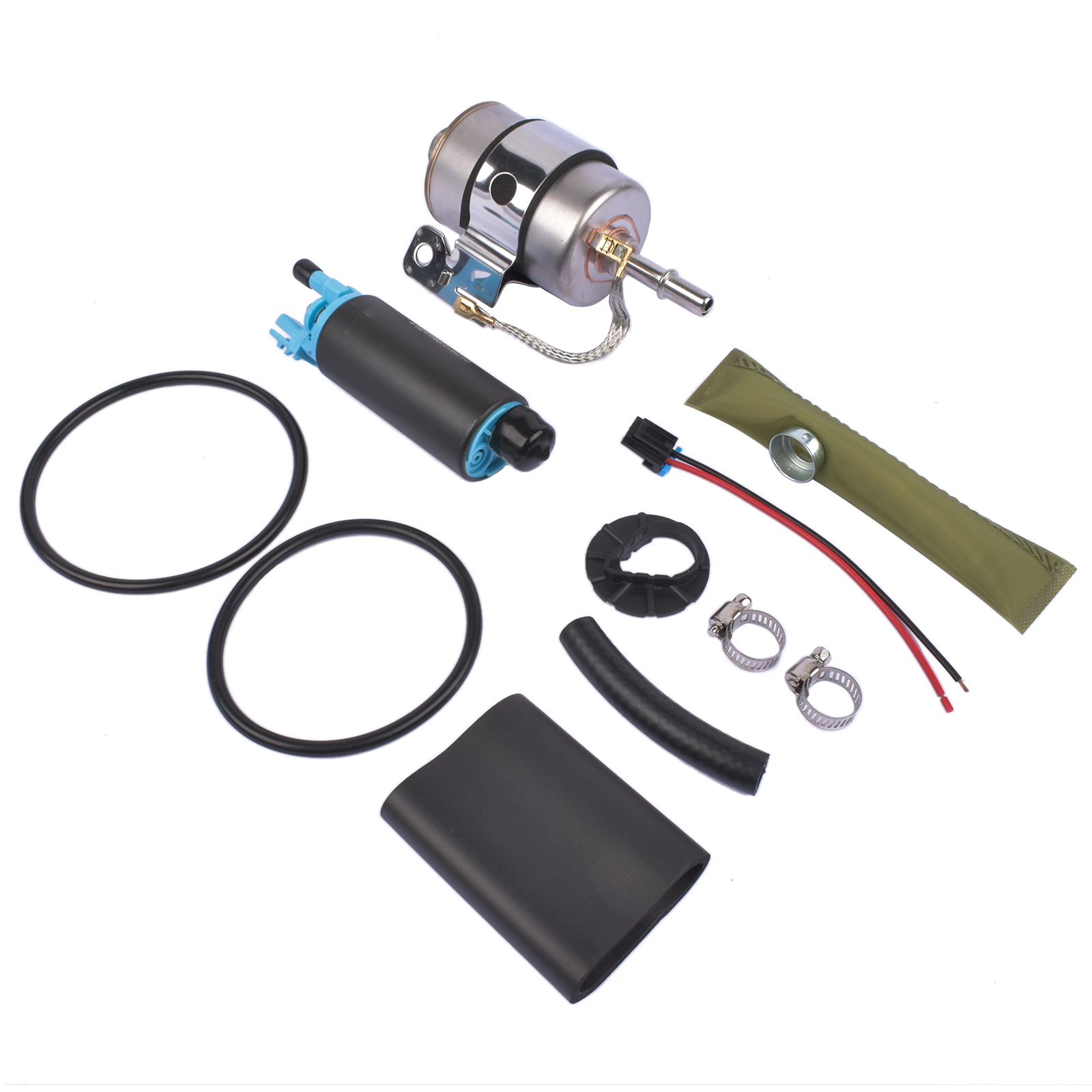

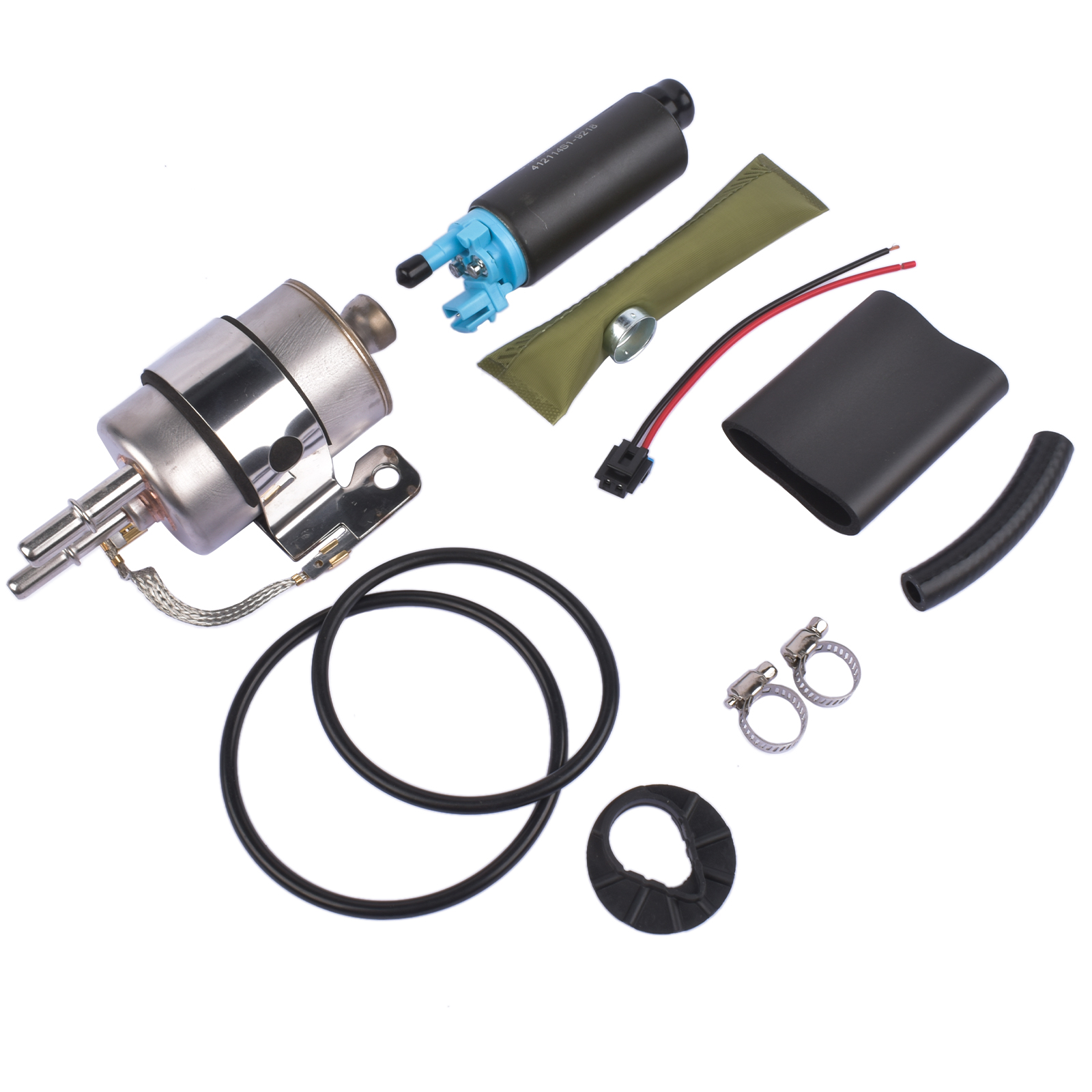

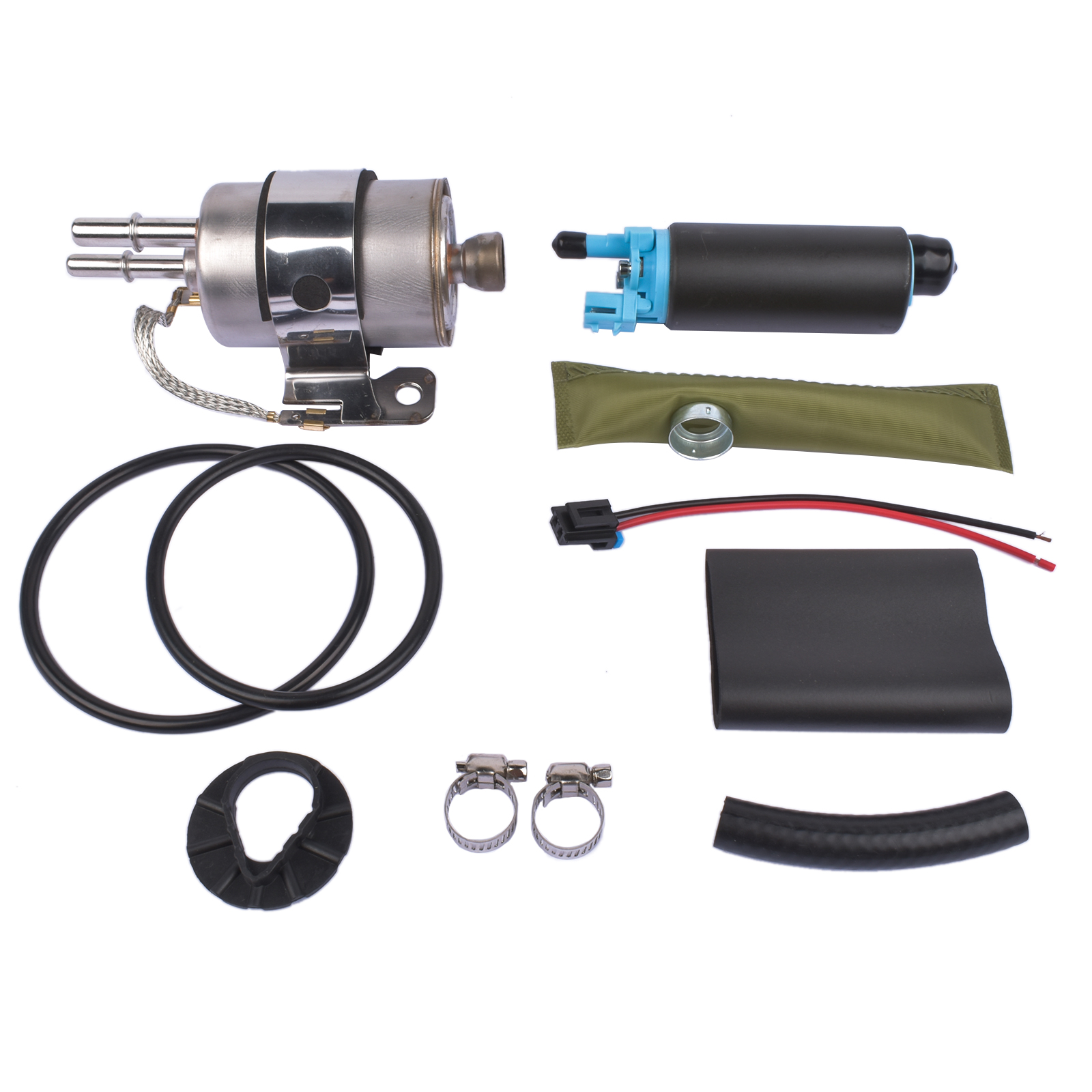

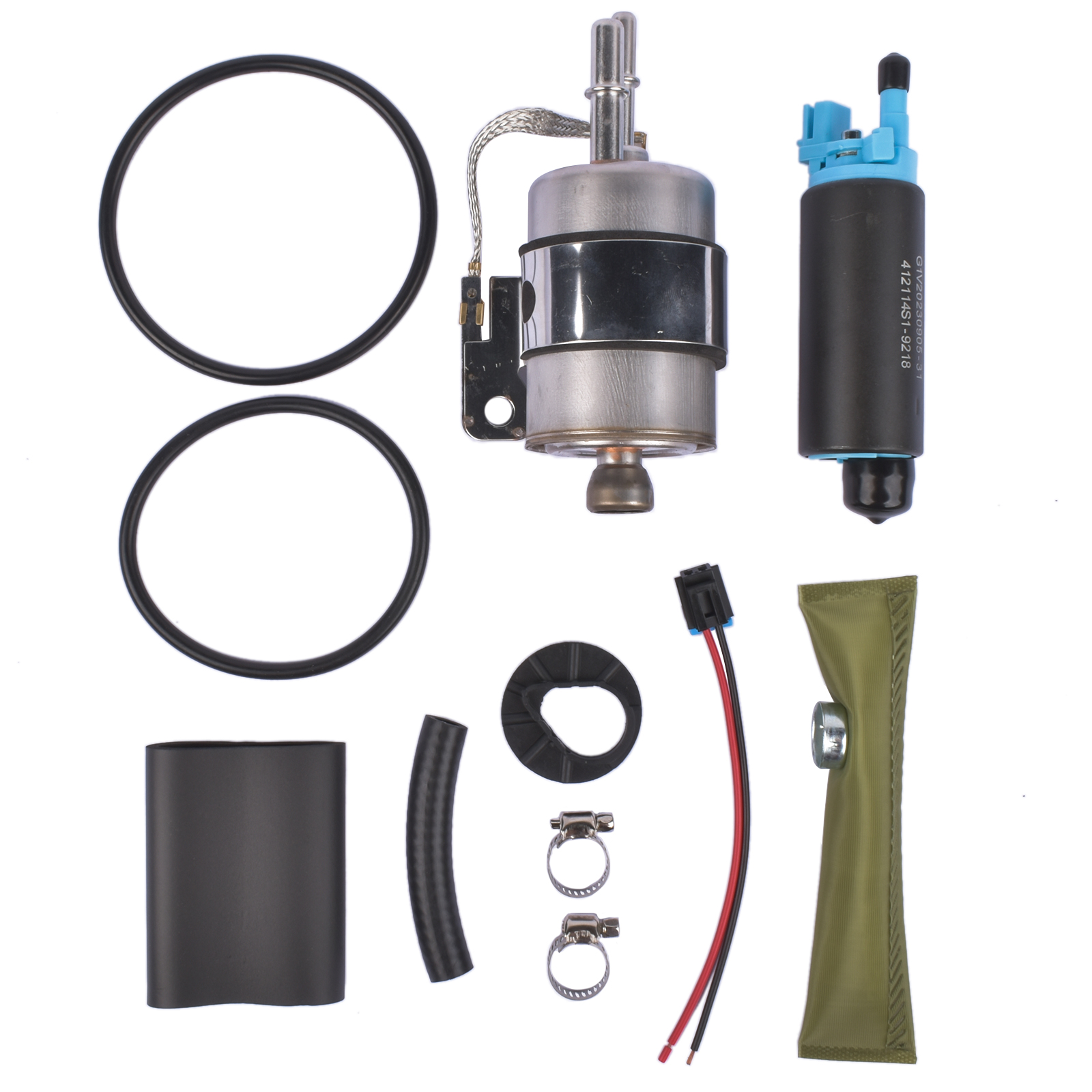

Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi

FEATURES:
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps

DIMENSIONS:
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"

Package Includes:

1x Fuel Pump TBI to LSx Swap + 58PSI Regulator
