Rear Left & Right Air Ride Suspension Kit

Introduction:

Car air suspension strut is a strut with an air spring incorporated into it. The air spring or airbag is inflated or deflated to adjust the height of the vehicle. A faulty strut may cause your vehicle to roll when you press your brakes, squat when you accelerate, or lean to one side while you’re driving.



Fitment:

For Harley all touring models 1994-2022

NOT Fit Electra Glide Ultra Classic Limited Low



Feature:

1. 100% Air Tightiness testing

2. 24 hours air tightness test ≤0.02MPa

3. Sturdy & Durable Material

4. Built to strict quality control standards

5. CNC Machined Components

6. Condition: Brand New

7. Placement on Vehicle: Rear left and right

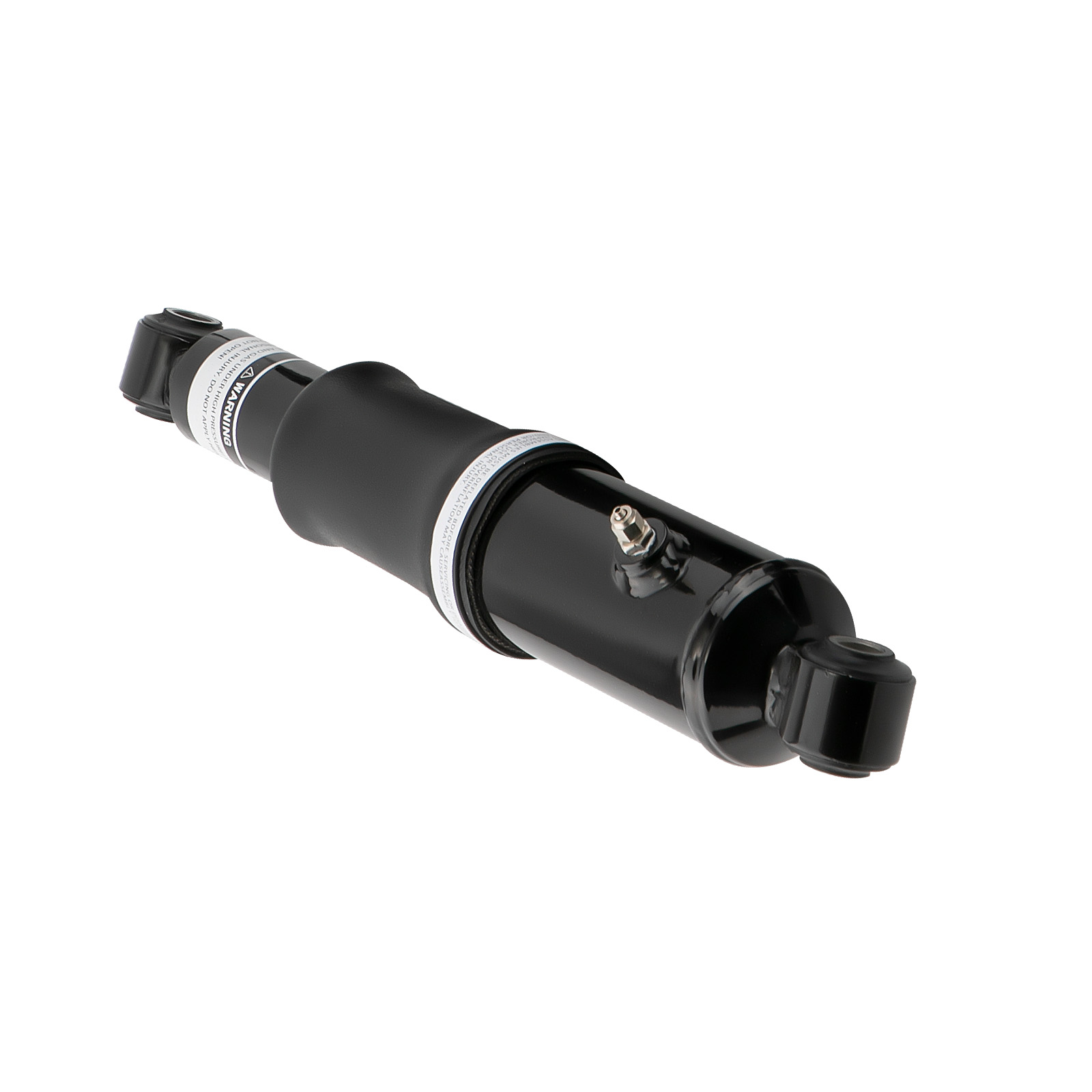

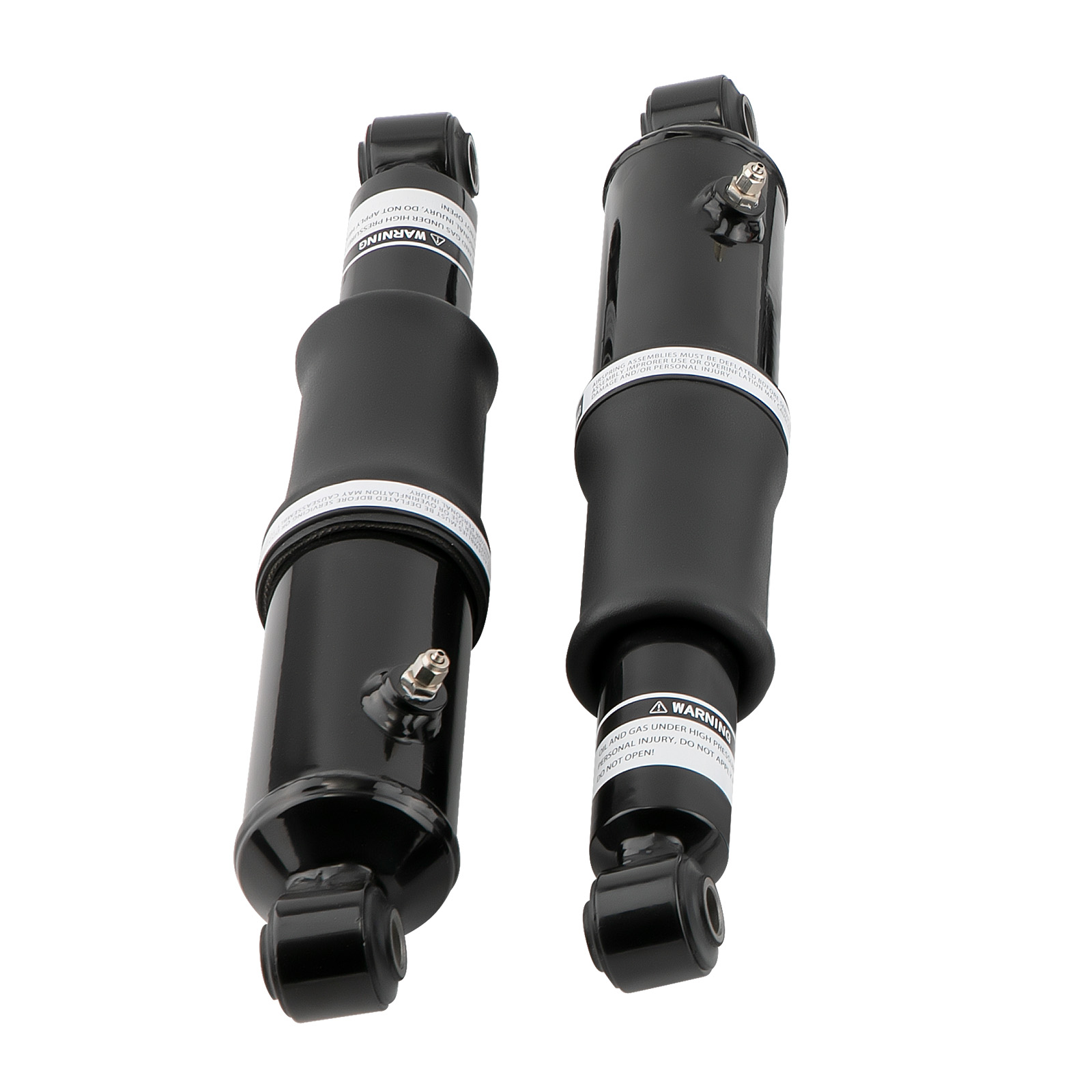

Air shocks:

Stroke:100mm

Max. Extended: 400mm

Min. Compressed: 300mm

Fisheye: Ø13mm

Operating Pressure : ≤2.0Mpa

Temperature range：≤+70° , ≥-40°

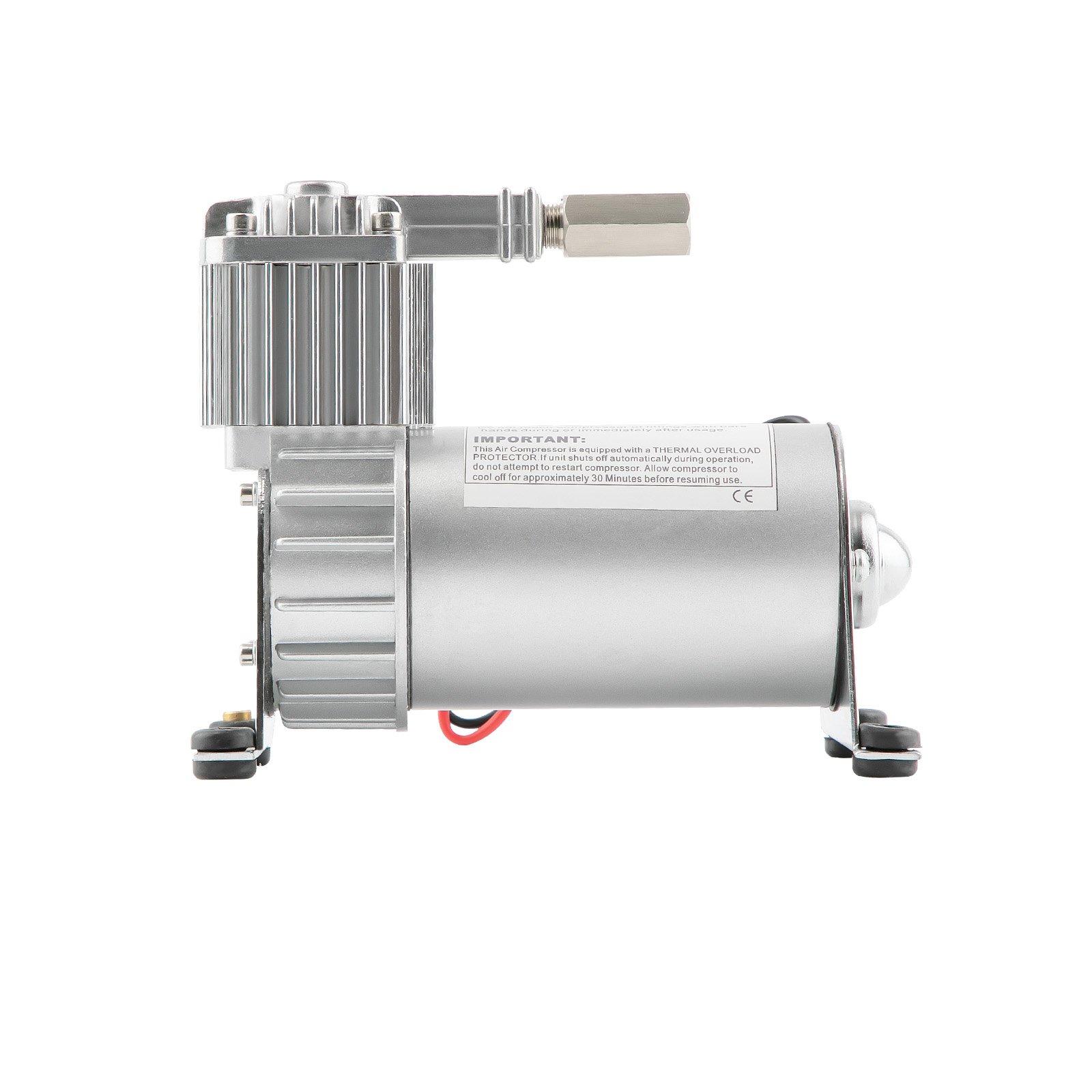

Air pump:

Power: 168W

Output Voltage: DC-12V

Maximum current: 14A

Maximum Working Voltage: 130PSI(9.1KG/c㎡)

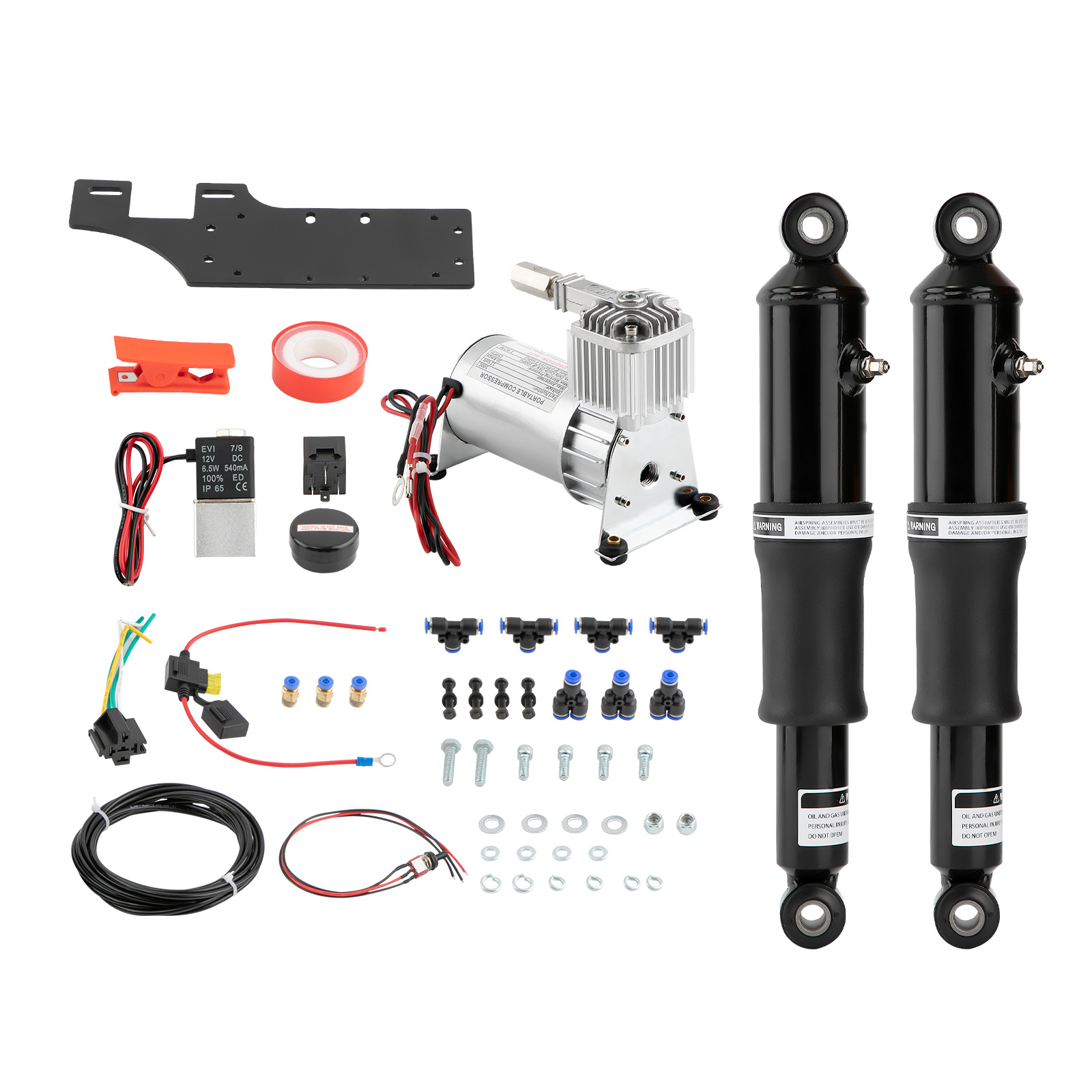

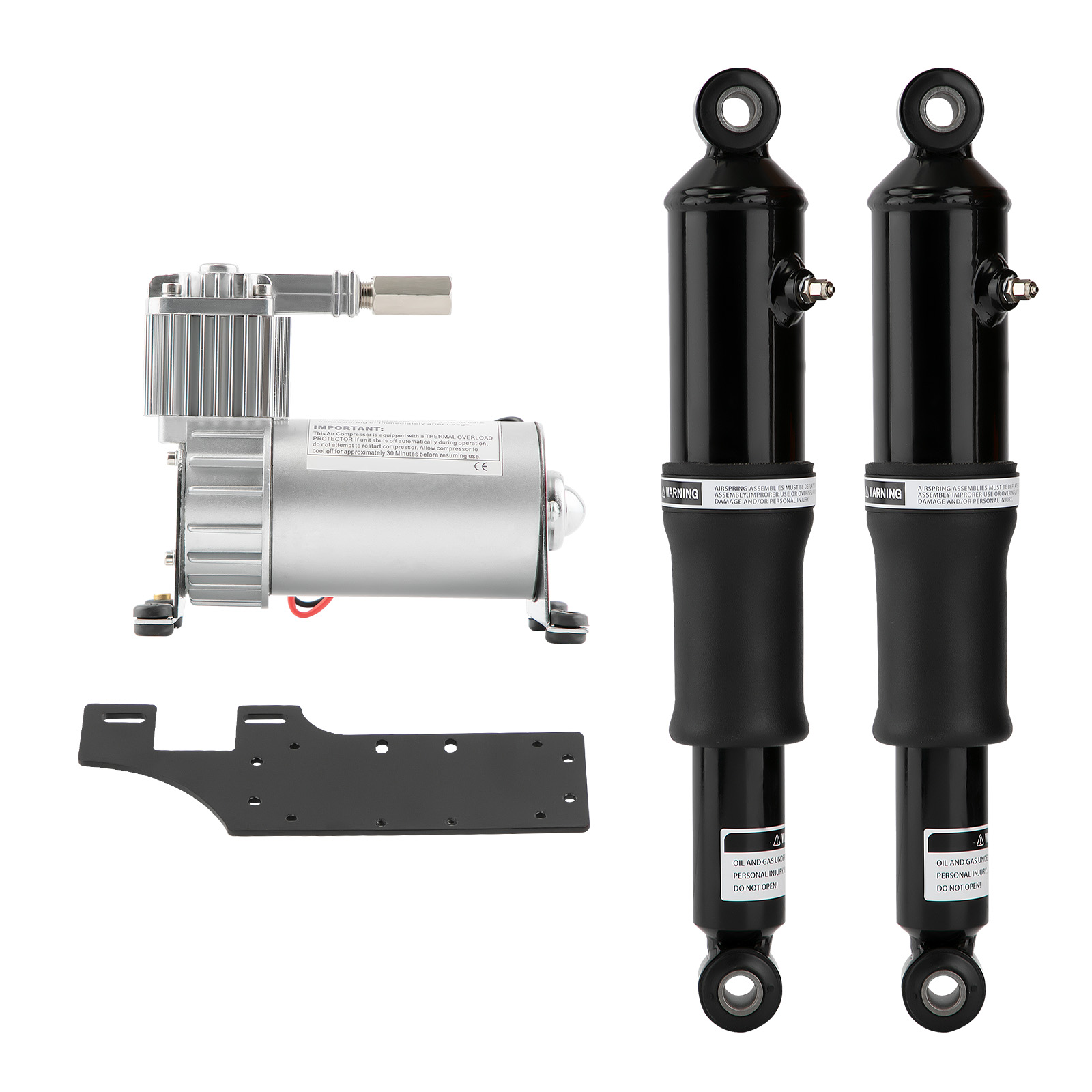

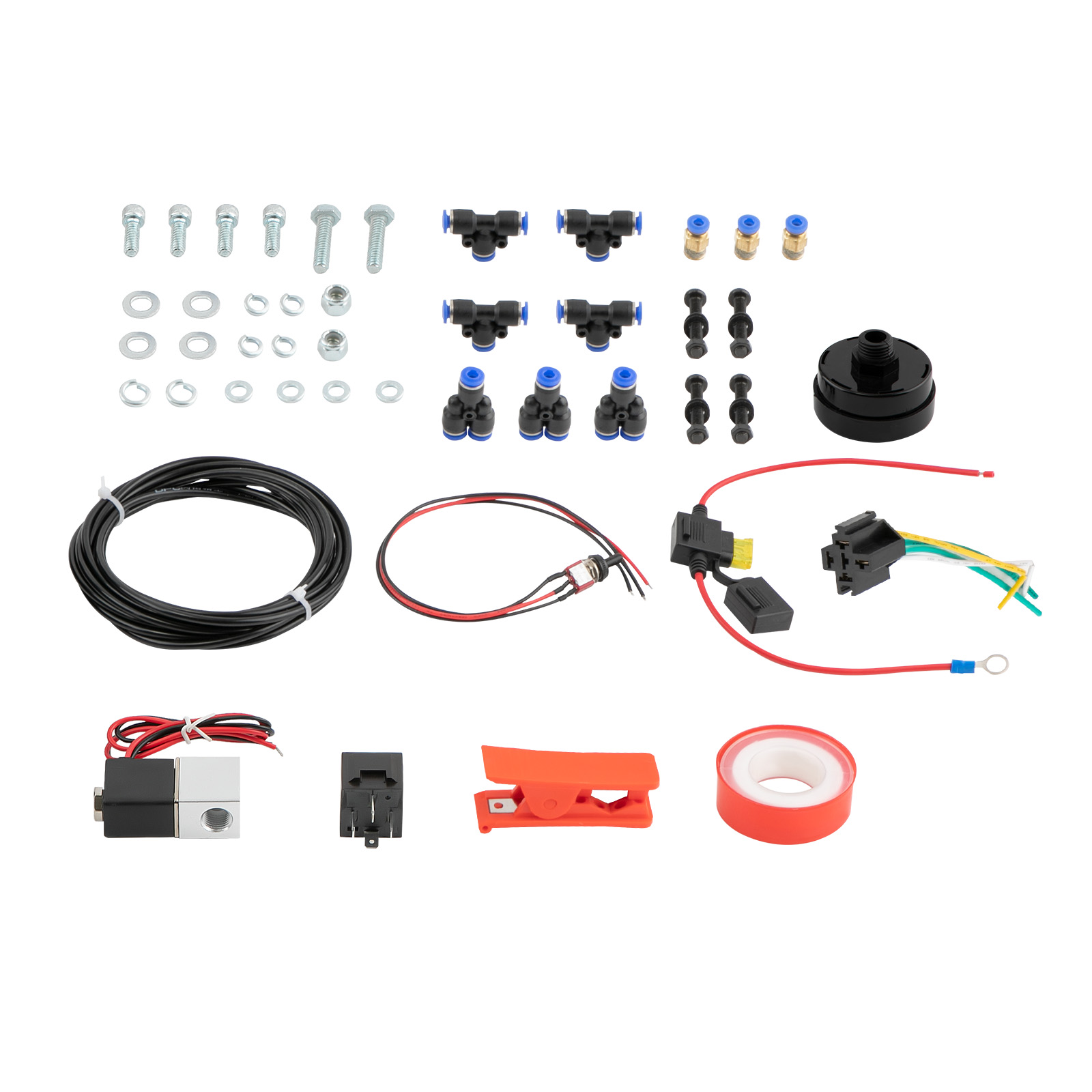

Package Includes(as the picture shows):

1x Air pump with mounting bracket

1x Relay

1x Solenoid valve

2x Air shock

1x Air line

1x Air Line Hose Cutter

1x Switch

1x 20A Fuse

Install bolts and nuts

Other Accessories



Notice:

1. Will lower 2 to 3 inches with all of the air released. After being inflated, Restore the stock ride height to ensure smooth driving.

2. Please double confim the compatibility before purchasing.

3. Professional installation is recommended.
