Rear Differential Assembly for Can-Am Commander 1000 2011-2013 800R 2012 2013

Application:

For Can-Am Commander 1000 DPS EFI 4x4: 2013

For Can-Am Commander 1000 EFI 4x4: 2011

For Can-Am Commander 1000 EFI Limited 4x4: 2012-2013

For Can-Am Commander 1000 EFI X 4x4: 2012

For Can-Am Commander 800R DPS EFI XT 4x4: 2013

For Can-Am Commander 800R EFI XT 4x4: 2012

For Can-Am Defender HD5 DPS EFI 4x4: 2018-2021

For Can-Am Defender HD5 EFI 4x4: 2017-2019

For Can-Am Outlander 1000: 2018

For Can-Am Outlander 1000R DPS EFI 4x4: 2018

For Can-Am Outlander 450 DPS EFI 4x4: 2022

For Can-Am Outlander 450 DPS EFI Hunting Edition 4x4: 2022

For Can-Am Outlander 450 DPS EFI XU 4x4: 2022

For Can-Am Outlander 450 DPS EFI: 2022-2023

For Can-Am Outlander 450 EFI 4x4: 2022

For Can-Am Outlander 450 EFI Mossy Oak: 2023

For Can-Am Outlander 450 EFI: 2022-2023

For Can-Am Outlander 450 XU EFI: 2023

For Can-Am Outlander 500 EFI XT 4x4: 2013

For Can-Am Outlander 570 DPS EFI 4x4: 2022

For Can-Am Outlander 570 DPS EFI Hunting Edition 4x4: 2022

For Can-Am Outlander 570 DPS EFI X MR 4x4: 2021-2022

For Can-Am Outlander 570 DPS EFI XT 4x4: 2022

For Can-Am Outlander 570 DPS EFI XU 4x4: 2022

For Can-Am Outlander 570 DPS EFI: 2021-2023

For Can-Am Outlander 570 EFI 4x4: 2022

For Can-Am Outlander 570 EFI Mossy Oak: 2023

For Can-Am Outlander 570 EFI MR 4x4: 2022

For Can-Am Outlander 570 EFI MR: 2022-2023

For Can-Am Outlander 570 EFI X MR: 2023

For Can-Am Outlander 570 EFI XT: 2023

For Can-Am Outlander 570 EFI XU: 2023

For Can-Am Outlander 570 EFI: 2022-2023

For Can-Am Outlander 650 EFI X MR 4x4: 2014

For Can-Am Outlander Max 450 DPS EFI 4x4: 2022

For Can-Am Outlander Max 450 DPS EFI: 2022-2023

For Can-Am Outlander Max 450 EFI 4x4: 2022

For Can-Am Outlander Max 450 EFI: 2022-2023

For Can-Am Outlander Max 570 DPS EFI 4x4: 2022

For Can-Am Outlander Max 570 DPS EFI XT 4x4: 2022

For Can-Am Outlander Max 570 DPS EFI: 2022-2023

For Can-Am Outlander Max 570 EFI 4x4: 2022

For Can-Am Outlander Max 570 EFI XT: 2023

For Can-Am Outlander Max 570 EFI: 2022-2023

For Can-Am Outlander Max 800R DPS EFI 4x4: 2015

For Can-Am Outlander Max 850 DPS EFI XT 4x4: 2018

For Can-Am Renegade 800R EFI X XC 4x4: 2012

For Can-Am Traxter HD5 EFI 4x4: 2017-2018

For Can-Am Traxter HD5 EFI T Regulation 4x4: 2019-2020

For Can-Am Traxter HD5: 2017-2021

For Can-Am Traxter HD8 DPS EFI 4x4: 2020

NOTE: IT DOES NOT FIT ON 6X6 and T3 MODELS

Part Number:

703501019, 705501896, 705501419, 703500878, 705501391

705501993, 705501411, 705501506, 705501985, 705501983

708801993, 708801986, 708801896, 705502733, 705502681, 705502000

Specification:

Type: Rear Differential

Placement on Vehicle: Rear

Differential Gear Ratio: 10:36

Spline count on Input couplers: 18

Spline count on the Shaft: 24

Lubricant Used: SAE80 Hyphoid Gear Oil

Condition: Brand New

Package weight(kg): 6.7

Features:

1. The differential can adjust the speed difference between front and rear wheels, so that our vehicle curve driving rotation speed to maintain basic consistency.

2. The differential has wear resistance and high bearing capacity to adapt to high-speed and complex driving conditions.

3. The differential can be automatically adjusted according to road conditions and driving requirements, providing the best power distribution. It is especially important in all-terrain vehicles and off-road vehicles to ensure the balanced power distribution among the tires.

4. Fully tested under extreme condition for heat resistance and long-life use.

Package Includes:

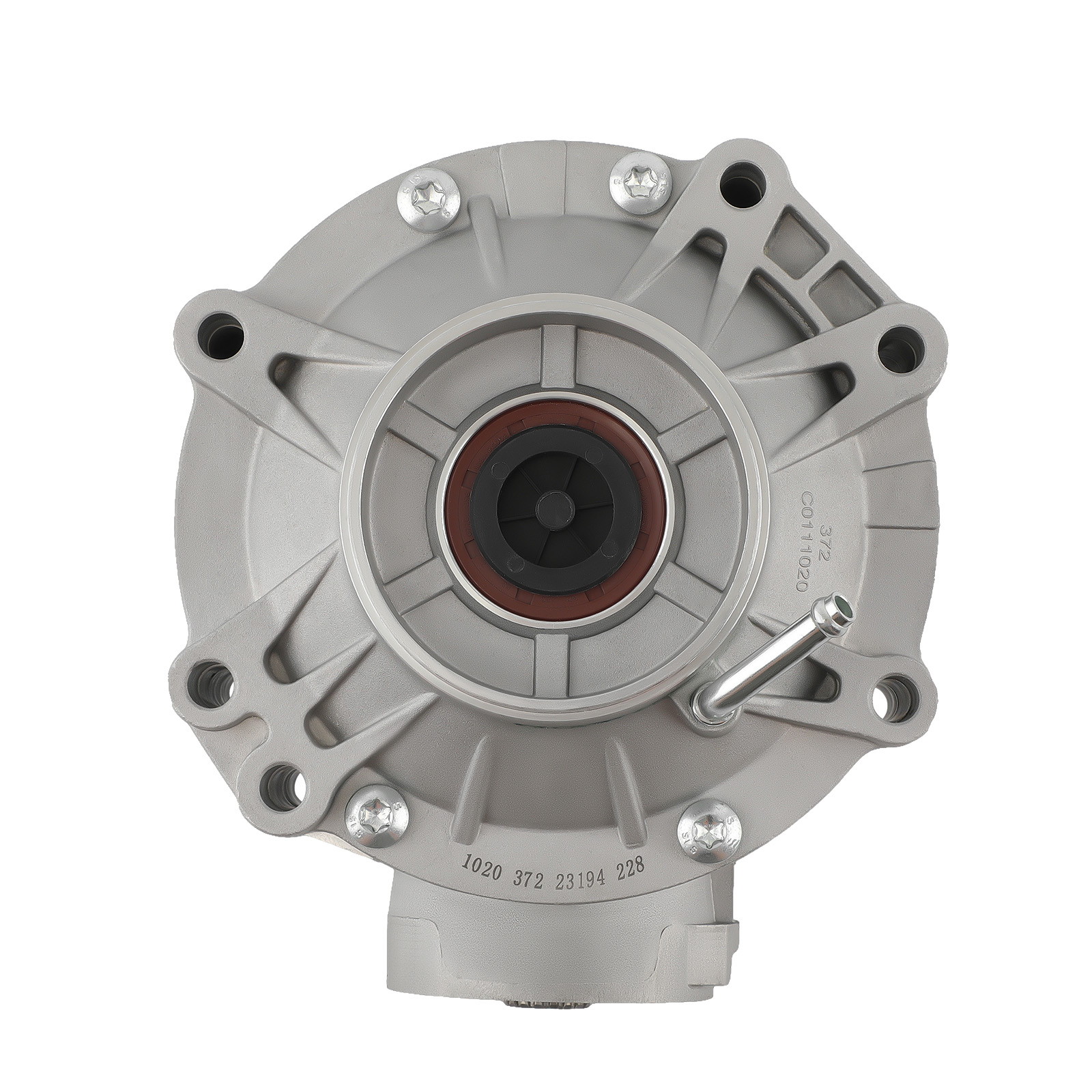

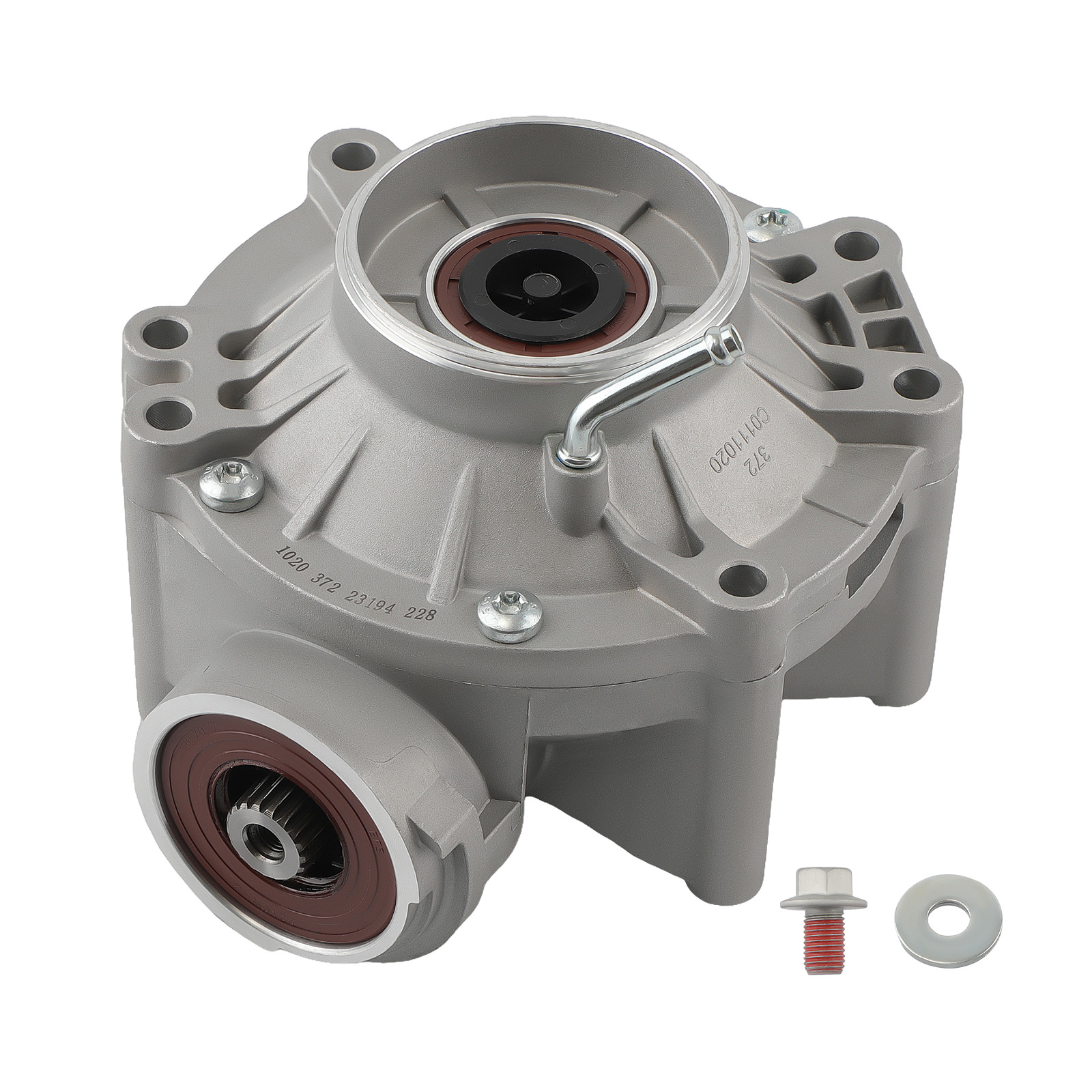

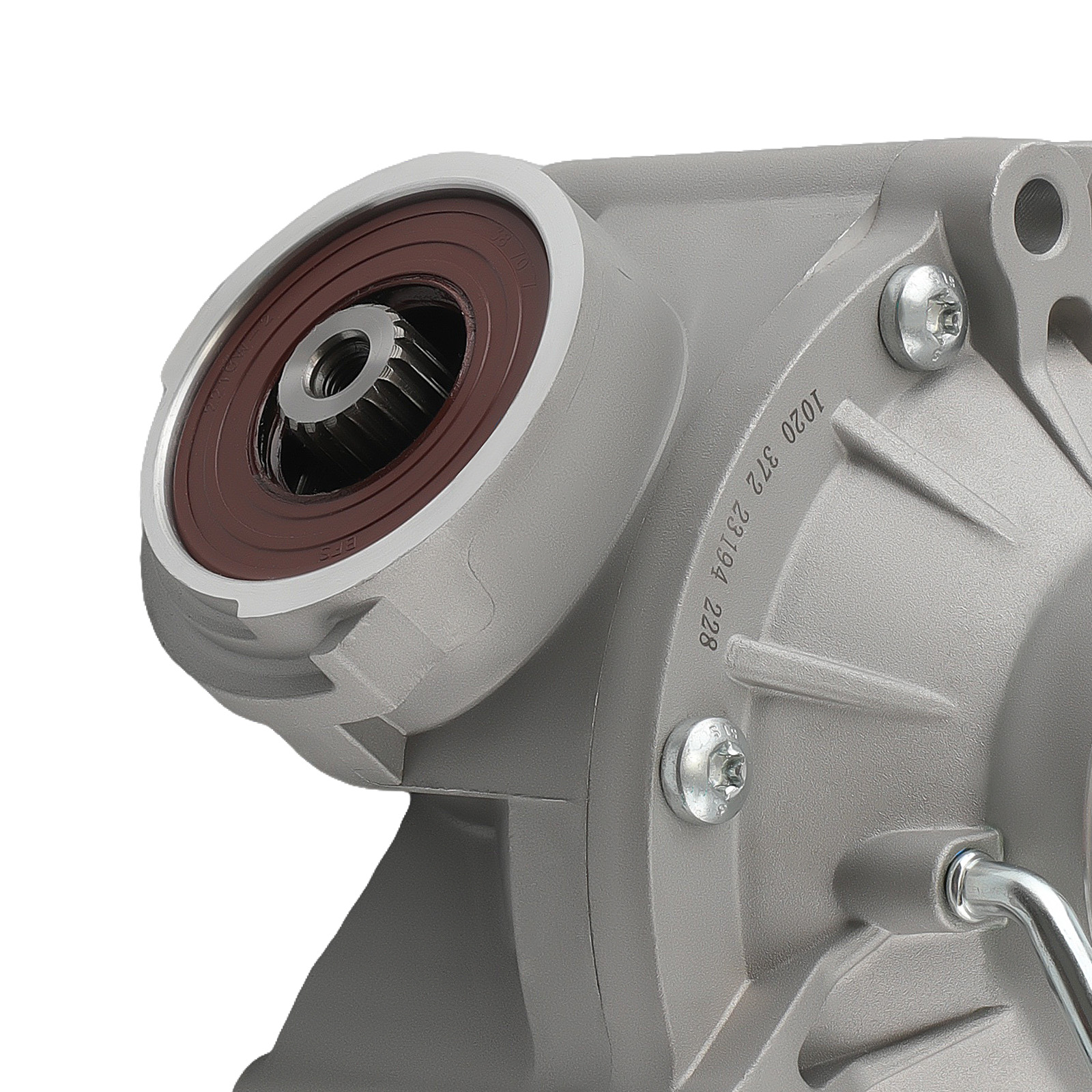

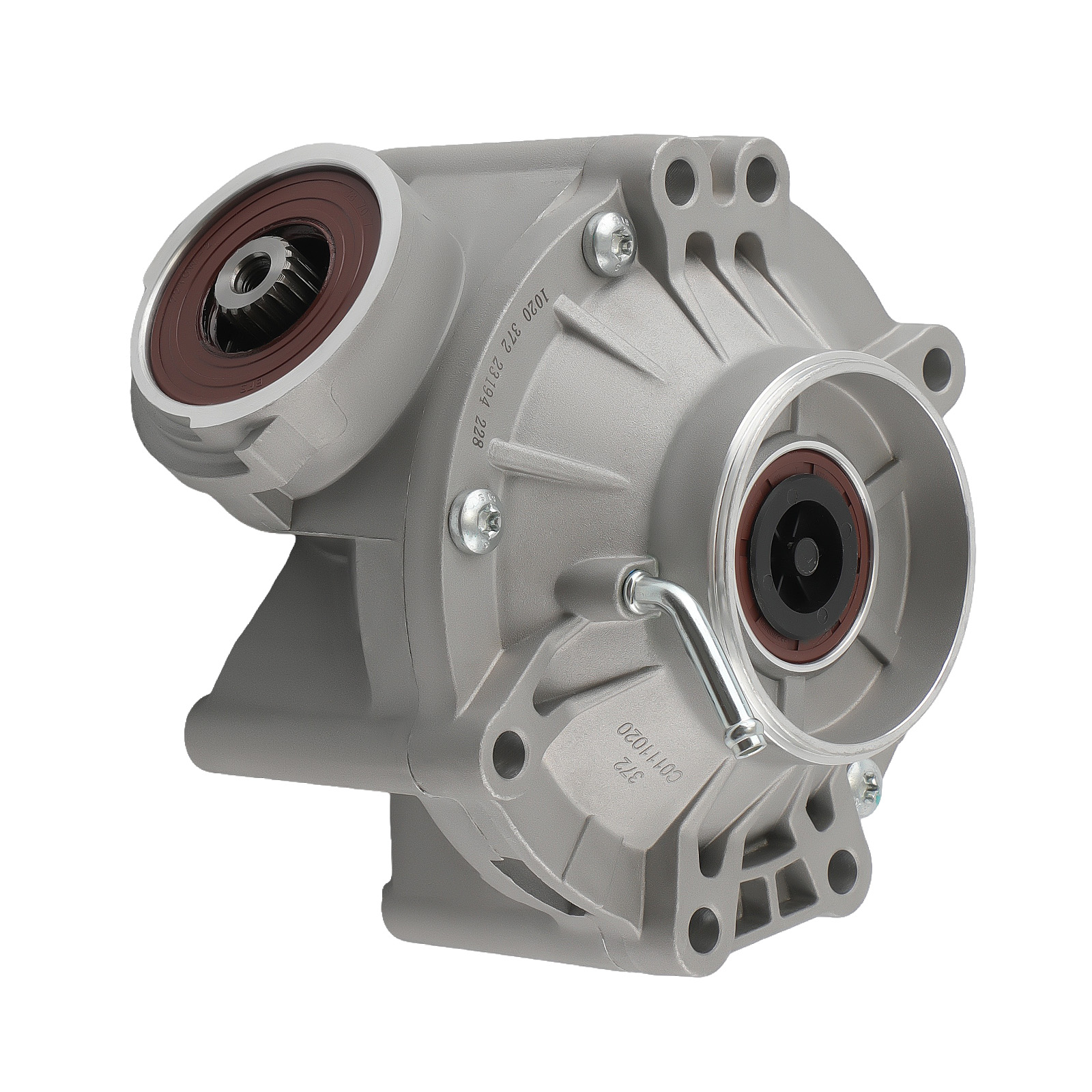

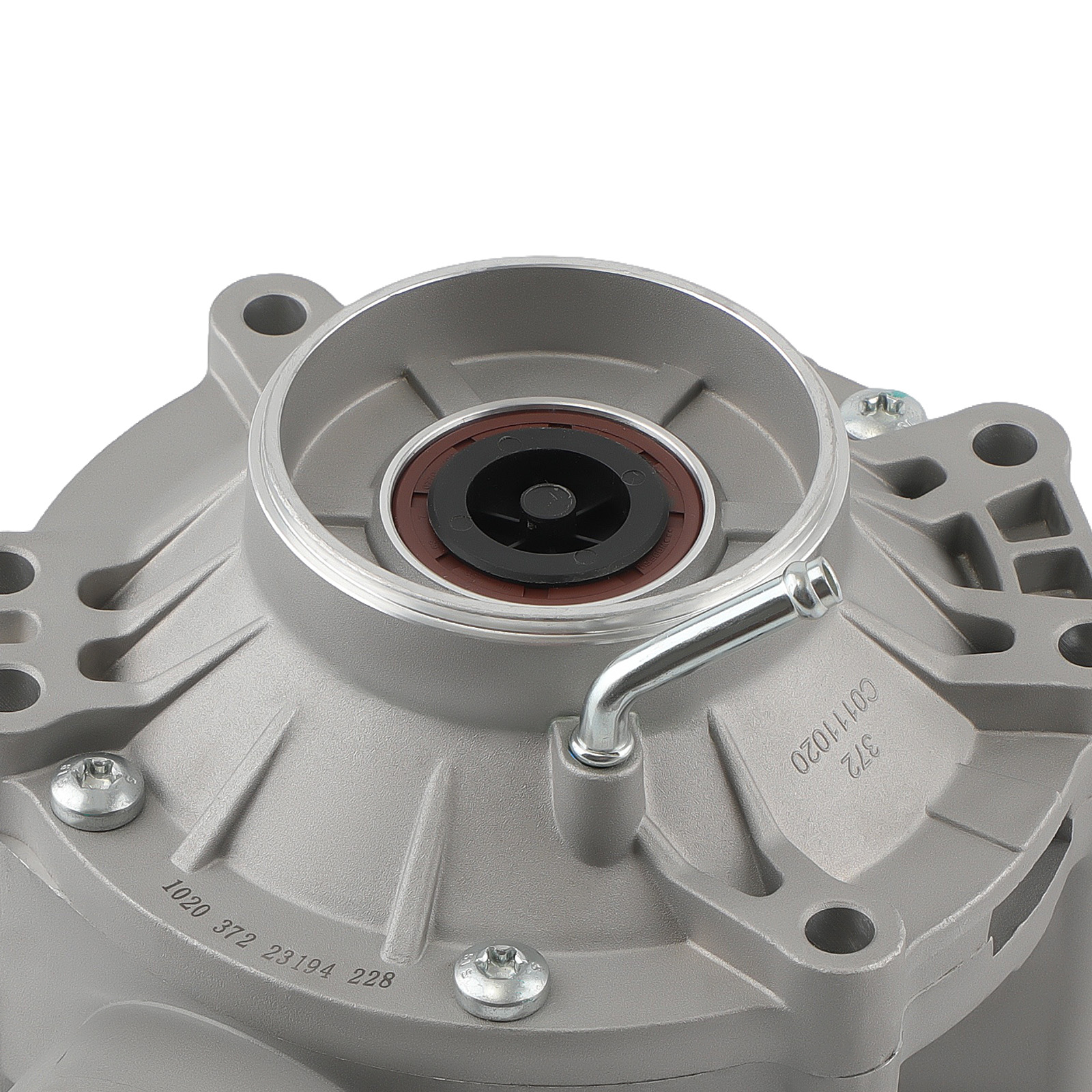

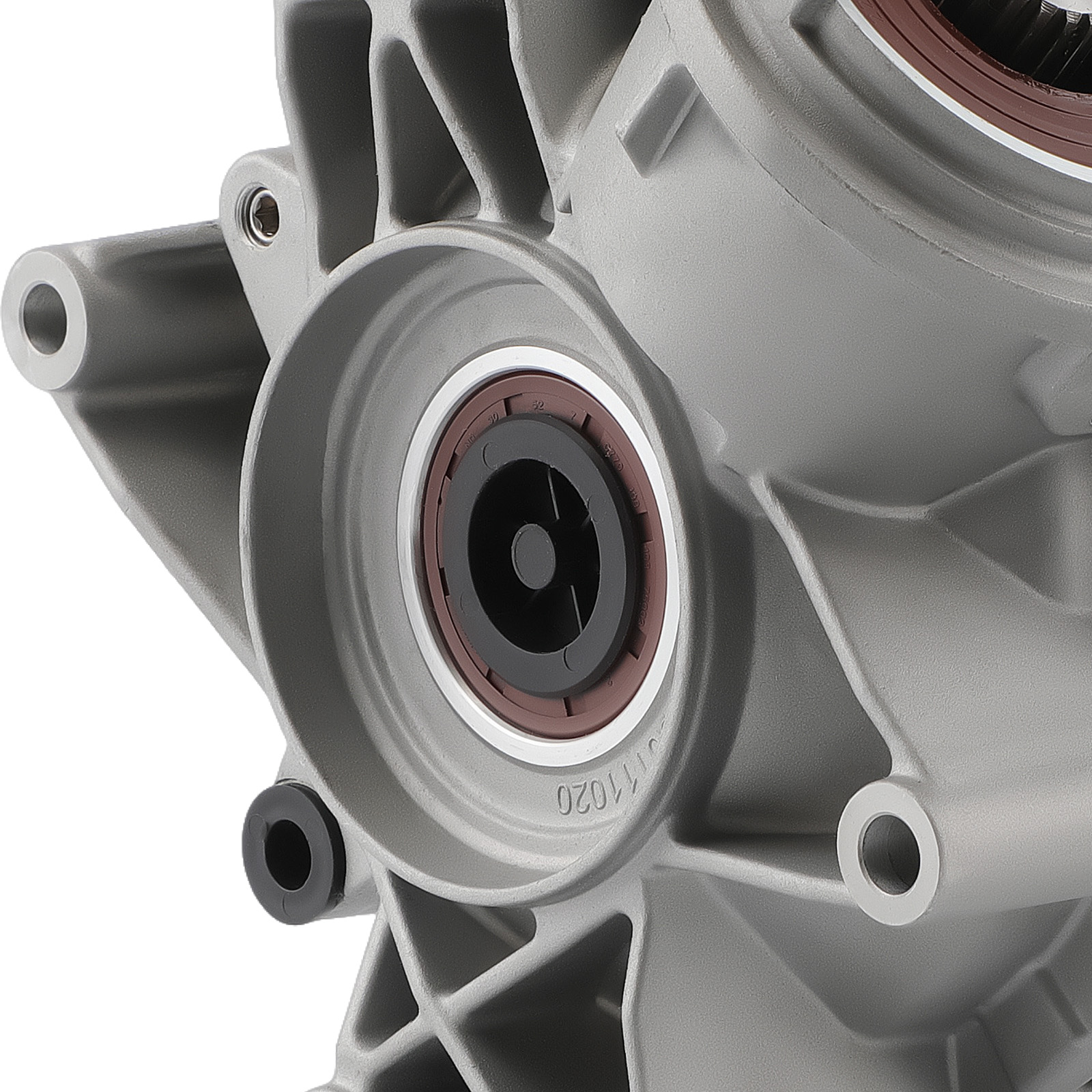

1x Complete Rear Differential (Showing as the picture)

Notes:

*Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.

*No Instruction Included, professional installation is highly recommended.
