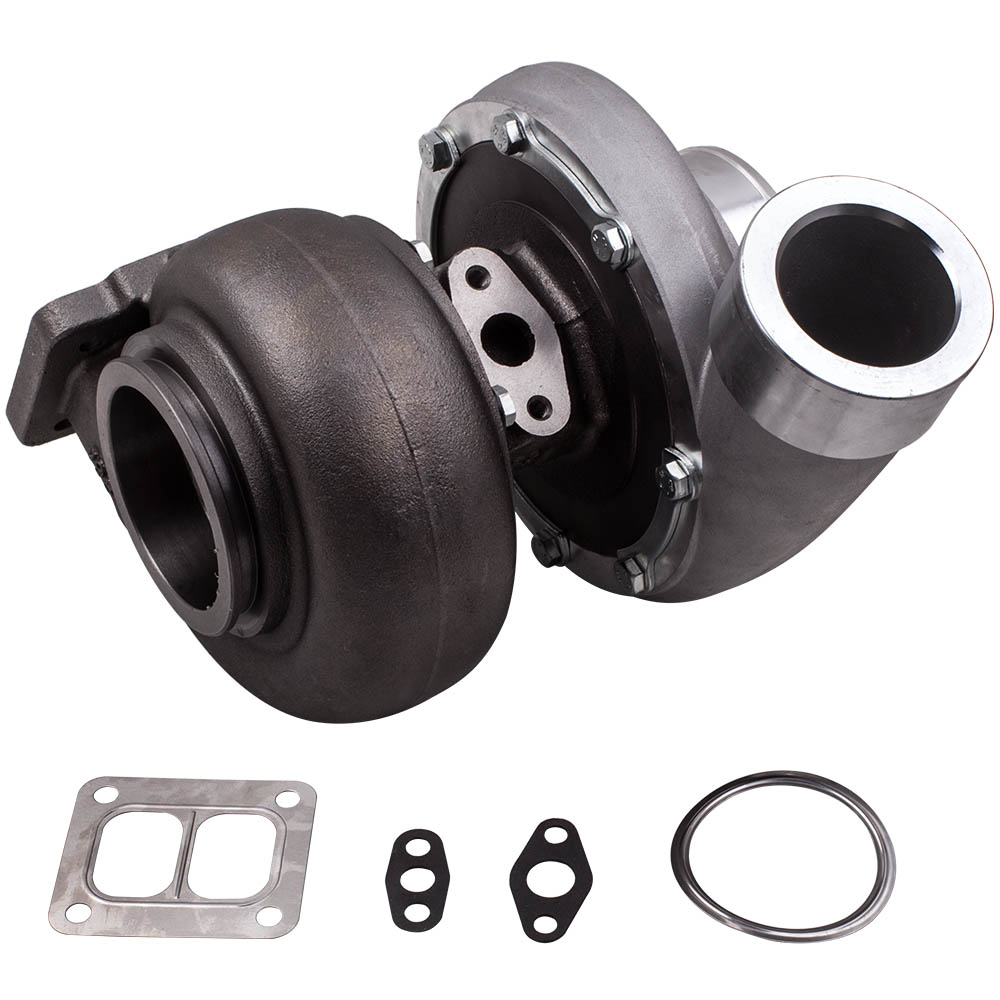

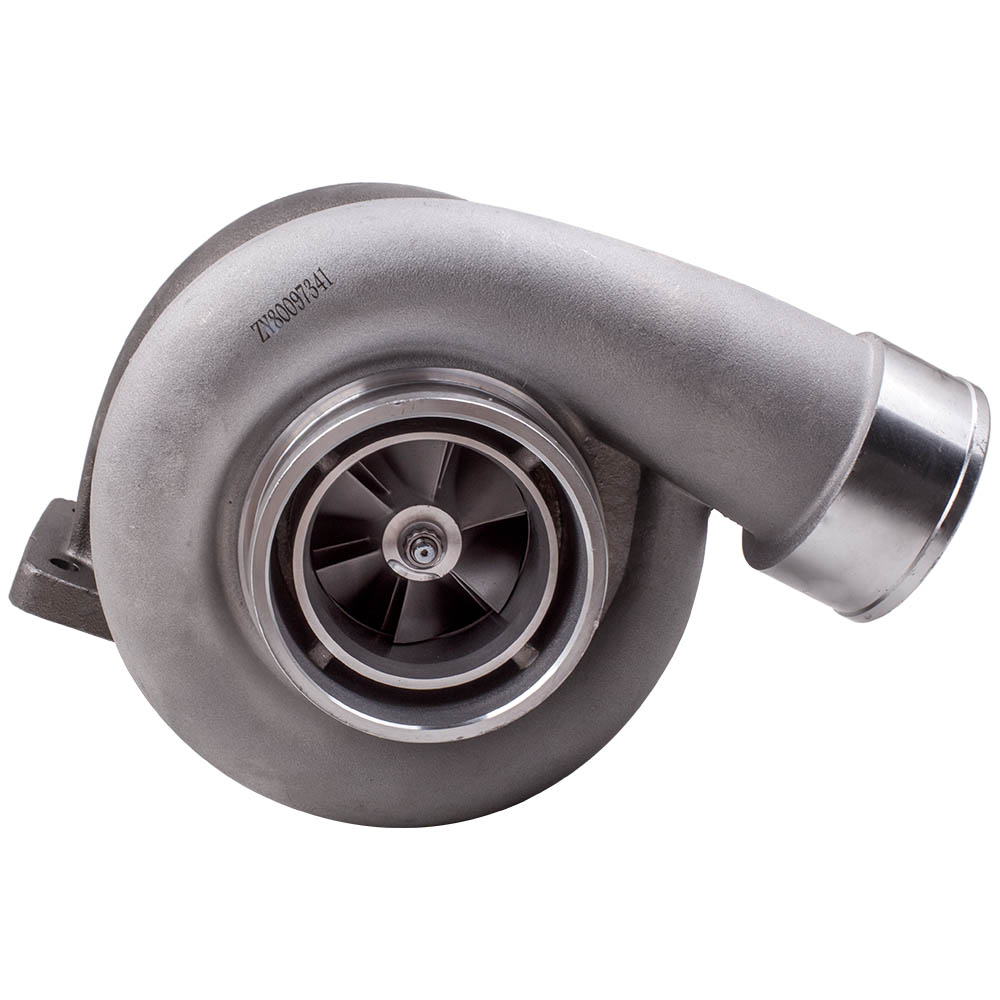

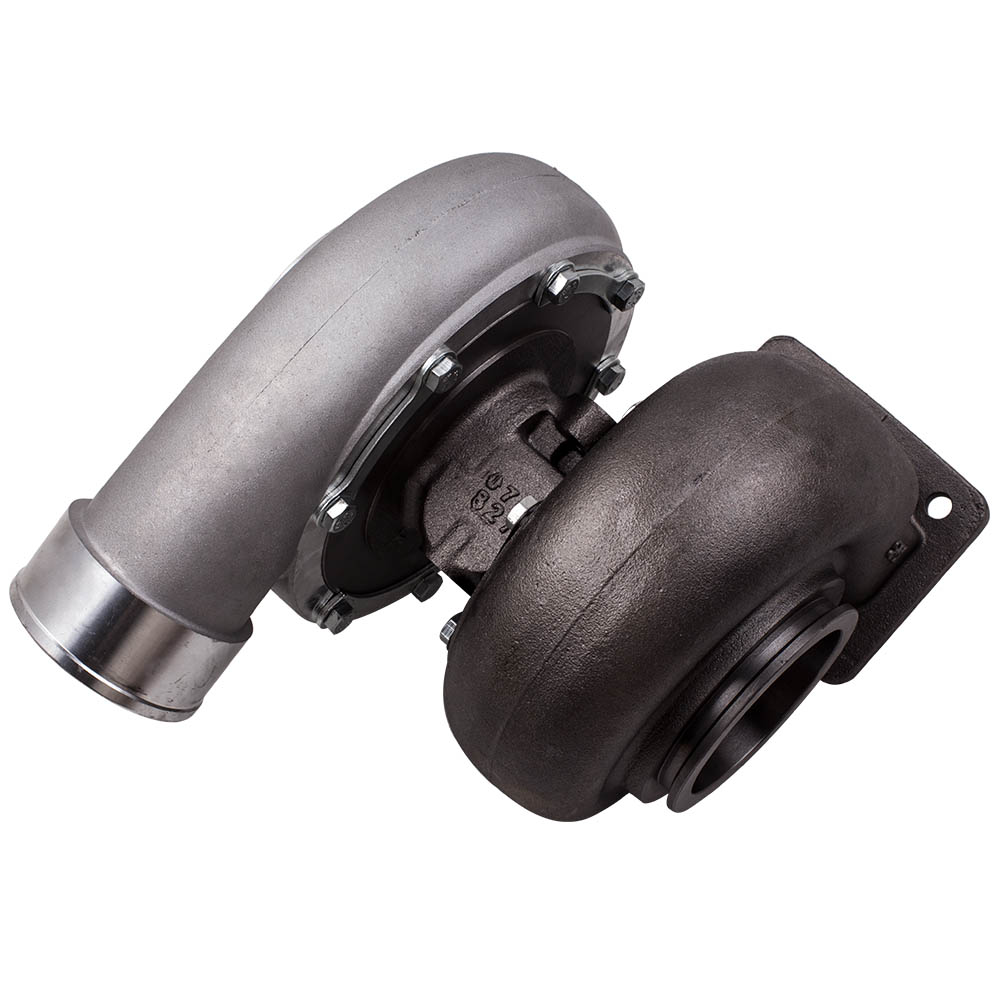

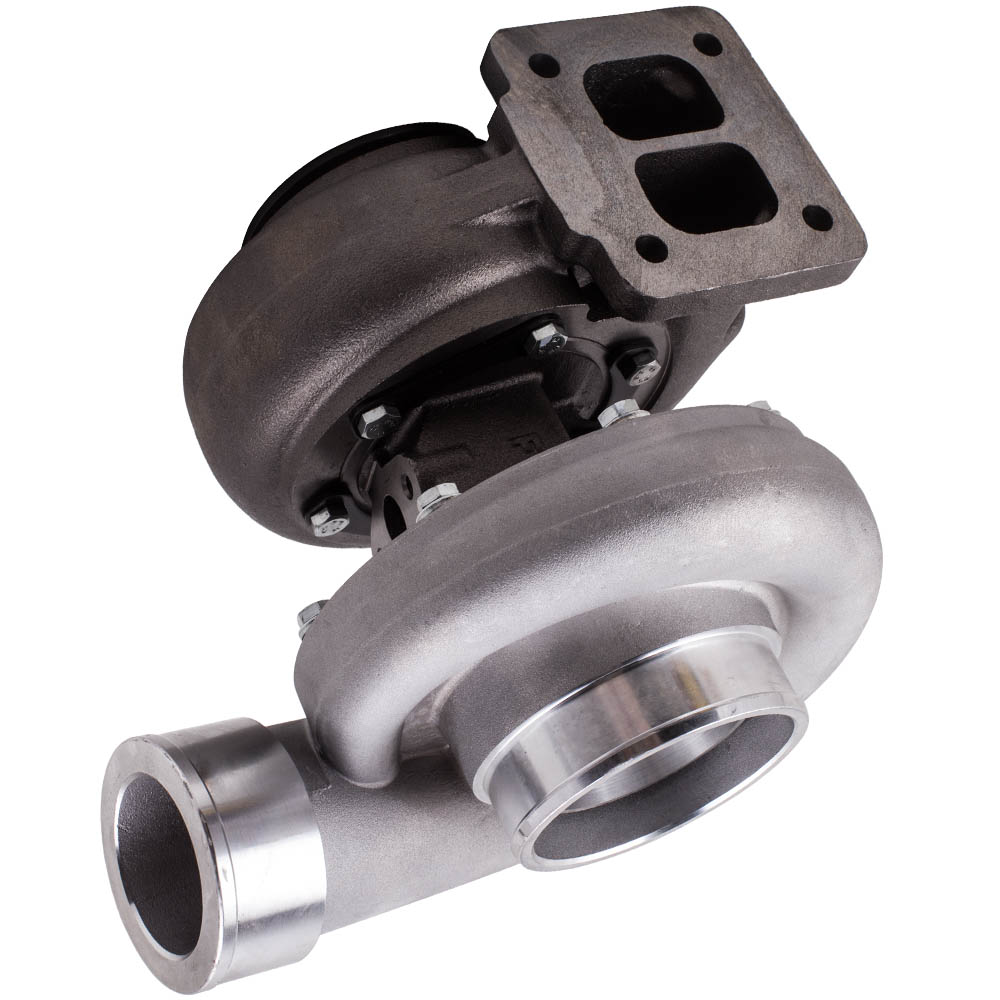

GT45 T4 V-Band 1.05 A/R 98mm Huge 600-800HPs Boost Upgrade Racing Turbo charger

Introductions:

A turbocharger, colloquially known as a turbo, is a turbine-driven, forced induction device that increases an internal combustion engine's efficiency and power output by forcing extra compressed air into the combustion chamber.

Application:

This turbo is a universal application turbo, some modification may be required based on individual vehicle.

Perfect for all 4.0L-6.0L engine

Specification:

Exhaust Inlet Flange: T4 Flange

Exhaust Outlet Flange: V-Band Flange (ID: 82mm, OD: 111mm)

Bearing Type: Wet Float

Cooling Type: Oil Cooled

Wastegate:External

Hosepower: Up to 600+HP

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Condition: 100% Brand New

Package Size:30x 30x 27 cm

Package Weight: 16400g

Compressor：

Compressor Trim:49.6

Compressor Inducer Diameter:69 mm

Compressor Exducer Diameter:98 mm

Compressor Air Inlet Size: 107mm

Compressor Air outlet Size: 86.3mm

Compressor A/R:0.66

Turbine：

Turbine Trim:77.6

Turbine Inducer Diameter:88 mm

Turbine Exducer Diameter:77.5 mm

Turbine A/R:1.05

Product Material:

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing:ZL104 aluminum with lightweight

4. Compressor wheel/blades:Cast aluminium blades – superior air tightness corrosion resistance

Product Performance：

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

NOTE：

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Notice：

California Prop 65 Warning

Code:MXR02FXSY
