Forged Connecting Rod Rods for Honda Civic CRX D16 D16A D16Y7 D16Y8 D16Z6 ZC

Note： Without bolts  and Without logo！！！

Application

for Honda Civic CRX D16 ZC SOHC VTEC D Series：

1986–89 for Acura Integra (USA)

1986–89 for Acura Integra (Australia)

1988–1991 for Honda Civic Si, CRX Si

1990-1991 for Civic EX (4dr), Civic Wagon RT4WD

1988–1991 for Civic for GTi in New Zealand

1988–1989 for Civic models in Europe (ED4, ED7)

1995 for Civic models in New Zealand (EG4)

1988–1995 for Models in South Africa

1998–2000  for Honda Civic GX

1996–2000 for Honda Civic HX

1996 for Honda Civic EX (sedan Peruvian version)

1996–2000 for Honda Civic VTI

1992–1995 for Honda Civic Si

1992–1995 for Honda Civic EX, EX-V

1992–1995 for Honda Civic ESi (European Market)

1993–1995 for Honda Del Sol Si (US)

1993–1996 for Honda Del Sol ESi (European)

1992-1995 for Honda Civic RTSi

1996–2000 for Honda Civic EX Coupé

1991–1993 for Honda Civic Ferio EJ3

1992–1995 for Honda Civic EJ1

1992–1995  for Honda Domani MA4

1993-1997 for Honda del Sol (Si)

Pin Type: Floating Pin Piston

(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

*Type: Forged 5140 aircraft chrome moly quality steel for racing

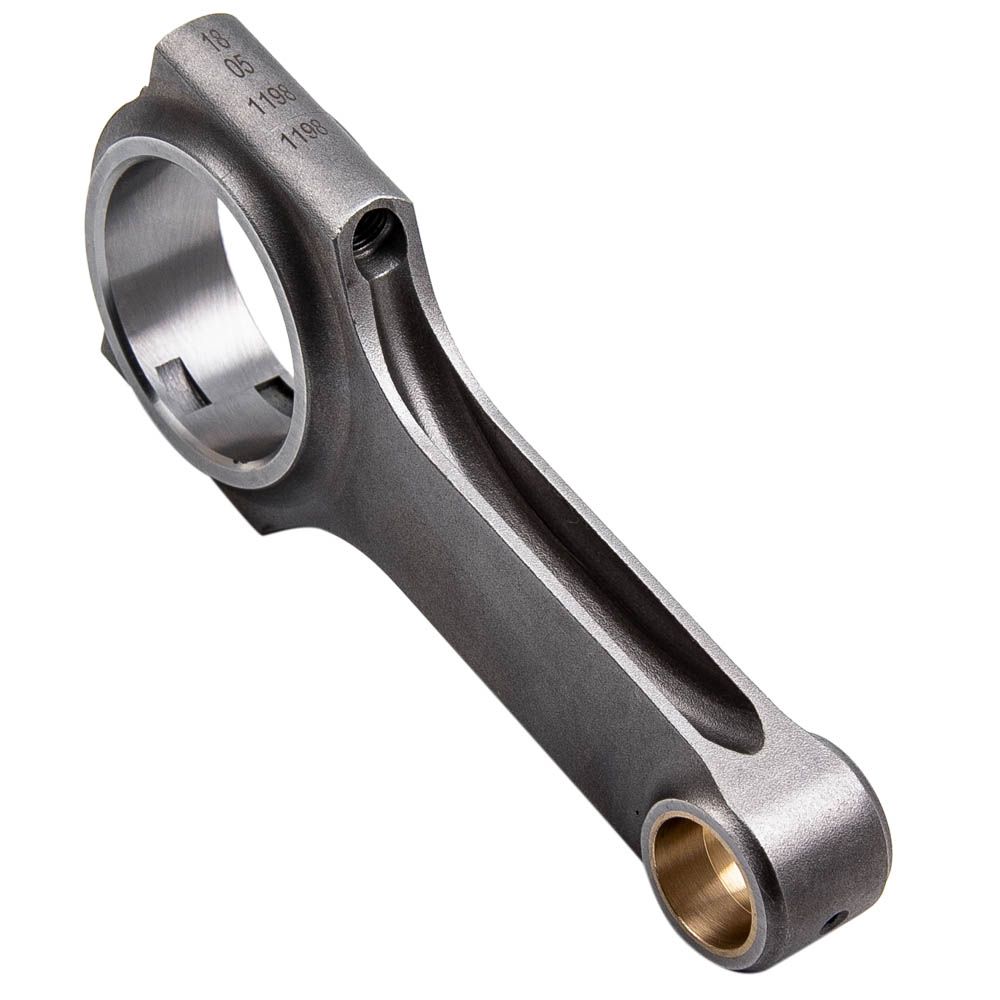

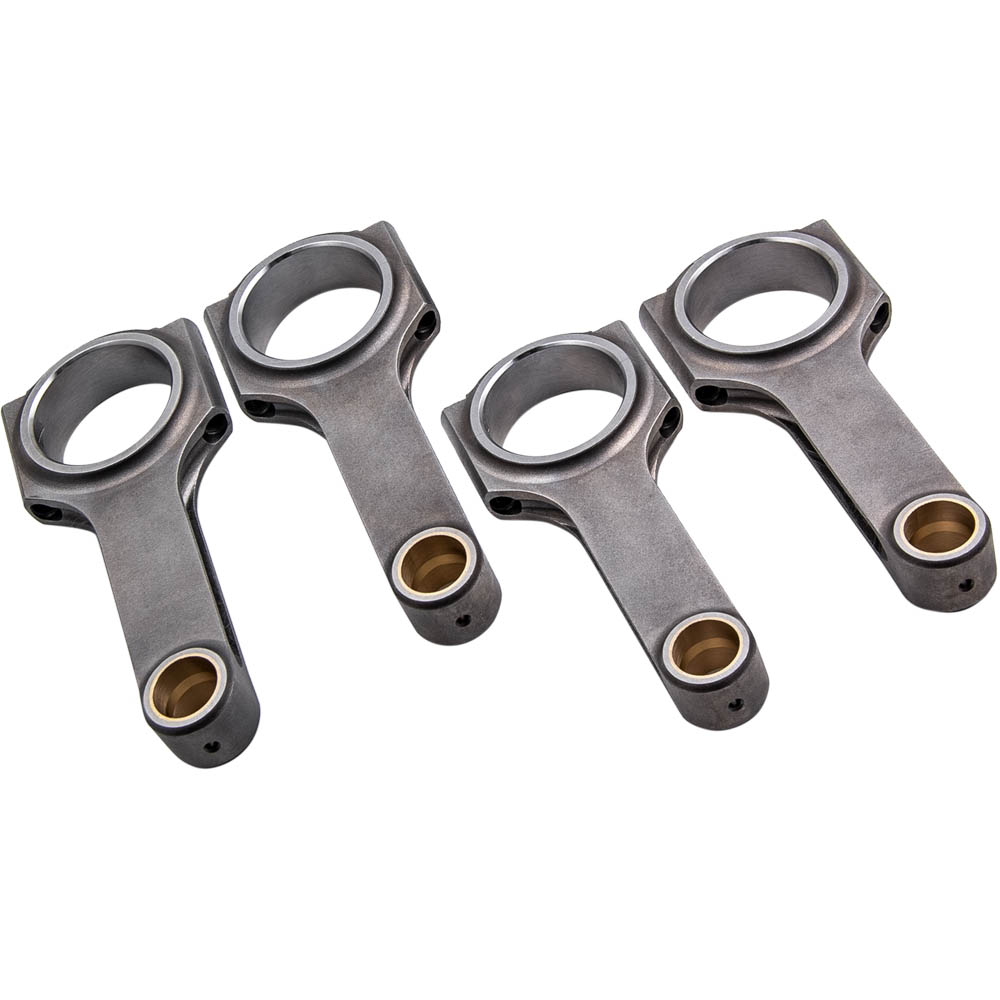

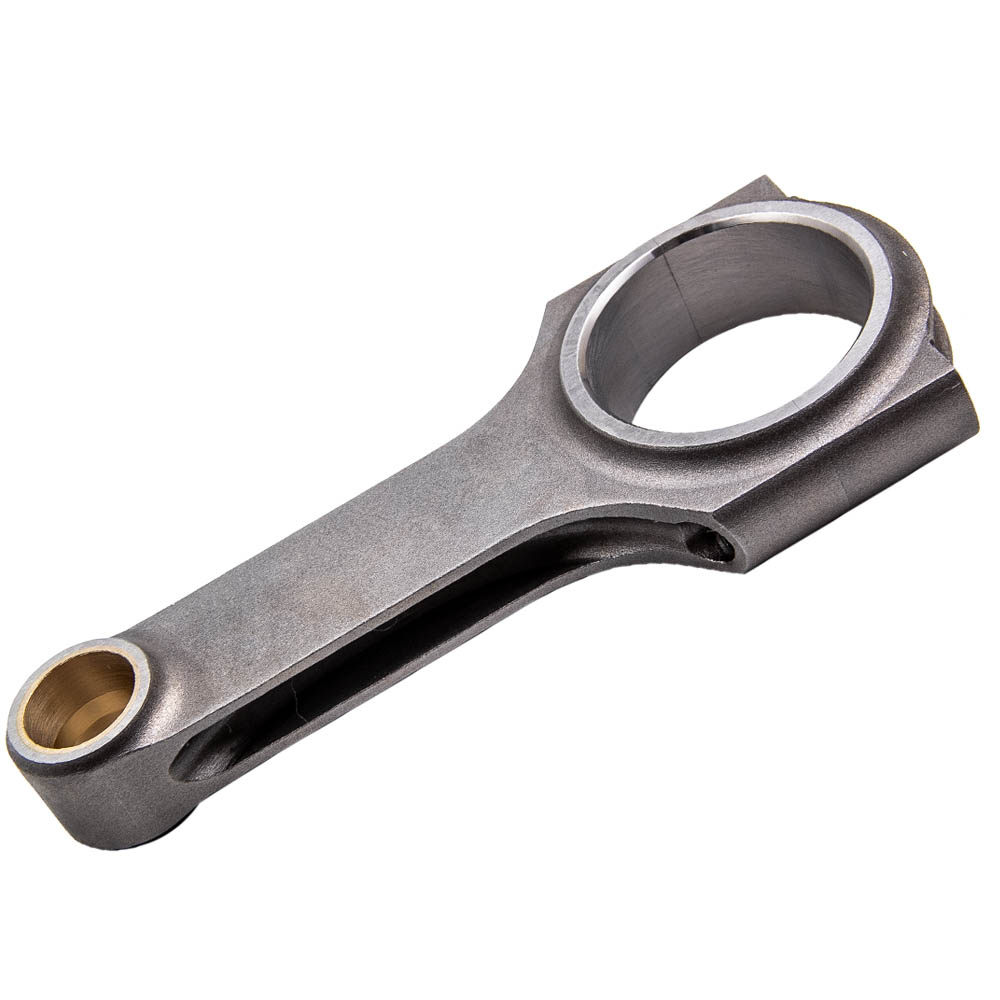

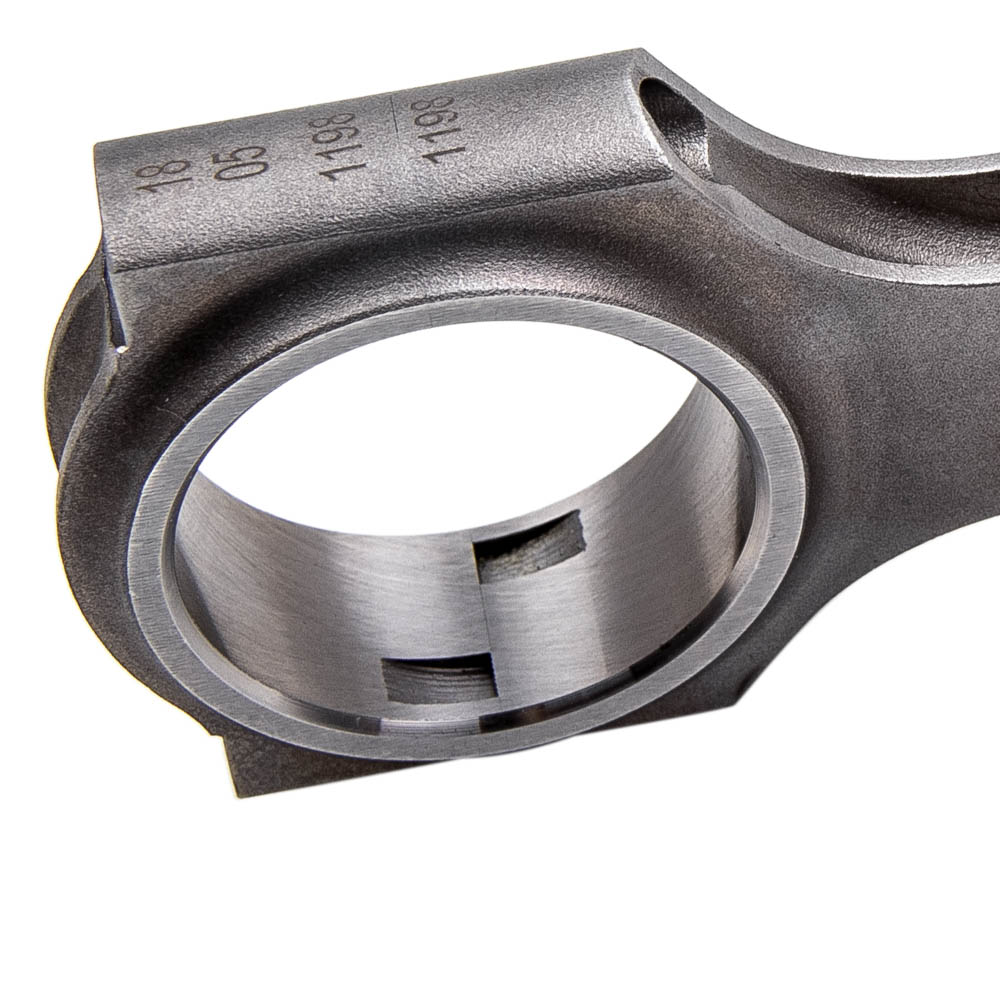

*H-beam Conrods Quantity: 4 Pieces as showing in picture

*Bolts: without bolts（3/8"）

*Advertised Horsepower Rating:200HP/piece

*Top acceleration: 9000rpm

*package size：21CM*15CM*12CM

Dimensions

Center to center length: 137mm/5.394"

Big end diameter: 48mm/1.890"

Small end diameter: 19mm/0.748"

Big end width: 22.8mm/0.898"

Small end width: 18.2mm/0.717"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；

2. Material: Forged 4140 aircraft chrome moly quality steel；

3. Without bolts ；

4. H-Beam design reduces weight without compromising strength；

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

6.100% CNC machined,Precision rod cap alignment dowels；

7.Bores finished to +/- .01 mm；

8.Balanced to within +/- 1 g per rod；

9. Each rod is magnetic particle tested to ensure free of flaws；

10. Use X-rayed, sonic tested；

11.Custom Service.

Note:

*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
