Coilover Suspension Kits for Honda Civic EG/EK/EJ 1996-2000 Adjustable Damper Coil Springs & Struts

Features:

100% , NEVER USED OR INSTALLED

HEIGHT ADJUSTMENT VIA SHOCK BODY, NOT SPRING

24-CLICKS OF DAMPING ADJUSTMENT (COMPRESSION/REBOUND) SIMULTANEOUSLY

FRONT CAMPER PLATES STANDARD ON APPLICABLE KITS

ALUMINUM FRONT AND REAR BOTTOM MOUNTS

ALUMINUM ANODIZED TOP HAT& COLLARS

FULLY ANODIZED RUST RESISTANT SLEEVES.

1 Year LIMITED WARRANTY AGAINST MANUFACTURER DEFECT

ROD DIAMETER: FRONT-22MM / REAR-12.5MM

Fitmemt:

For HONDA CIVIC 1989-1991 ED2  ED3  ED4 ED6 ED7 EC8  EE9 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CRX 1989-1991 ED8 ED9 EE8 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CIVIC 1992-1995 EG1 EG2 EG3 EG4 EG5 EG6 EG8 EG9 EJ1 EJ2 EH2 EH3 EH9 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CIVIC 1995-2000 EK1 EK2 EK3 EK4 EJ6 EJ7 EJ8 EM1 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA DELSOL 1993-1997 EG1 Rear FORK TYPE BRACKET MODEL ONLY

For ACURA INTEGRA 1994-2001 DC2 DC4 Rear FORK TYPE BRACKET MODEL ONLY

Specifications:

- Front and Rear top mount: rubber

- Damping: 24 levels rebound damping adjustable

- Spring rate Front: 8 kg/mm (448 lbs/in)

- Spring rate Rear: 5 kg/mm (280 lbs/in)

- Spring length Front: 180mm

- Spring length Rear: 180mm

- Adjustable height: lowering 1-3inch

- Coilover overall length Front: 365mm-410mm

- Coilover overall length Rear: 435mm-480m

- Rod diameter: Front-22mm / Rear-12.5mm

- Shock type: Twin tube

- Spring Preload: 7-10 mm

- Color: Silver

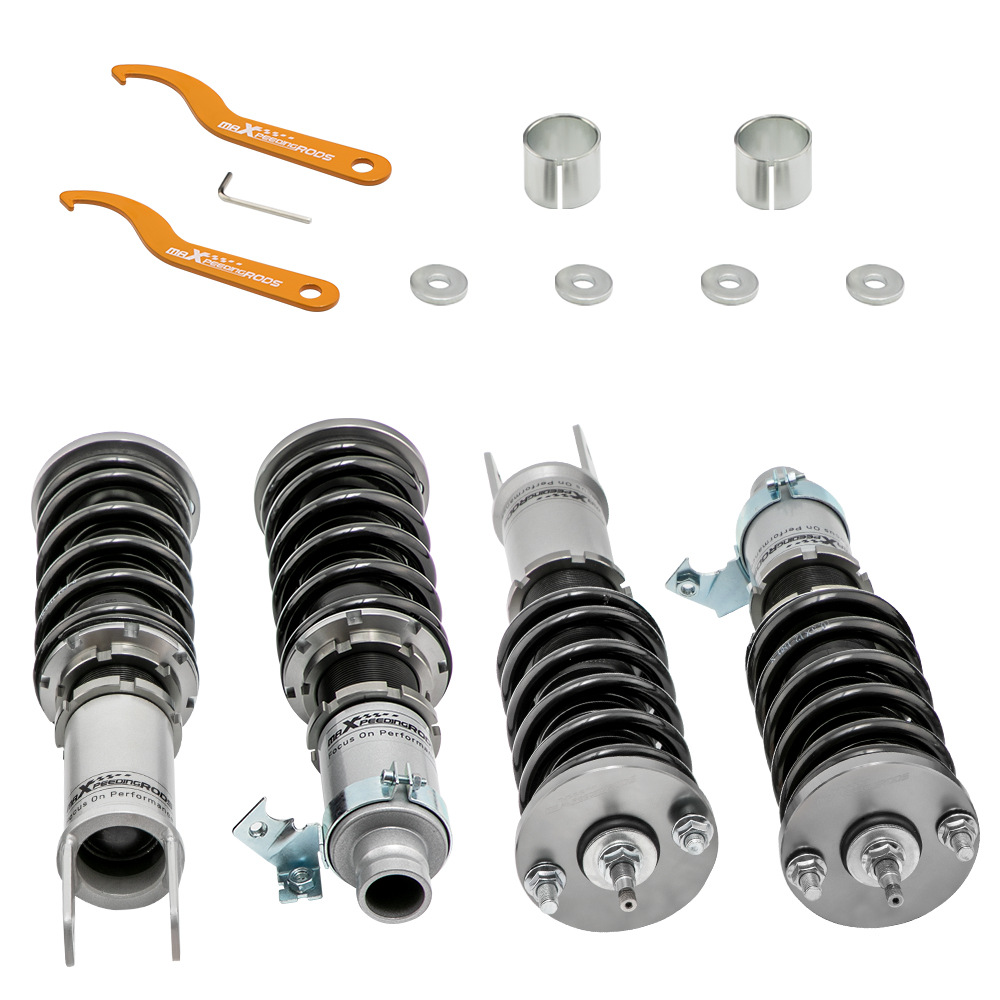

Package Including:

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment

Note: For some vehicles, you will need sleeves washers that already included in our package.
