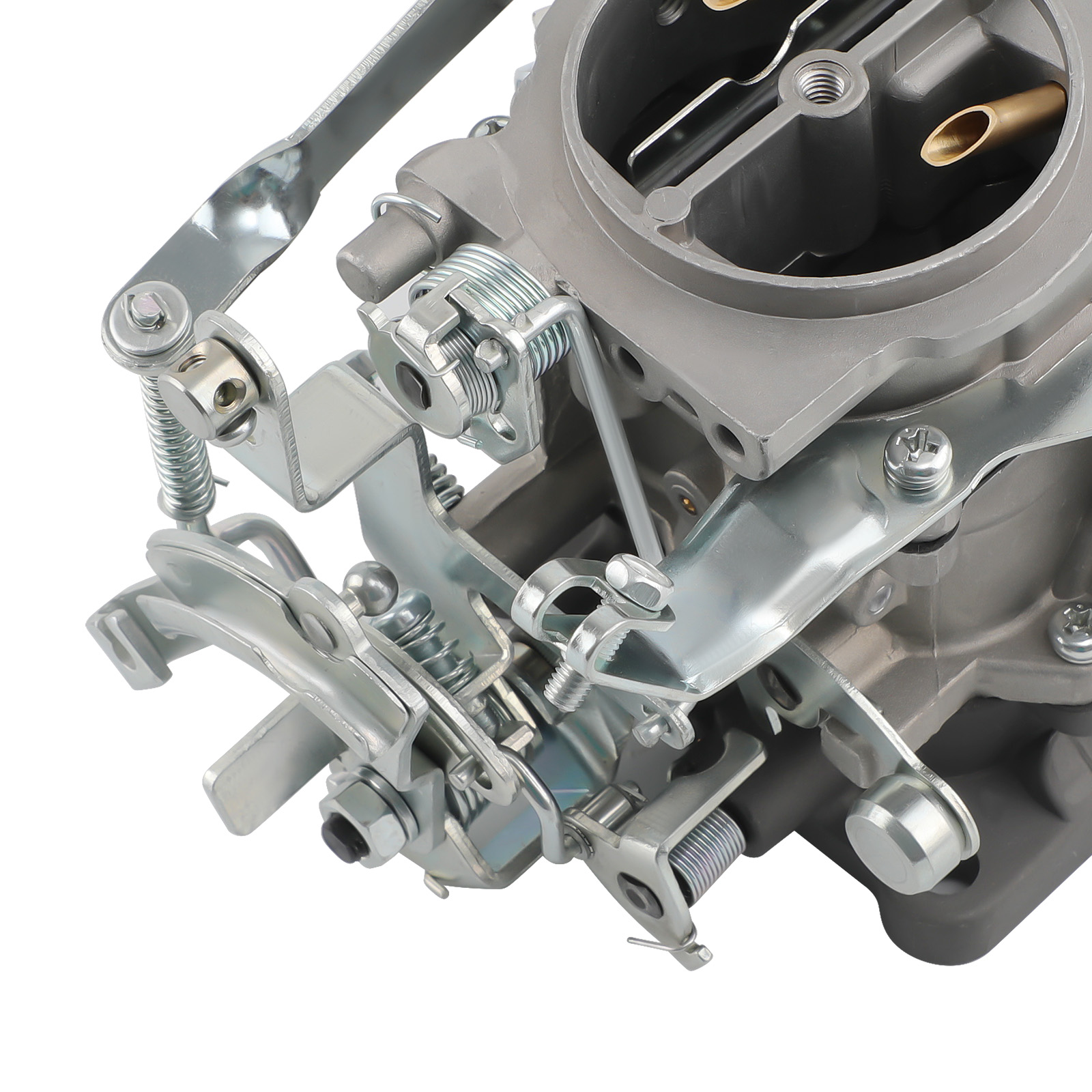

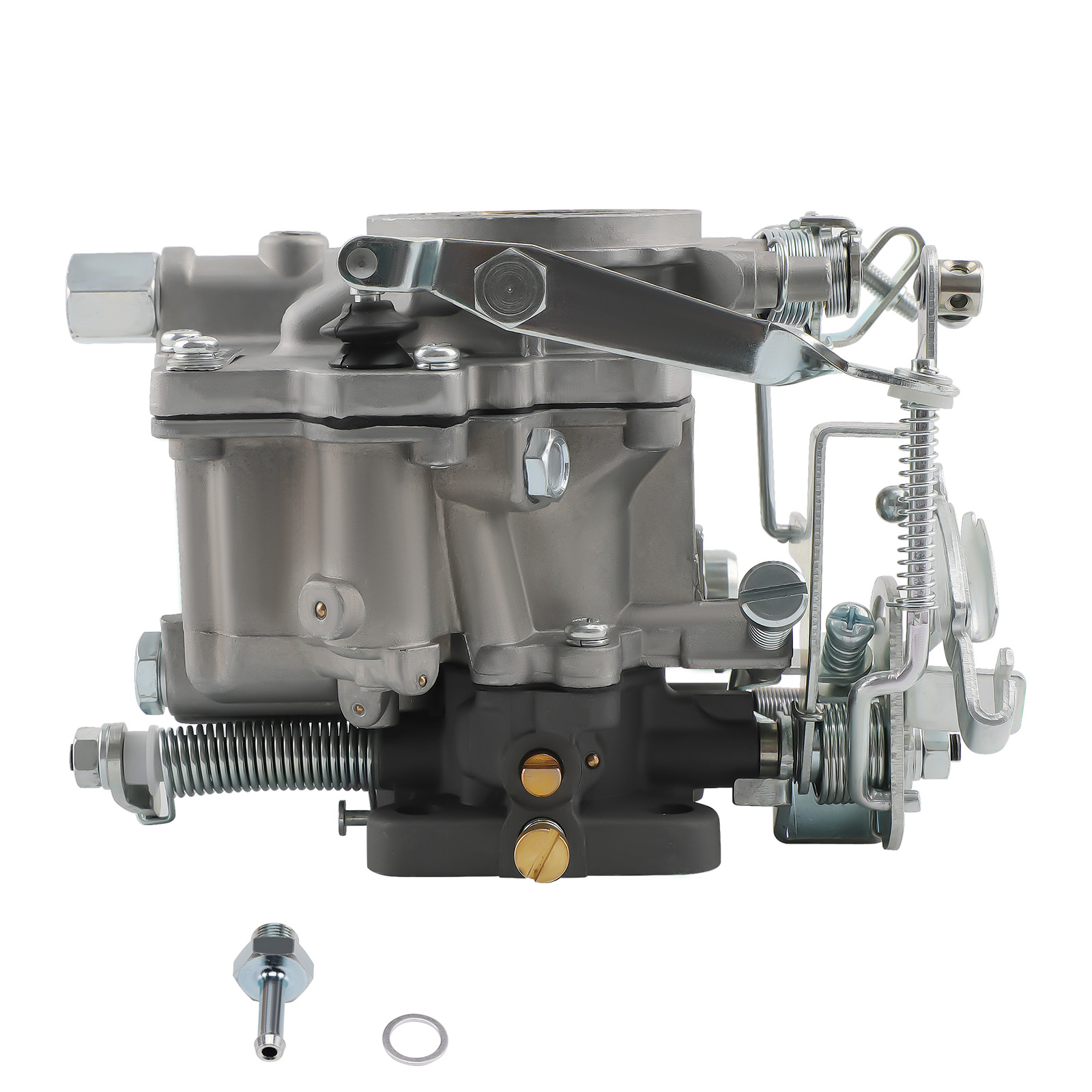

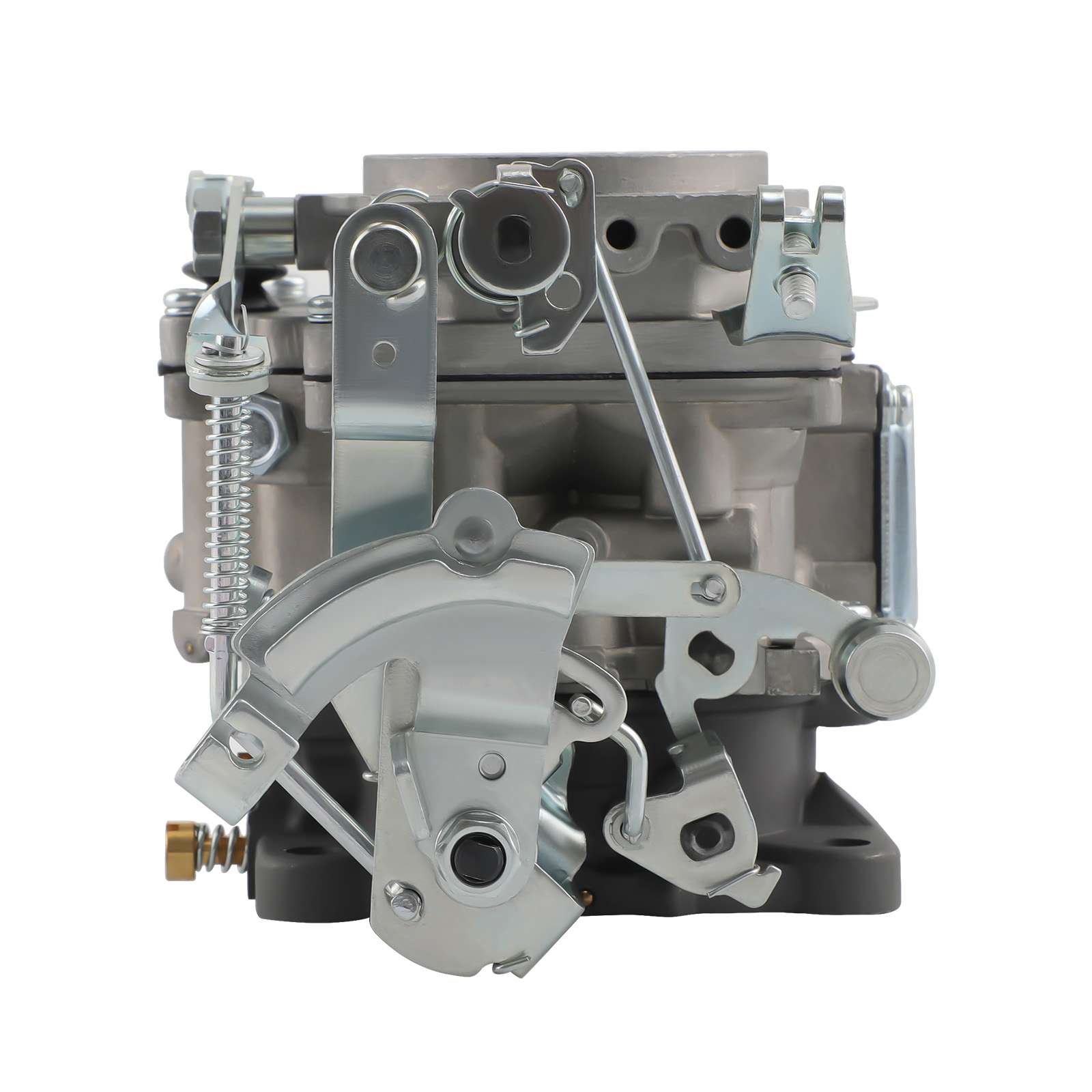

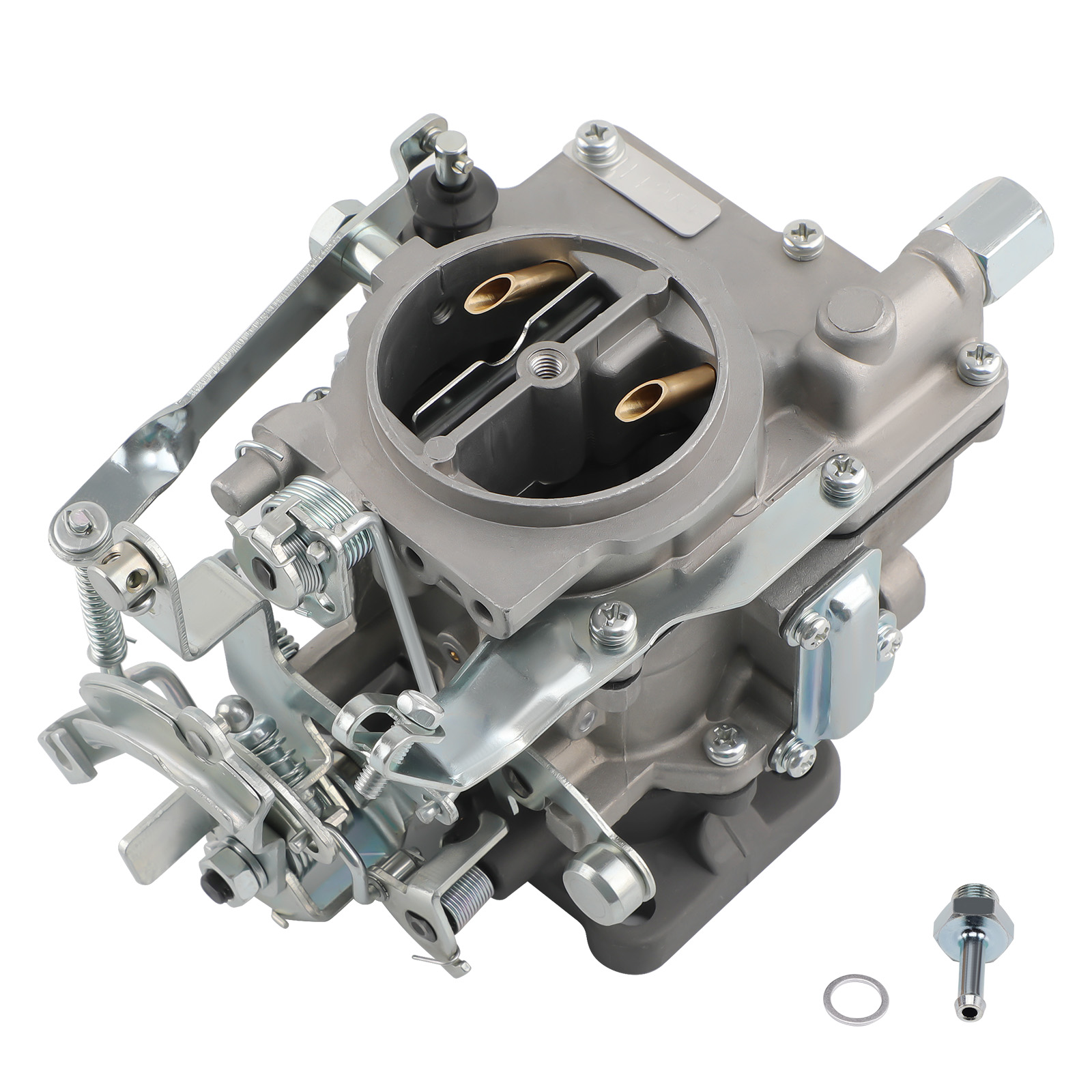

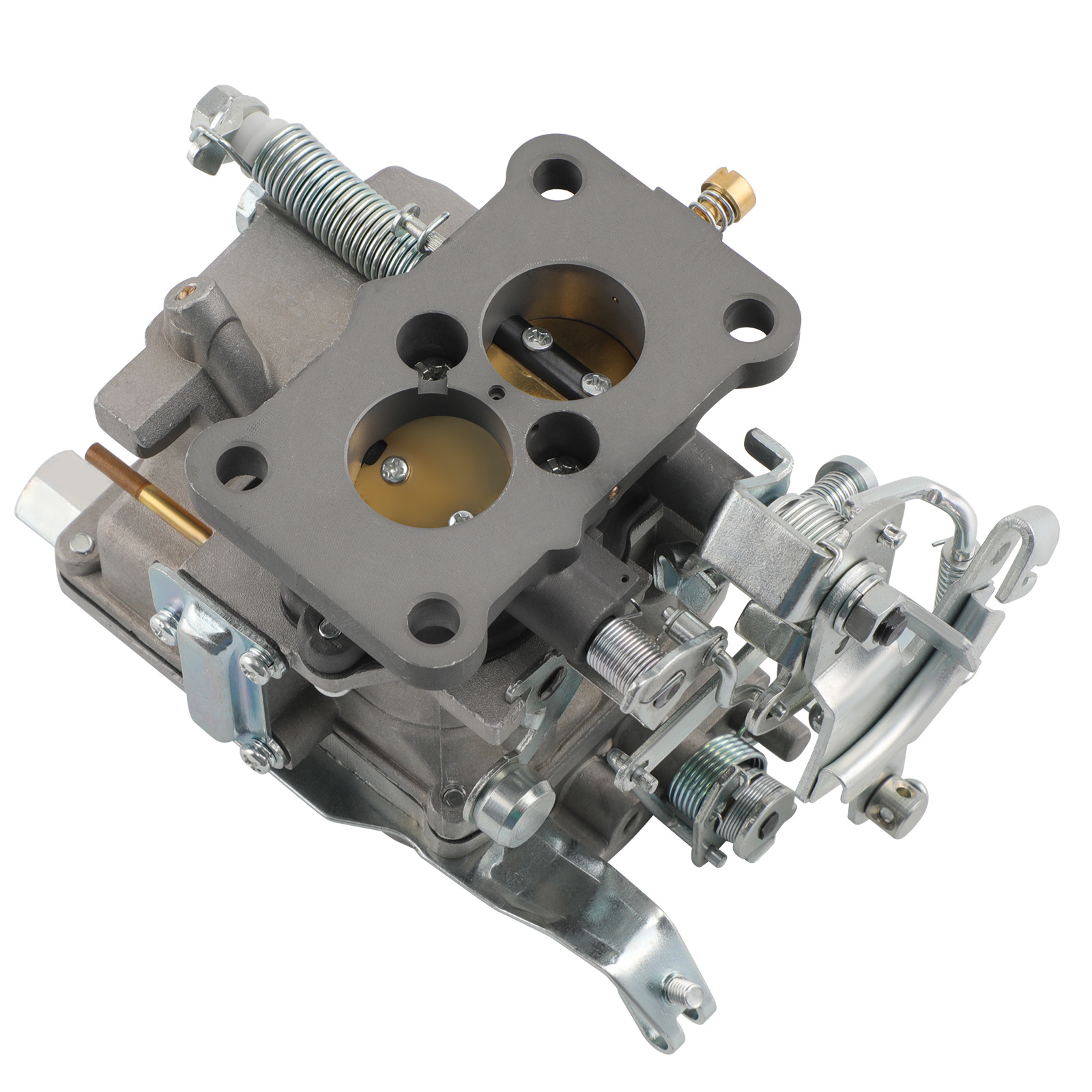

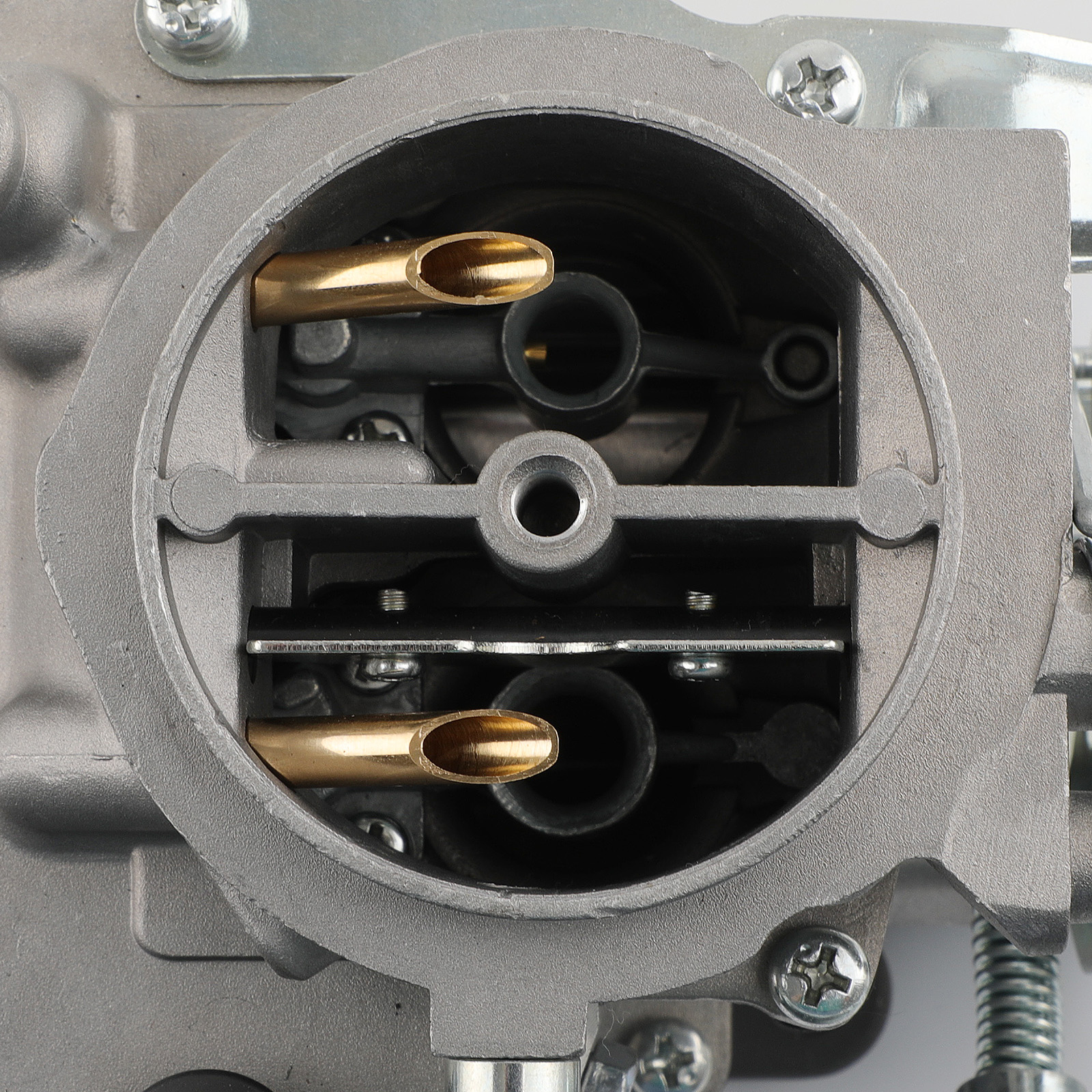

Carburetor Carb For Suzuki Samurai 1986-1988 1.3L for Toyota Corolla 3K 4K 1968-1978 21100-24034

Introductions:

A carburetor/carburettor is a device that mixes air and fuel for internal combustion engines in the proper air–fuel ratio for combustion. A carb consists of an open pipe through which the air passes into the inlet manifold of the engine, it allows air and fuel into the engine through valves, mixing them together in different amounts to suit a wide range of different driving conditions. To carburate or carburet means to mix the air and fuel or to equip an engine with a carby for that purpose. Carburetors have largely been supplanted in the automotive.

Feature:

Condition: 100% Brand New

Material: Zinc

Type: Hand Choke

Warranty: 2 Years

Specification

1.Fitment:

for Suzuki Samurai Assembled 1986-1988  (But It will be made some slight modifications. )

for Toyota Corolla 3K 4K 1968-1978

for Toyota Corolla 1974-1981

for Toyota Starlet 1974-1978

for Toyota Trueno 1974-1981

2.Replace Part Number :

21100-24034, 21100-24035, 21100-24045,

2110024035, 211002404, 21100 24034,

21100 24035, 21100 24045,

3.Specification

Type: Hand Choke / Manual
Same bore size: 27.8/27.8mm
Material: Heavy duty zinc alloy construction
Specific: 2 Barrel
Input voltage: DC 12V

Package Includes:

1* 2-barrel carb
1*  threaded bushing for the gasoline inlet

Placement: The intake pipe between the air filter and the engine of the car

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
