Camshaft Locking Timing Tool Set For BMW M50 M52 M54 E36 E46 E60 E34

Type：Timing Tools Kit

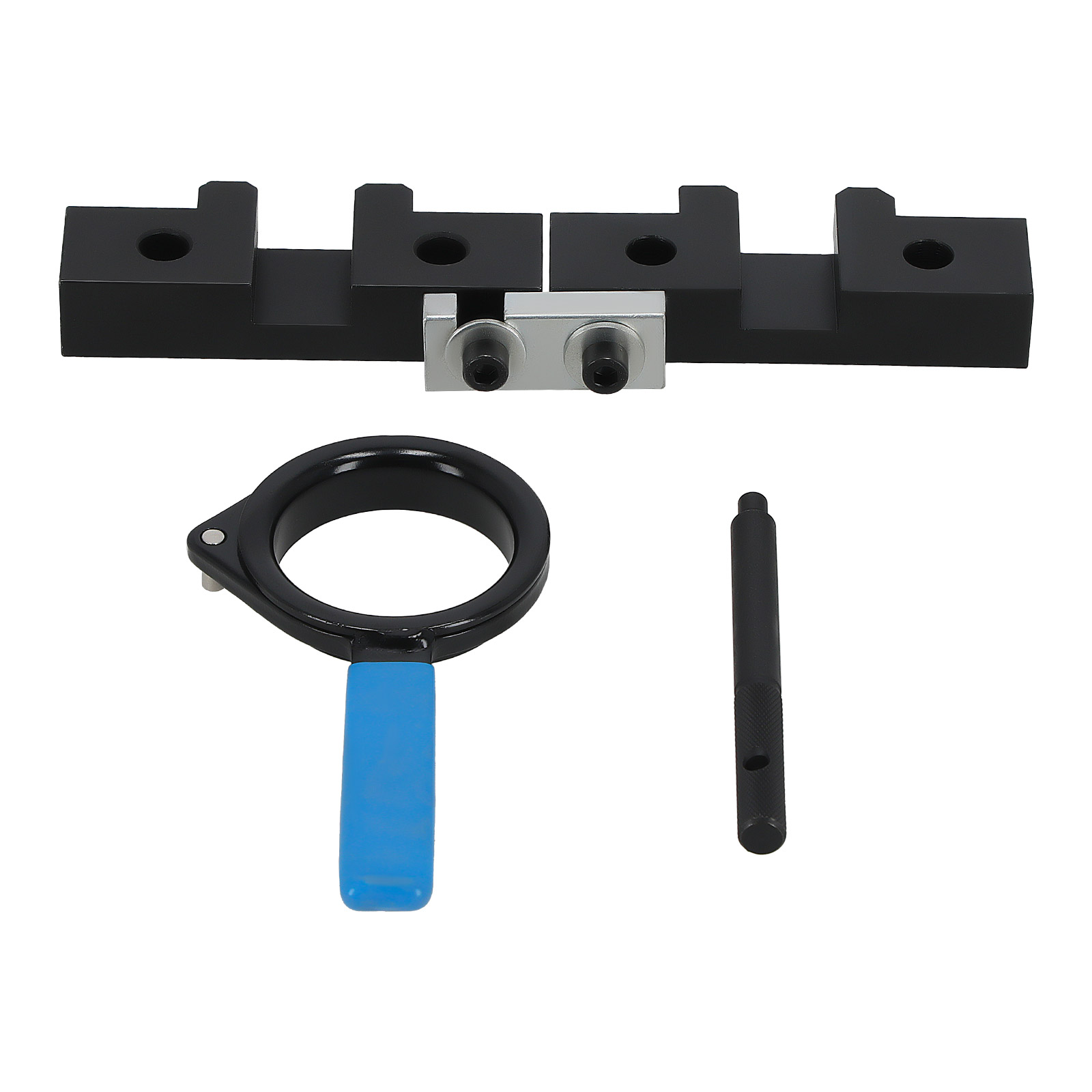

Package Includes:

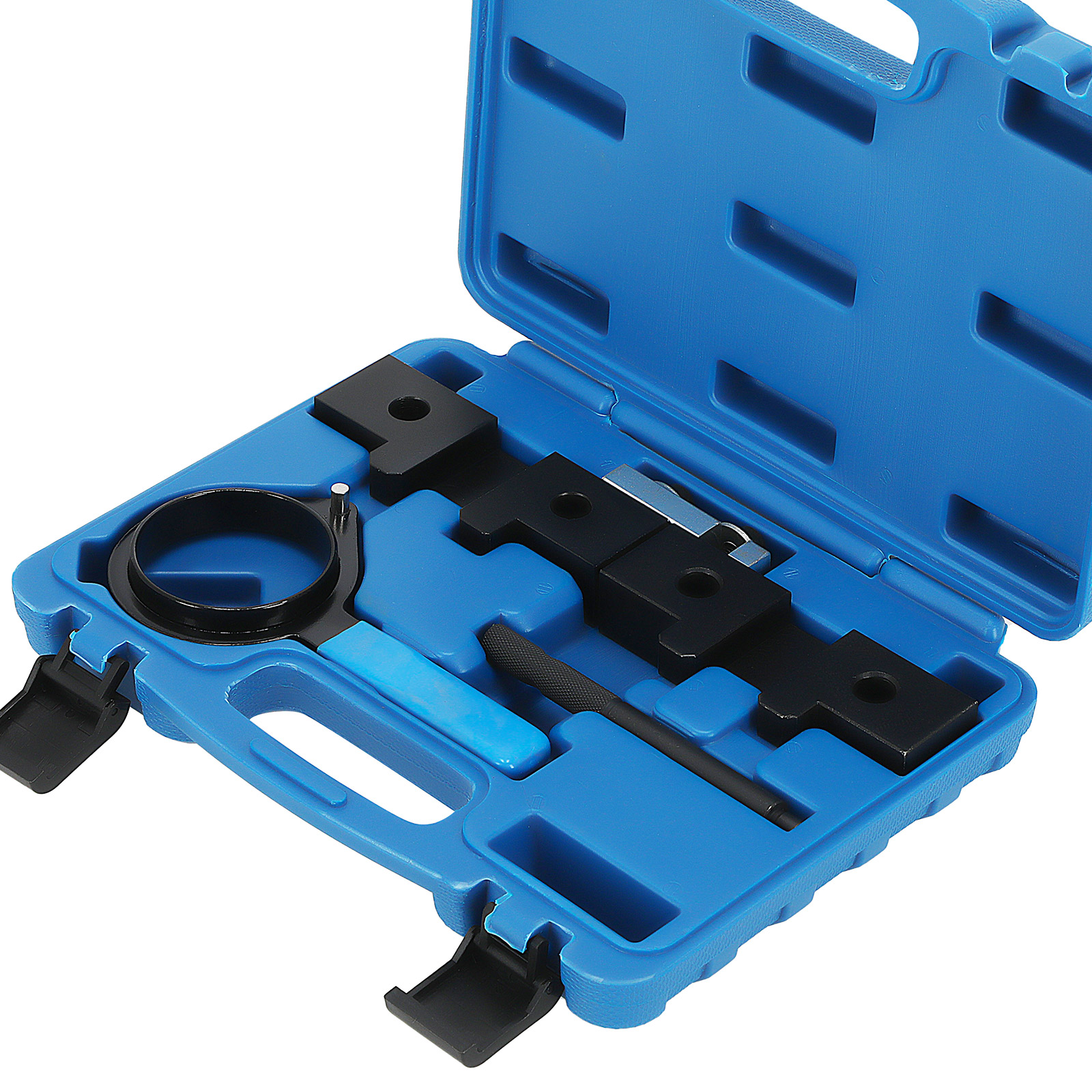

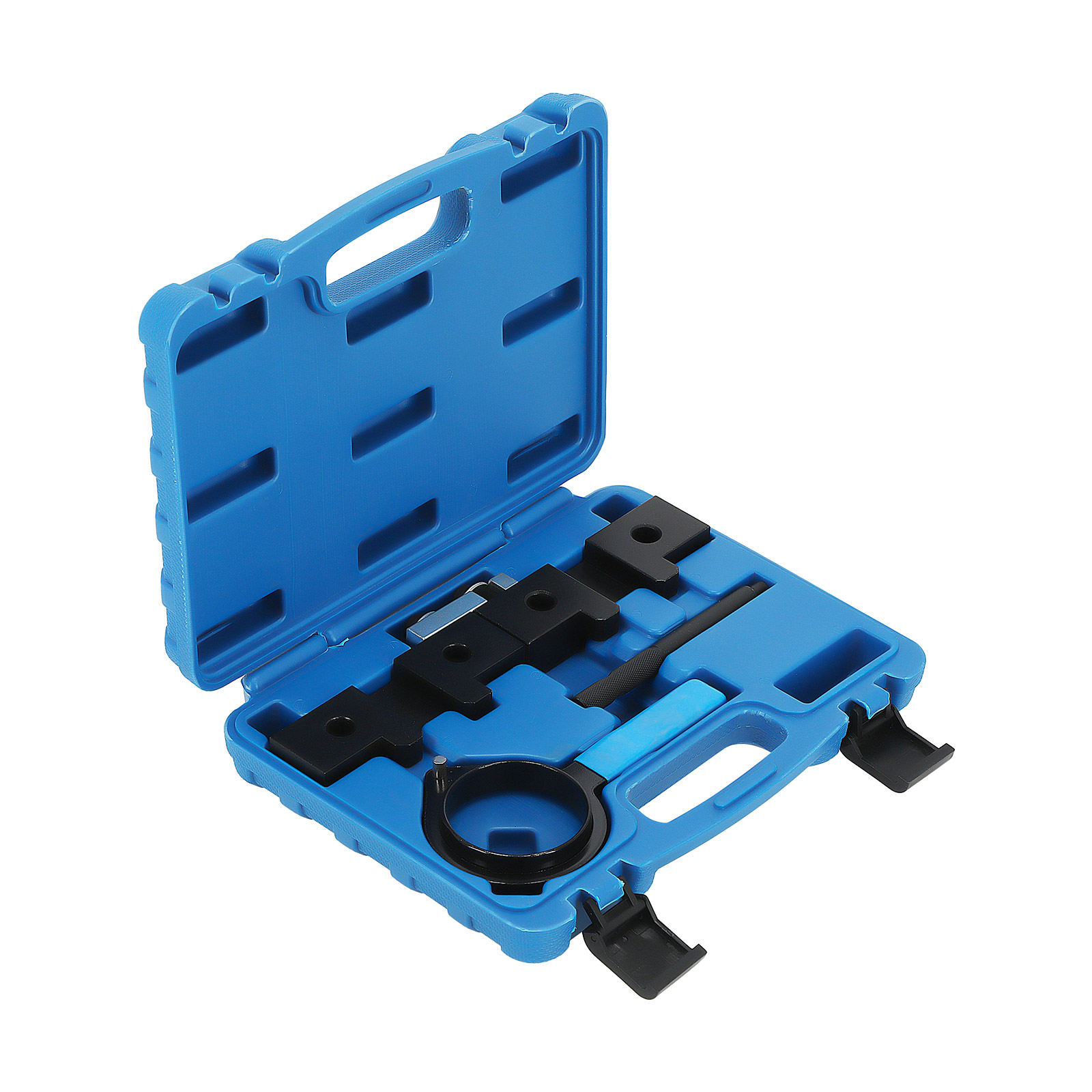

1 x Carry Box
1 x Camshaft Locating Fixture
1 x Top Dead Center Pin
1 x Turning Wrench

Application:

M42B18M54B22
* 1989-1991 E30 318iS/U.S. model 318i* 2001-2003 E46 320i/320Ci
* 1992-1996 E36 318i/318iS/318ti* 2001-2003 E39 520i
* 2001-2002 E36 Z3 2.2i
M44B19* 2003-2005 E85 Z4 2.2i
* 1996-2000 E36 318iS/318ti* 2003-2005 E60/E61 520i
* 1996-2001 Z3 1.9
M54B25
M50B20* 2001-2002 E36/7 Z3 2.5i
* 1990-1995 E36 320i* 2001-2005 E46 325i/325xi
* 1989-1995 E34 520i* 2001-2006 E46 325Ci
* 2001-2004 E46 325ti
M50B24* 2001-2004 E39 525i
* 1993-1997 E36 3-Series (Thai specification)* 2003-2004 E60/E61 525i/525xi
* 1993-1997 E34 5-Series (Thai specification)* 2004-2006 E83 X3 2.5i
* 2004-2006 E85 Z4 2.5i
M50B25
* 1991-1995 E36 325i/325isM54B30
* 1992-1995 E34 525i/525ix* 2001-2005 E46 330i/330xi
* 2001-2006 E46 330Ci
* 2001-2003 E39 530i
S50B30US
*1995 E36 M3
* 2001-2002 E36 Z3 3.0i
* 2003-2005 for BMW E60 530i
* 2003-2006 E85 Z4 3.0i
* 2004-2006 E83 X3 3.0i
* 2001-2006 E53 X5 3.0i


Specifications:
Top Dead Center Pin
Engines: M42, M43, M44, M50, M52, M52tu, M54, M56, M60, M62, M70, M73, S50b30, S50b32, S54, S62.
Camshaft Locating Fixture
Engines: M42, M44, M50, M52, M52tu, M54, M56, S50us, S52us.
Turning Wrench
Engines: M50, M52, S50us, S52us.

Features:

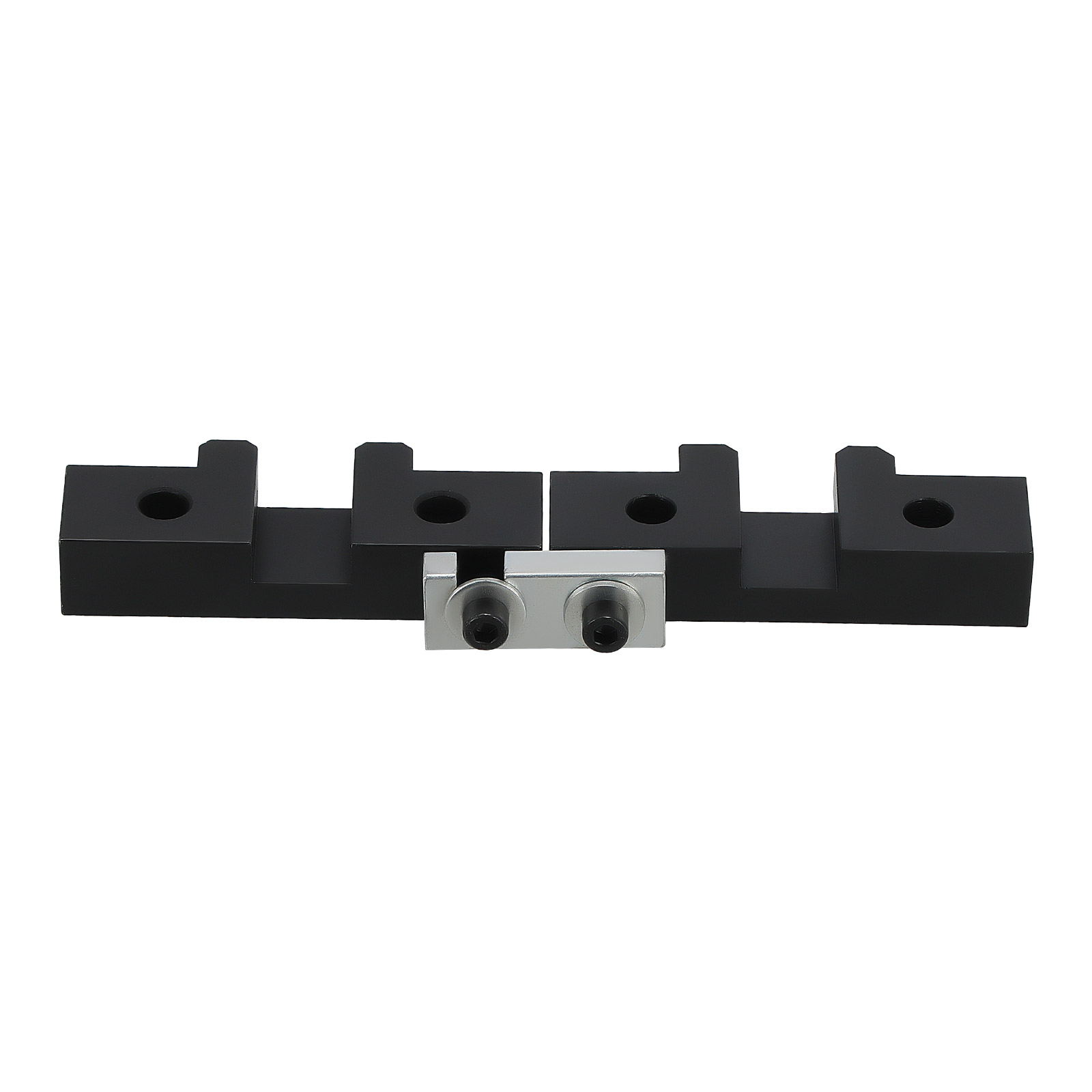

The camshaft locating fixture:  to align and hold the camshaft in position when assembling cylinder head
The top dead center pin:  to lock the flywheel at top dead center when removing or replacing the camshafts or assemblies.

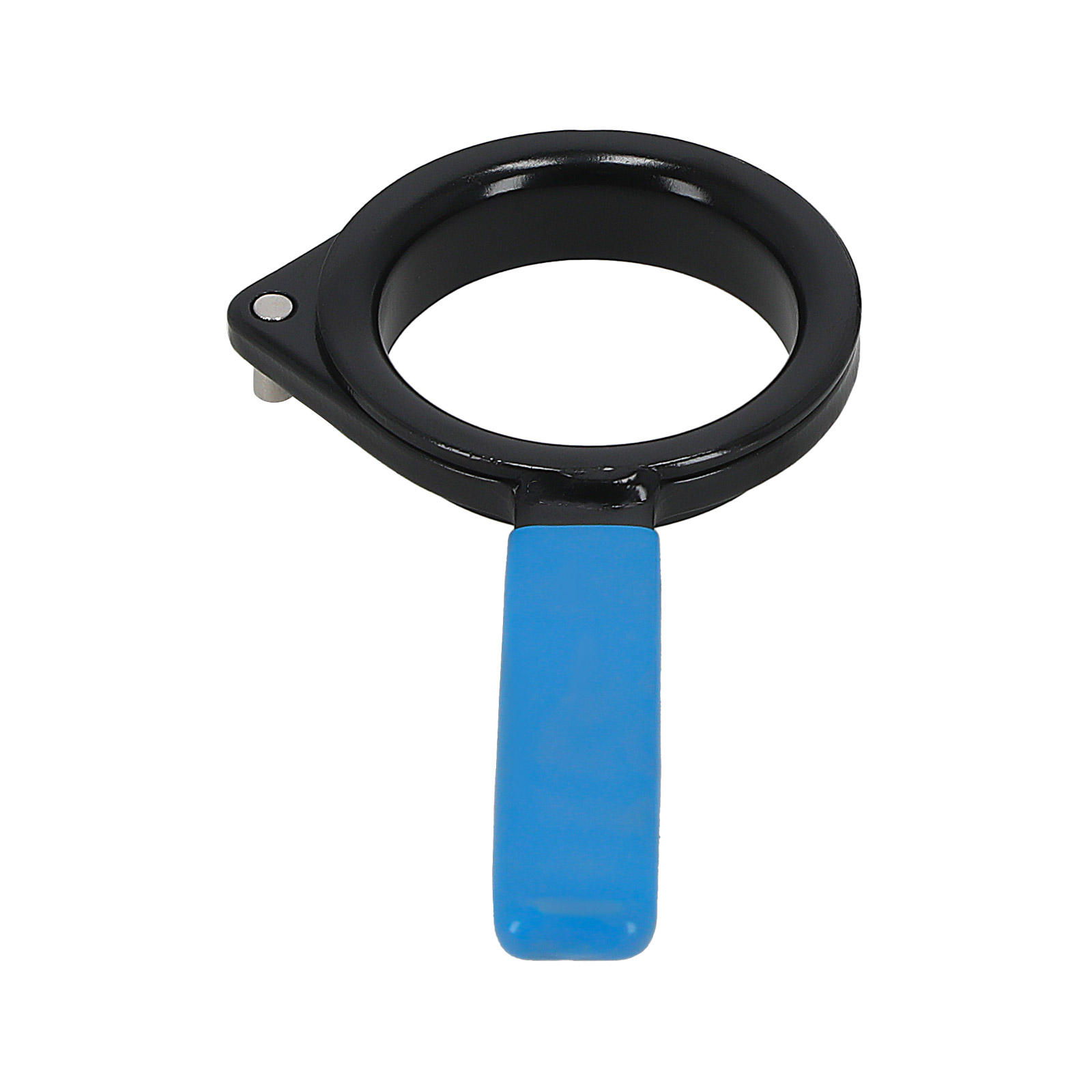

The  turning wrench:  to adjust position on single engines when removing or installing.
Wide range of applications for camshaft locating fixture,for turning wrench,to lock the flywheel,for top dead center and for  assemblies.
