63 A/R STAGE III T04E T3 T4 44 TRIM COMPRESSOR TURBO TURBOCHARGER 5-BOLT+ Turbo Oil Feed + Drain Return Line Hose Kit

Notice:

Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Turbo fit for:

for 1.5L to 2.5L any 4/6 cylinder engine

Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Oil lines fit for most turbos

T3, T3/T4, T4, T04, GT32, GT40, GT42, GT4088R, GT4049R, GT42R/RS, GT4294R, GT4202R, T61, T66, T70

Specification:

Turbo

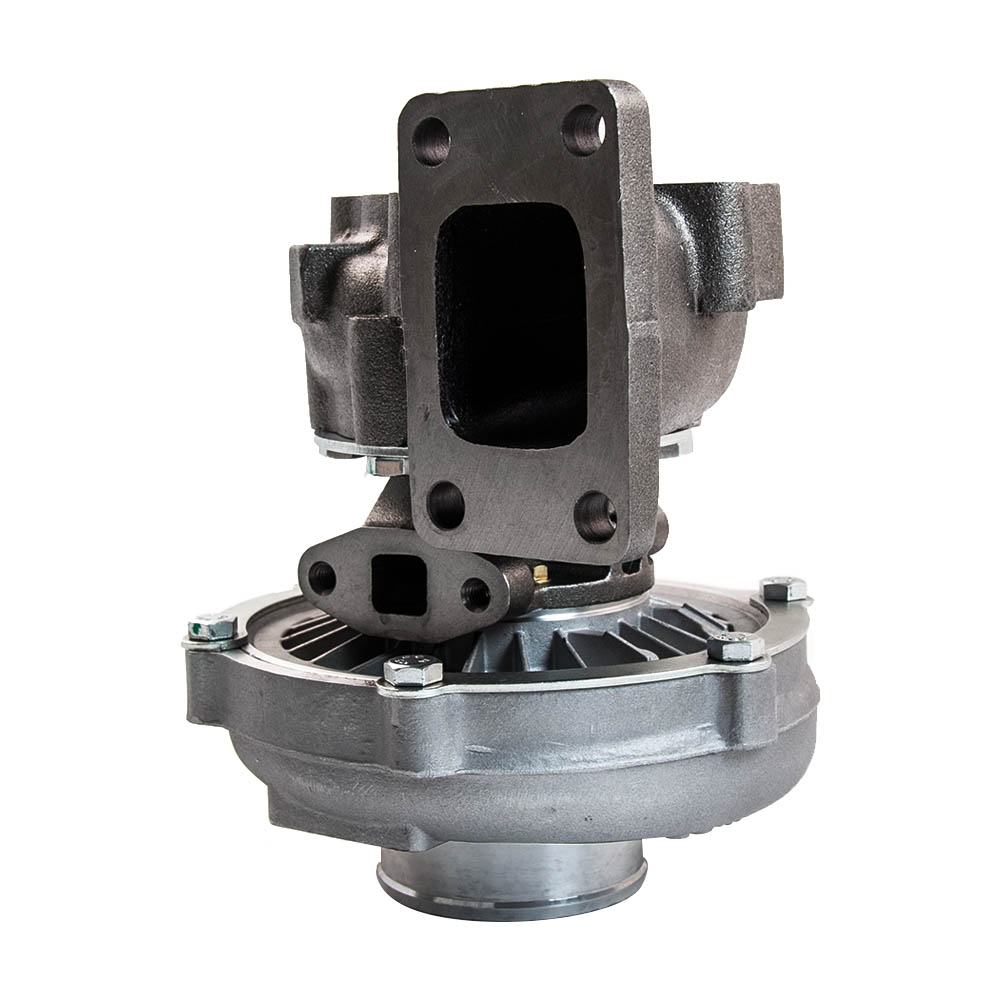

Exhaust (Turbo Manifold) Flange:  T3 T4 4 bolt Flange Patterns

Exhaust Flange:  Standard T3 5 bolt flange pattern

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing/Floating Bearing

Thrust Bearing: 270 degrees

Horse Power: Up to 400 HP

Wastegate: W/O Wastegate

Actuator Type: W/O Actuator

Oil Inlet: M12*1.25

Oil Outlet: 2*M8*1.25

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Condition: 100% Brand New

Accessories: You will get exactly as shown as picture above

Package Size: 27x 25x 24 cm

Package Weight: 7250g

Compressor:

Trim: 44

A/R: 0.5

Inducer: 50.5

Exducer: 76

Turbine:

Trim: 73

A/R: 0.63

Inducer: 65.5

Exducer: 55.9

Oil line

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

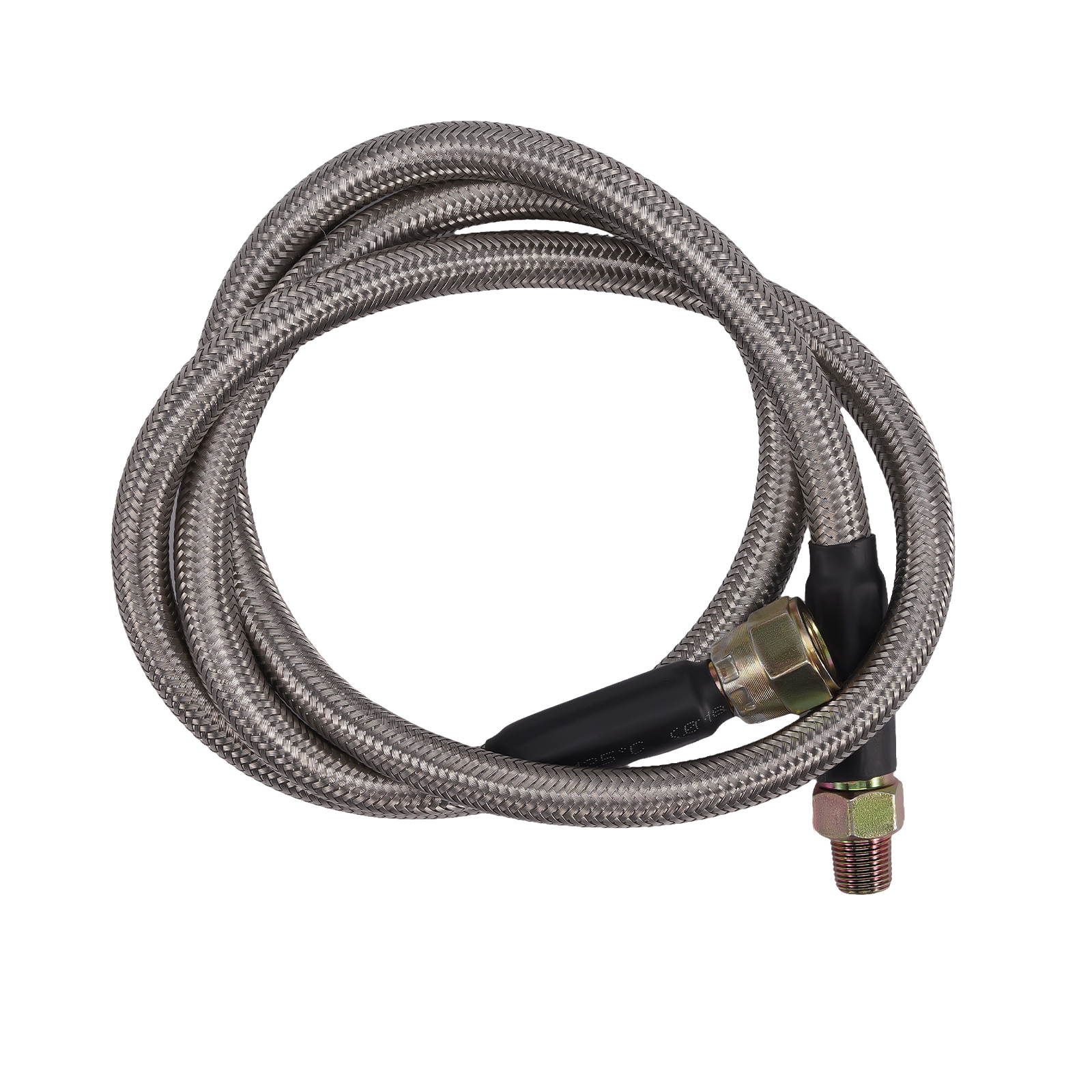

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Package included:

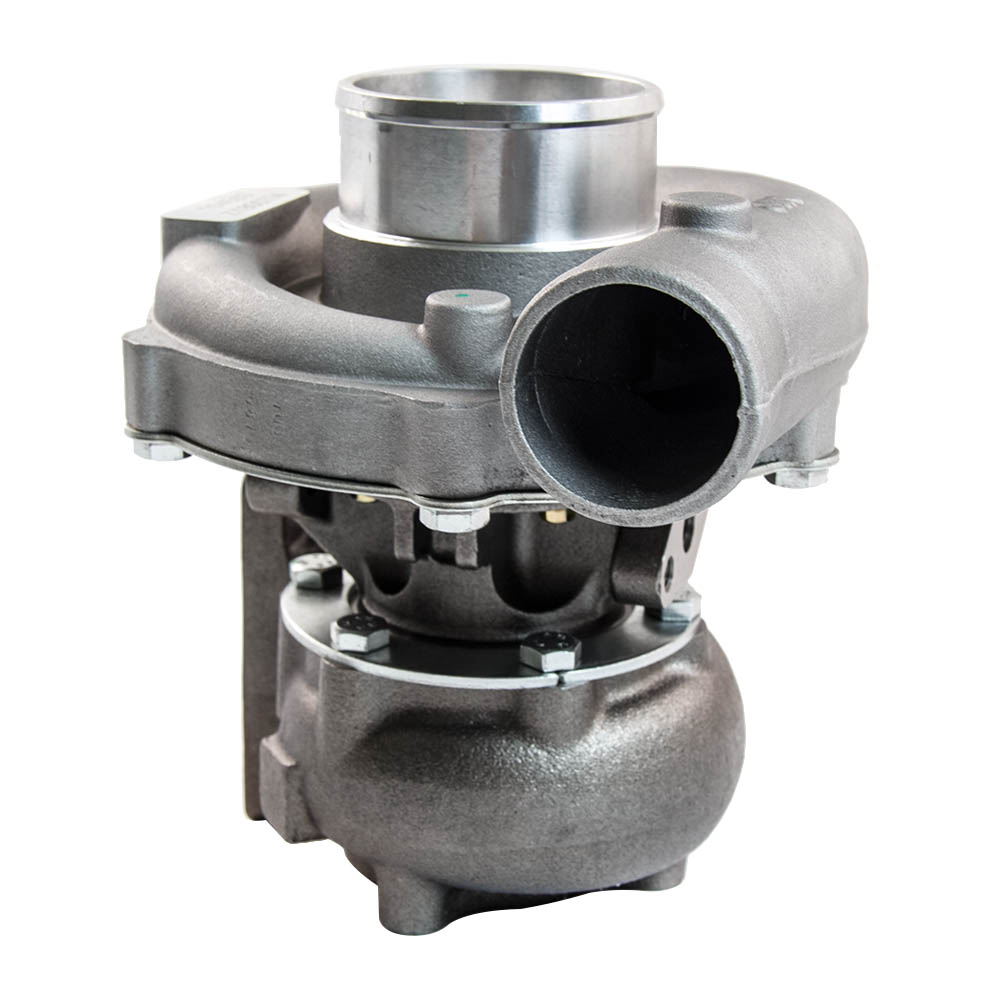

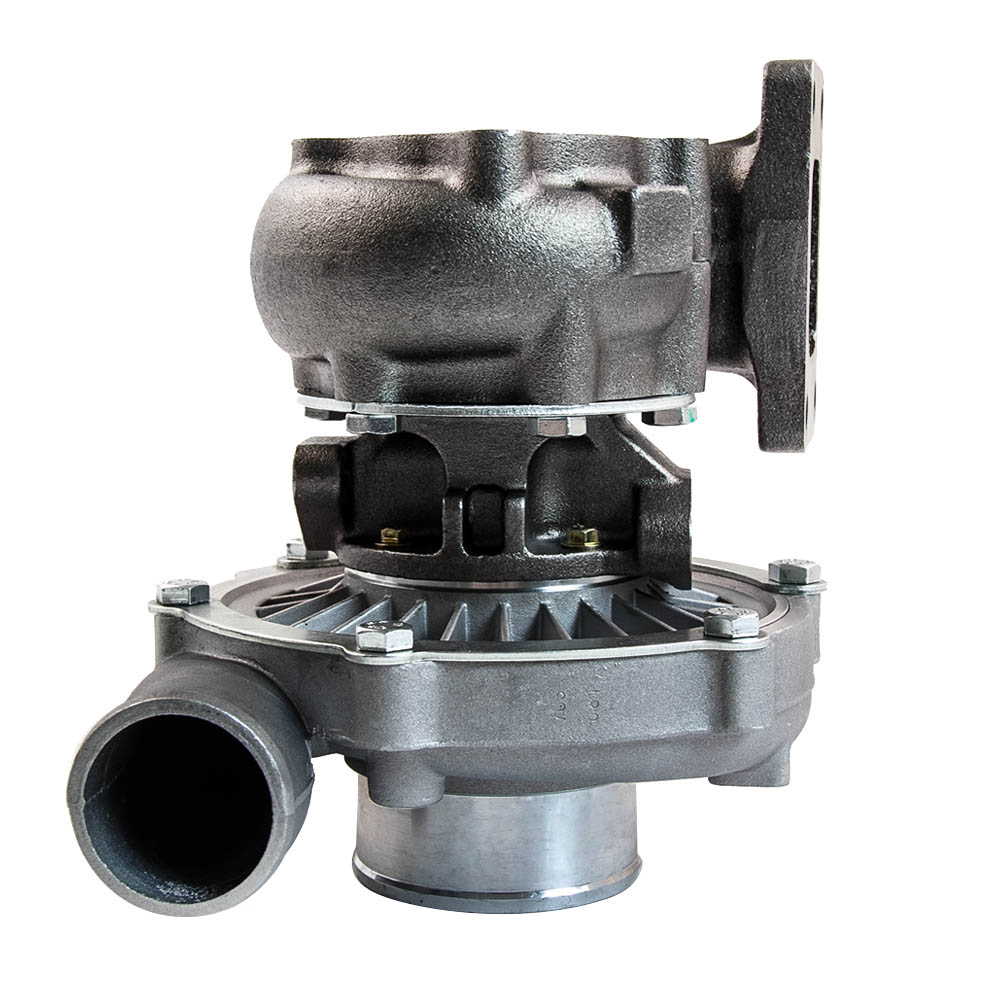

1x Turbocharger

1x Flange Gasket

2x Oil Port Gaskets

1x Oil return line

1x Oil feed line

Features:

Turbo

*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Oil lines

Easy to install and apply

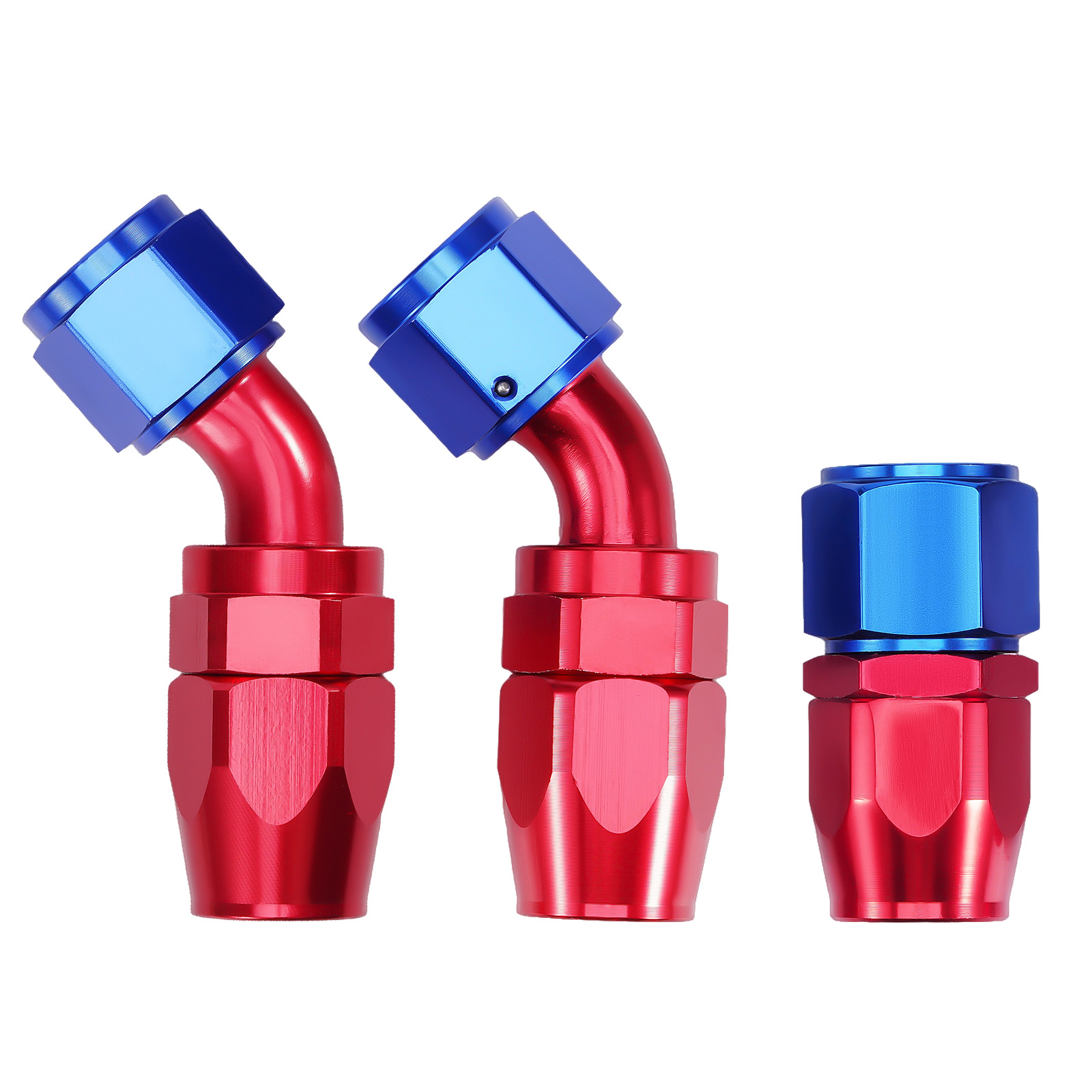

Complete kit for oil feed and drain return lines.Gasket,screws,washer all fittings are made with hight quality aluminum.

help circulate oil from the turbo charger to the oil pan

The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.

NOTE:

* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
