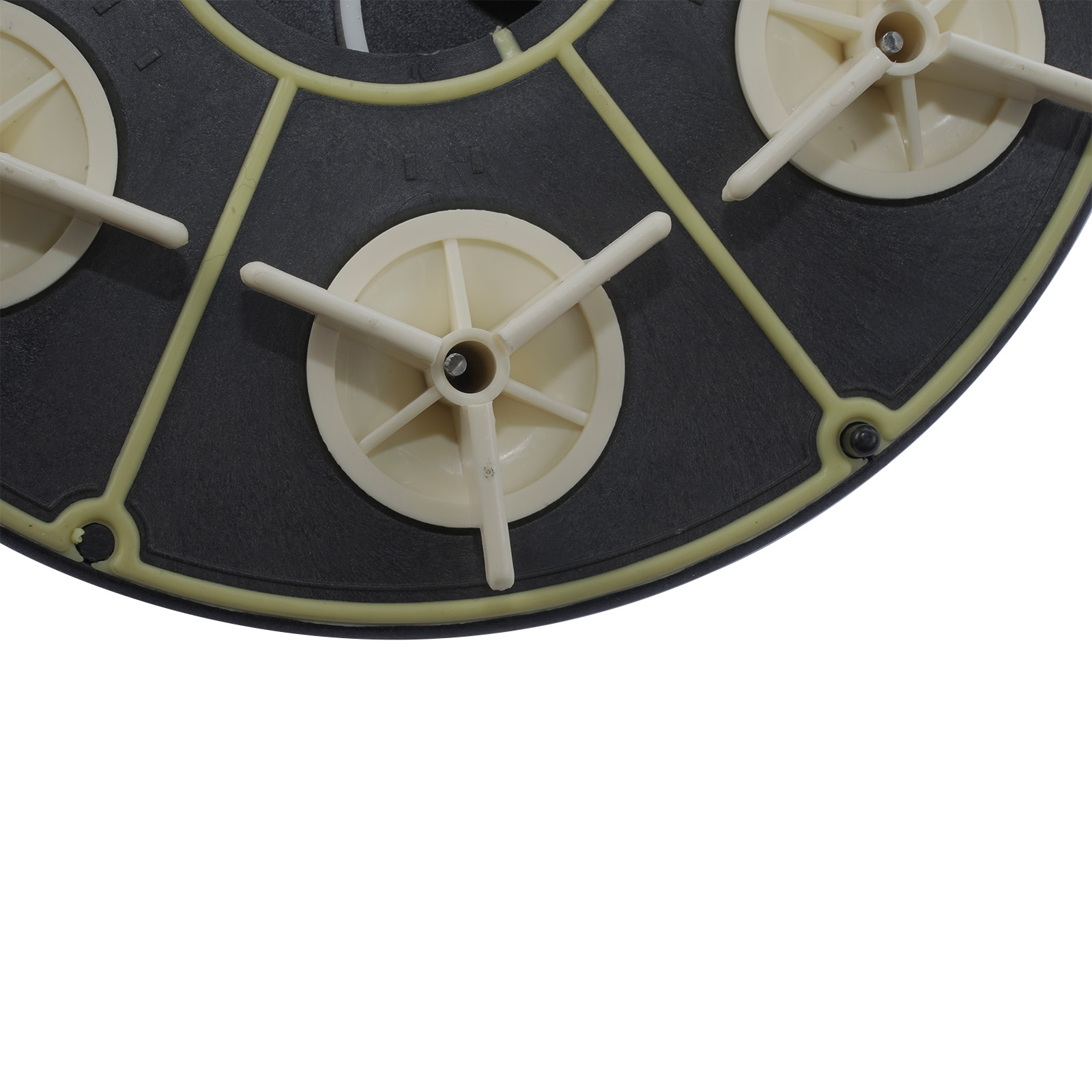

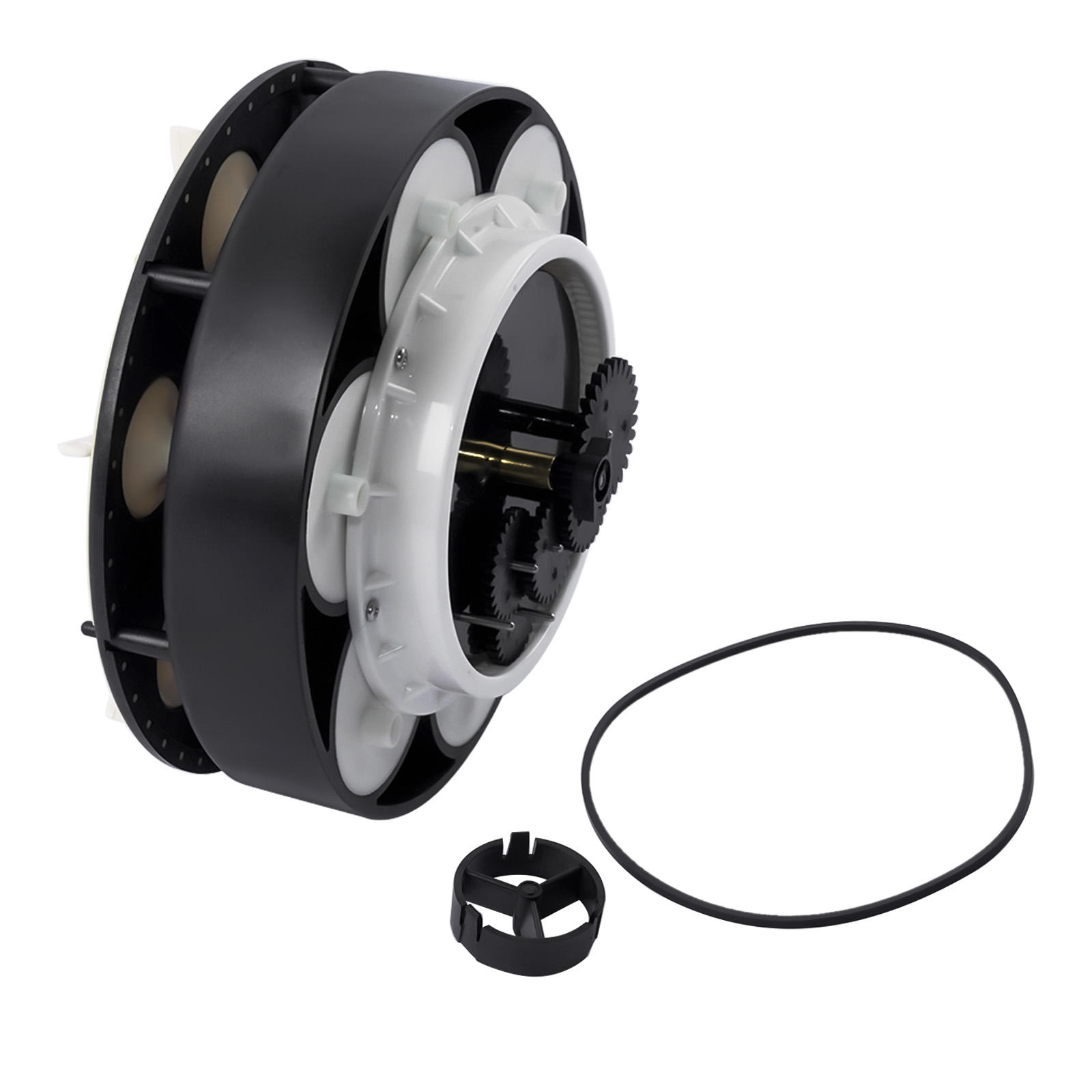

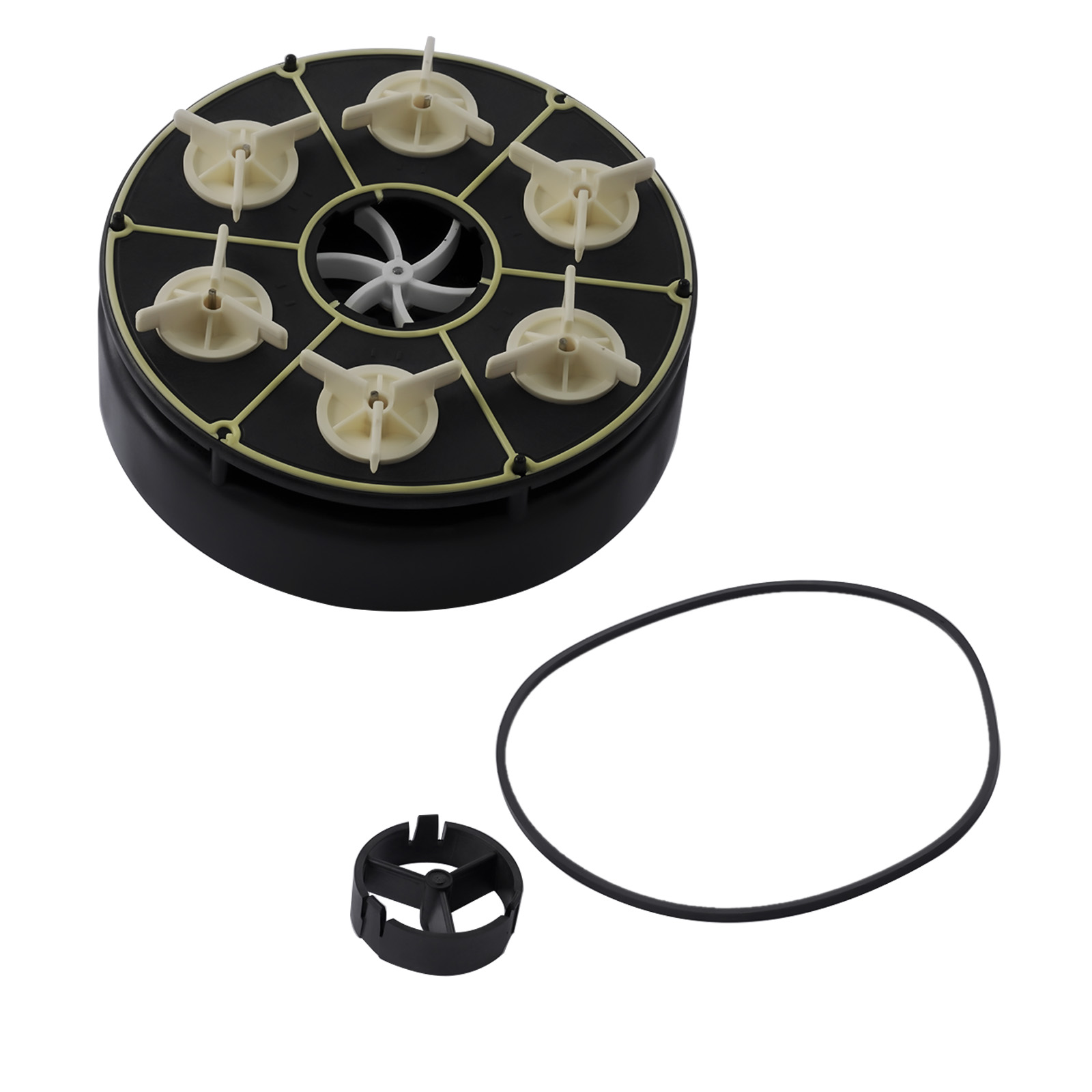

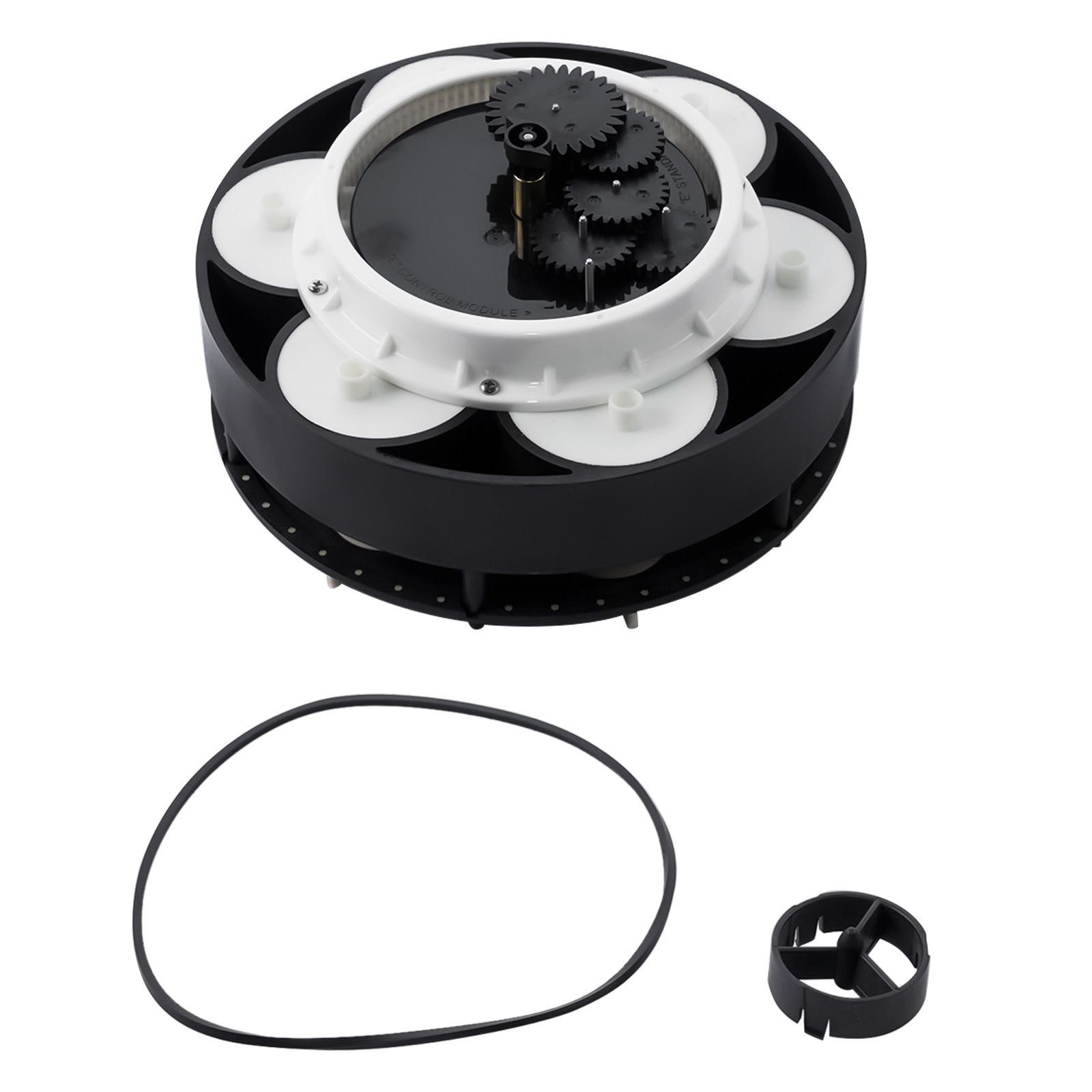

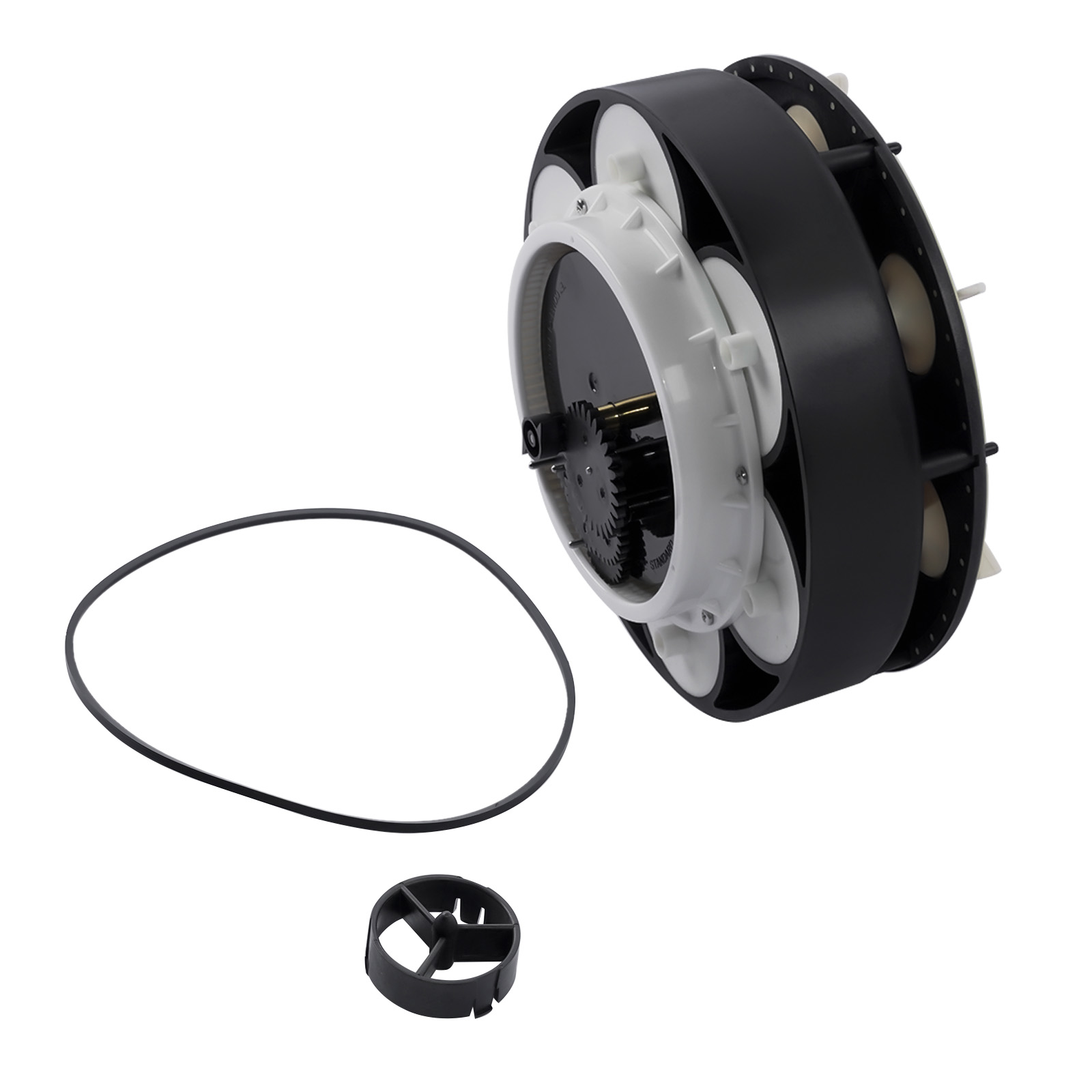

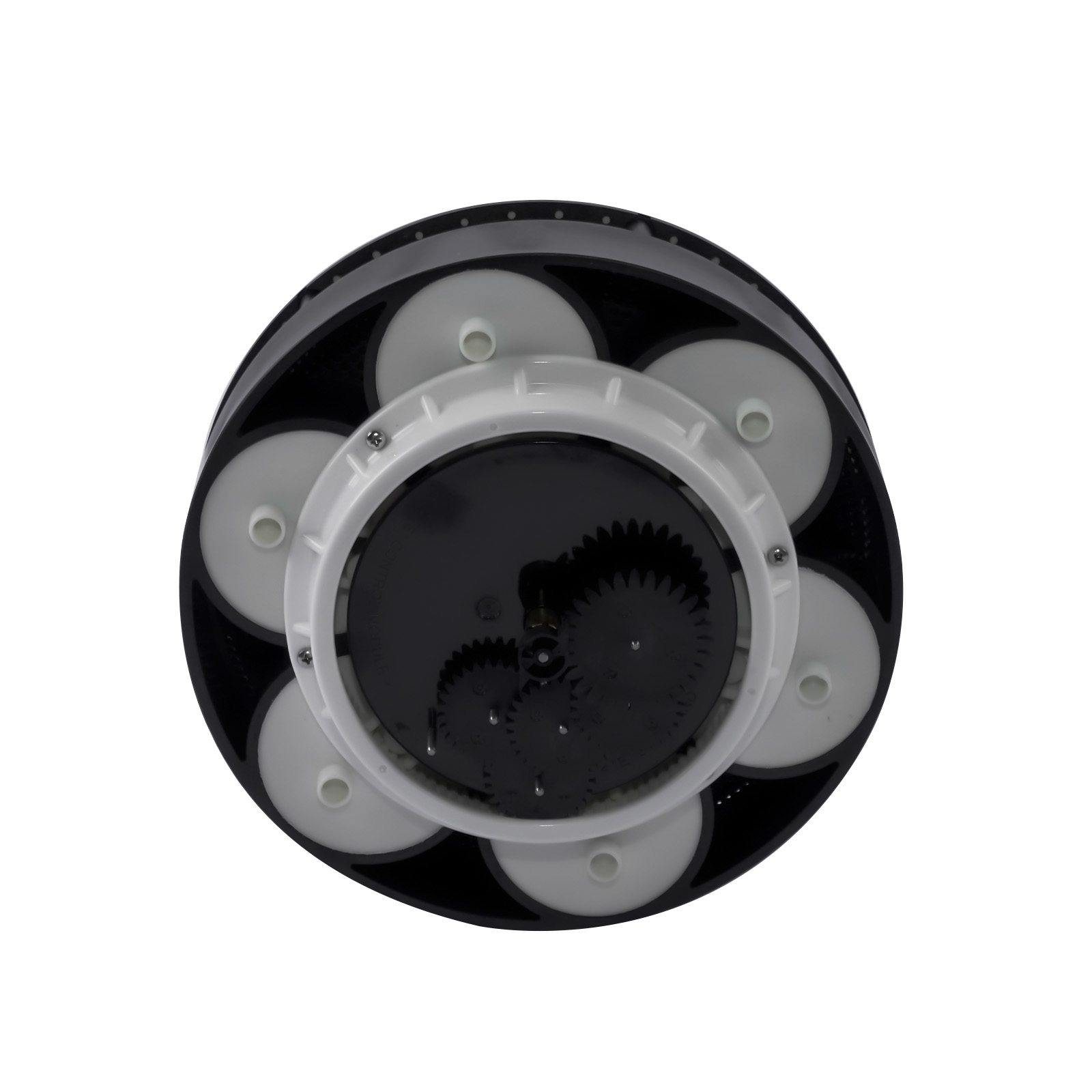

6-Port Module Kit W/Water Valve Shell O-Ring for Paramount #004302440800

OEM part number

004-302-4408-00, 004302440800, 005-302-0100-00, 005302010000

Fit for

Replacement for Paramount 6-Port Module Water Valve.
Replacement for the following systems: PCC 2000, Pool Valet, PV3, Cyclean, Vanquish, Paddock PCC 2000, Andrews Advantage PCC2000 and Vantage In-Floor Cleaning Systems.

Functions

Located in between the top dome and the base of the water valve, the 004-302-4408-00 6 Port Module is what helps distribute water to the nozzles throughout your pool, improving the circulation.

Module houses the cam plate and gear assembly.

Requires no electricity to operate and works automatically when the pump is running, lowering the heating costs.

It helps to the chemical costs and electrical consumption.

Material

The 6-Port Module is made of high-quality plastic, rubber, steel and copper.

With strong durability, corrosion resistance and anti-rust performance.

Easy Installation

First take off the band clamp and lift off the dome cover.

Pull straight up on the old 6-port module to remove it from the base unit.

And then install the new O-ring, making sure the channel is clean and free of debris.

Put the new module into the base, rotating if necessary to align and seat it properly.

Re-place the dome and the band clamp.

Package Included

004-302-4408-00 6 Port Module Water Valve

With Valve Shell O-Ring 005-302-0100-00.
