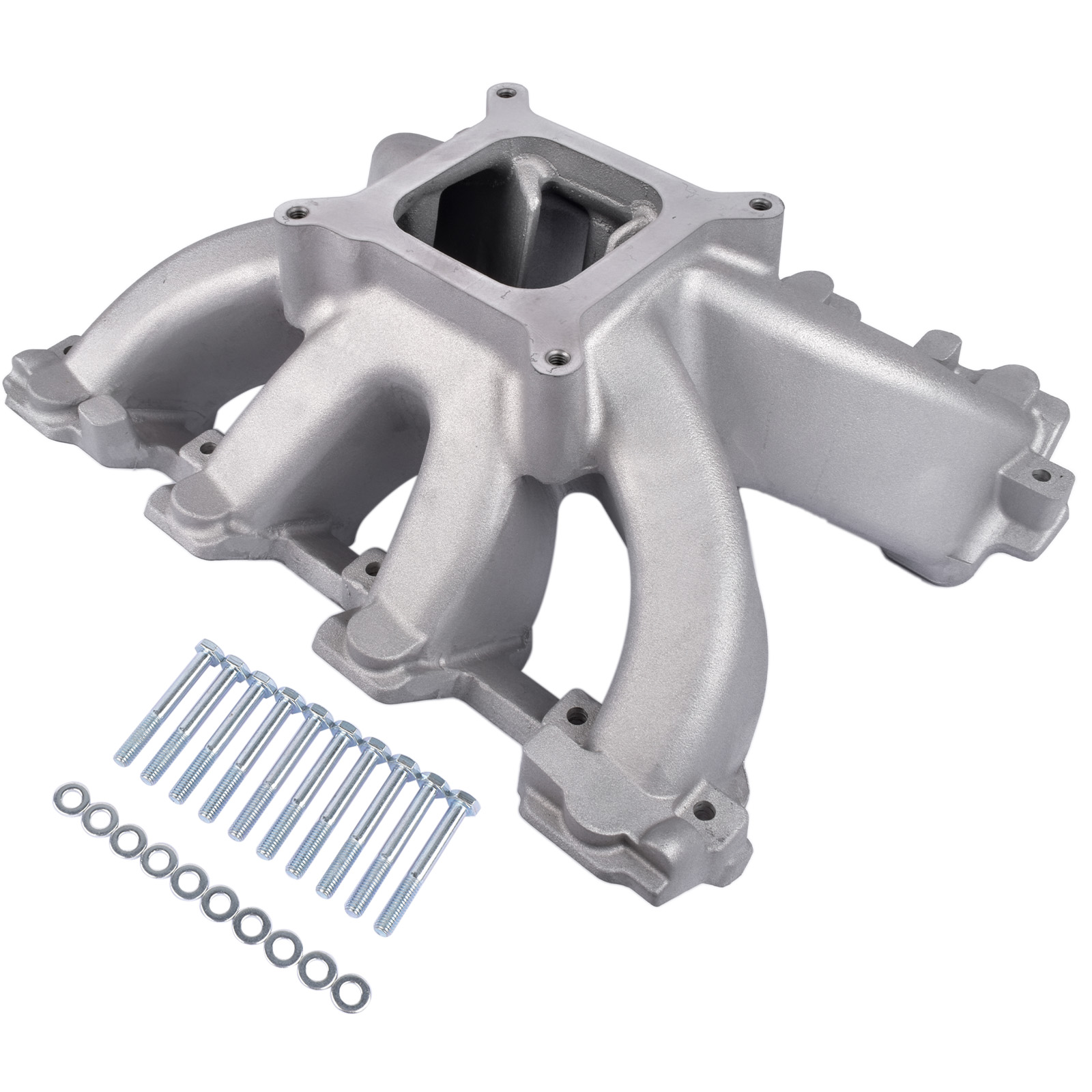

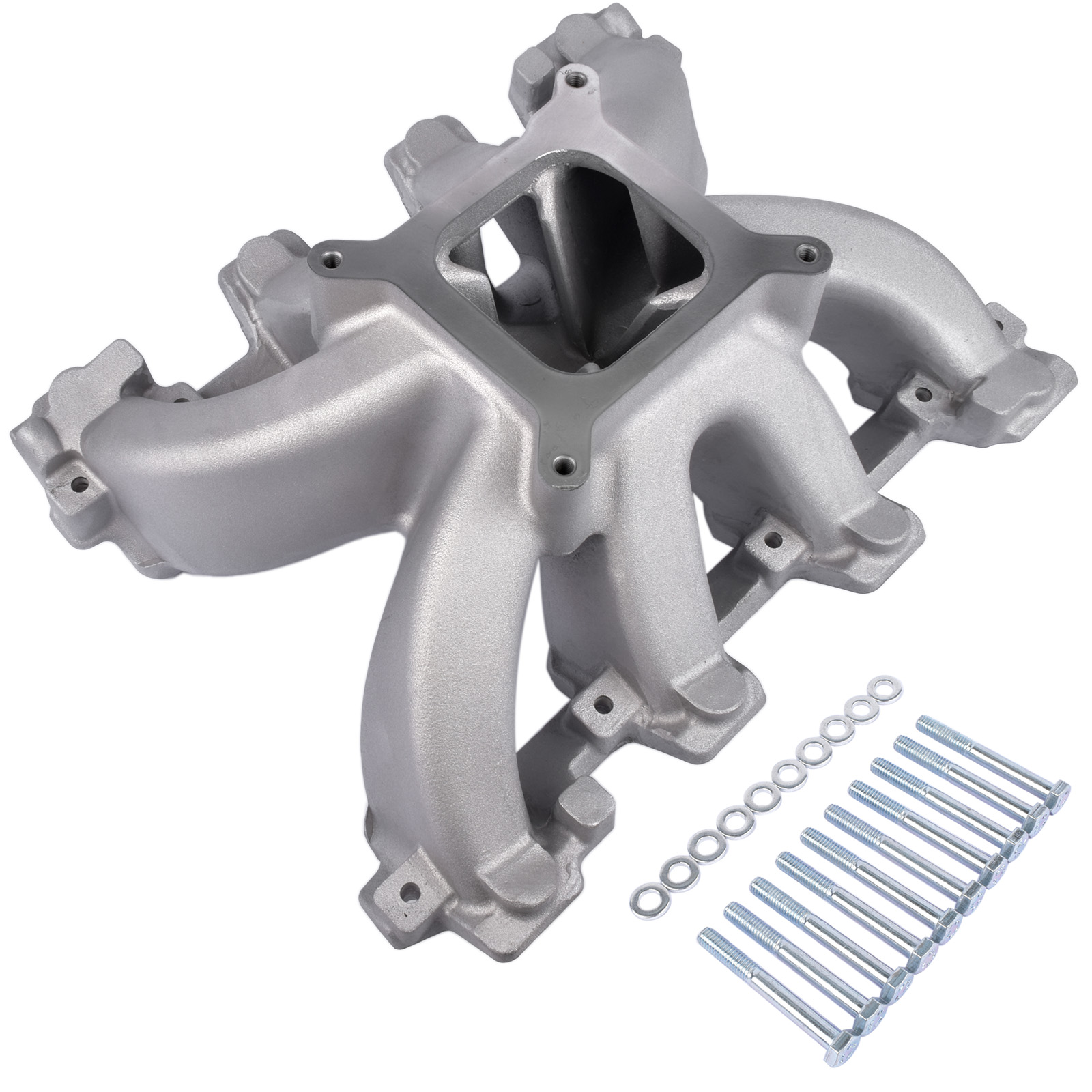

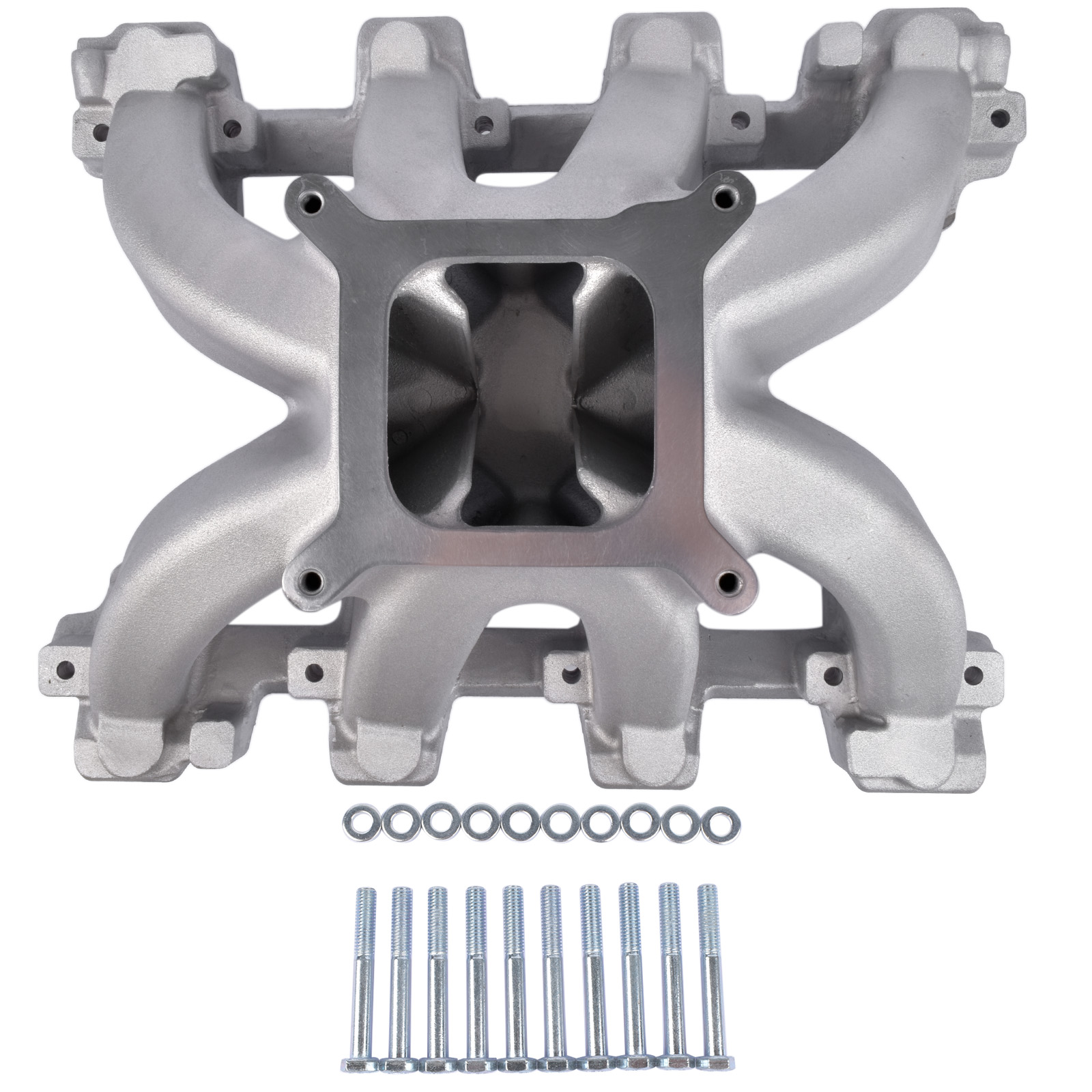

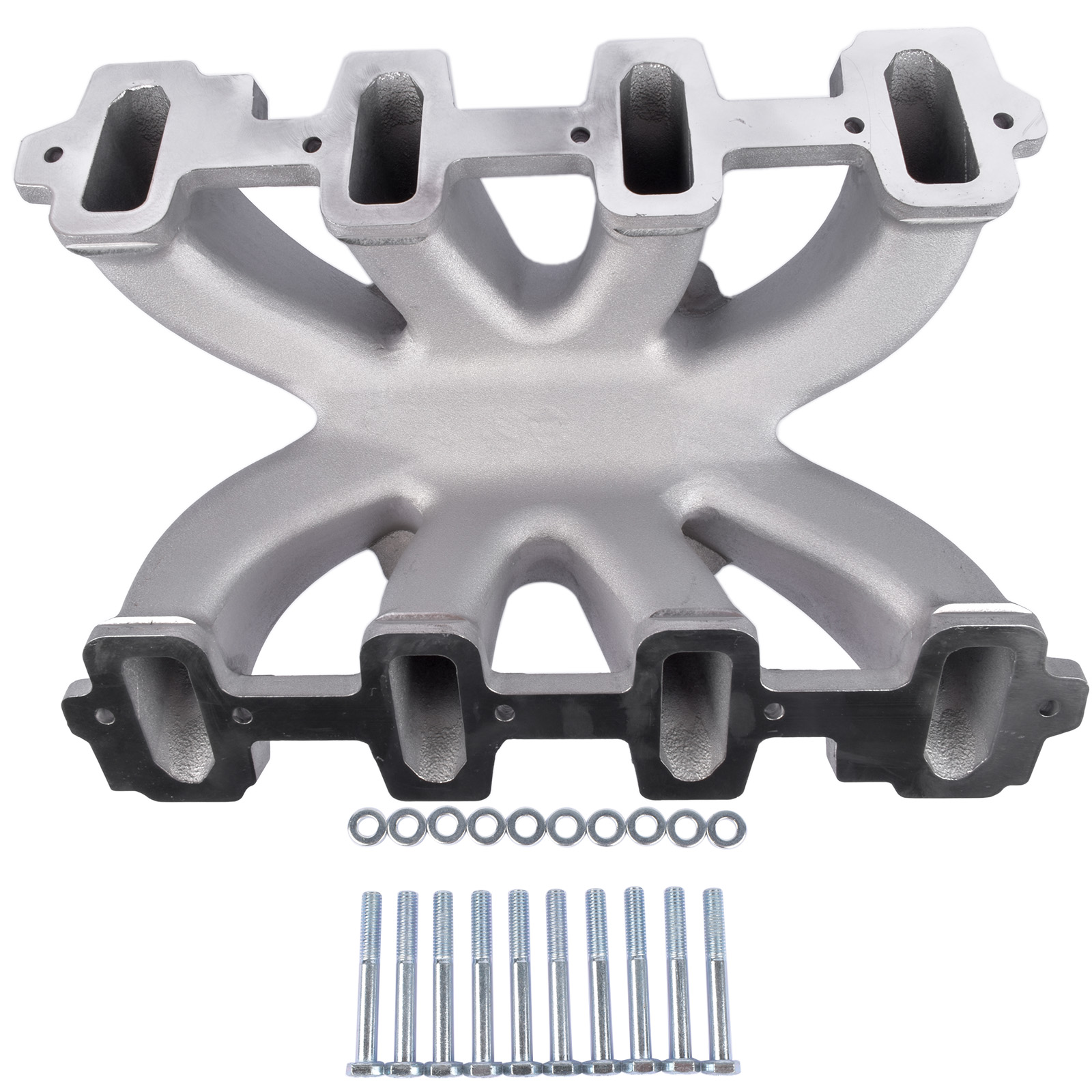

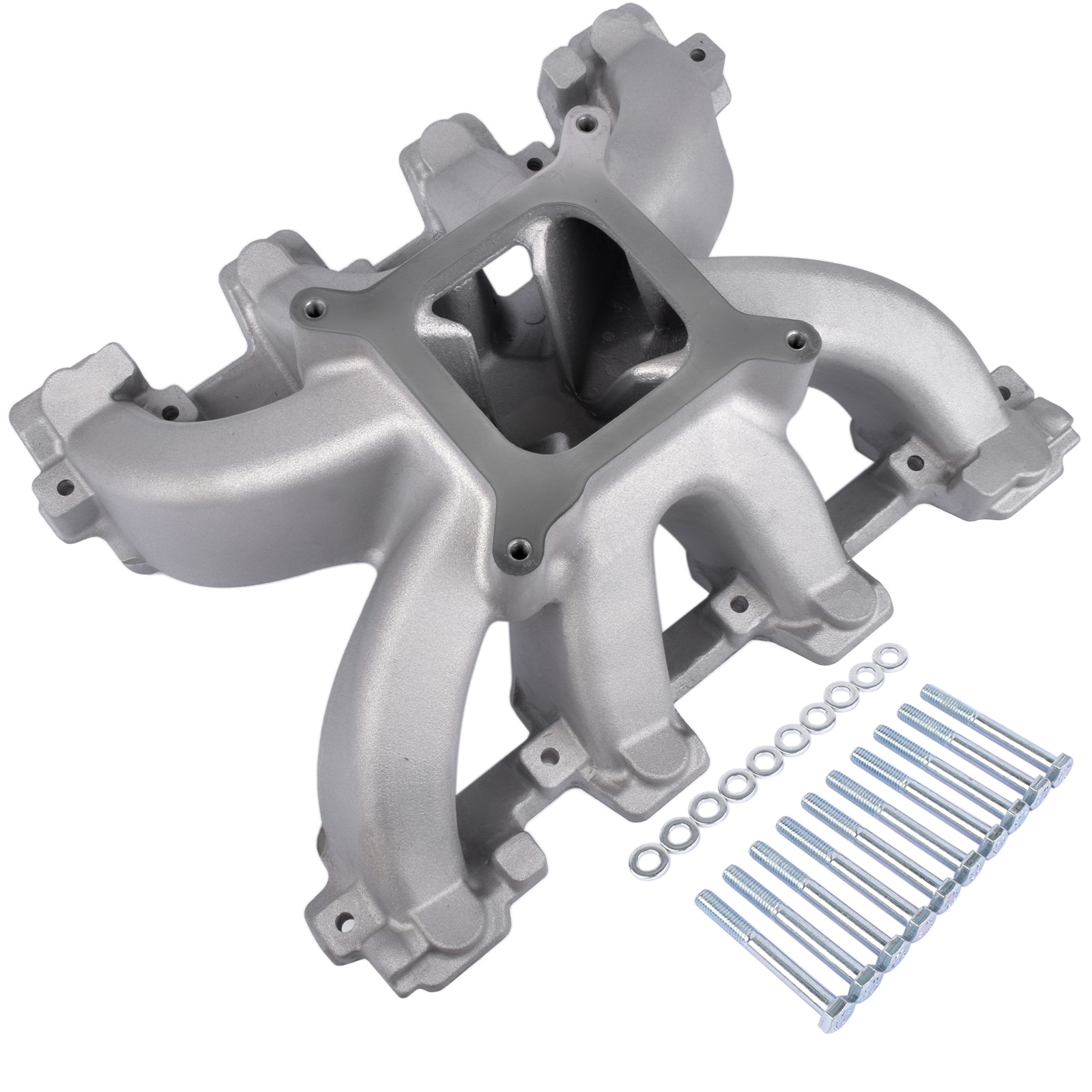

28097 Intake Manifold Single Plane Aluminum for GM Gen III/IV LS Engines with LS1/LS2/4.8/5.3/6.0L

OEM Part Number

28097

Fit For the Following Models

This fits Standard Deck Height GEN III/IV LS Engines with LS1/LS2/4.8/5.3/6.0 Cathedral Port Heads. Will NOT work on LS3/L92/L76 Heads.

Description
Gen III LS1/LS2
Part Type: Intake Manifolds, Carbureted
Intake Style: Single plane
Basic Operating RPM Range: 3,500-8,000
Intake Manifold Height: 6.070 in.
Intake Color: Natural
Intake Material: Aluminum

Installation Notes:
Carb Mount Pad is 1.12" taller than the Victor Jr. LS1
Carb Pad Height: 6.07"
Port exits Dimensions: 1.08" X 2.74"
Recommended Intake Gasket: Fel-Pro #1312-3

Package Includes:

1x Intake Manifold
